Toyota COROLLA — FRONT BUMPER & BUMPER STAY

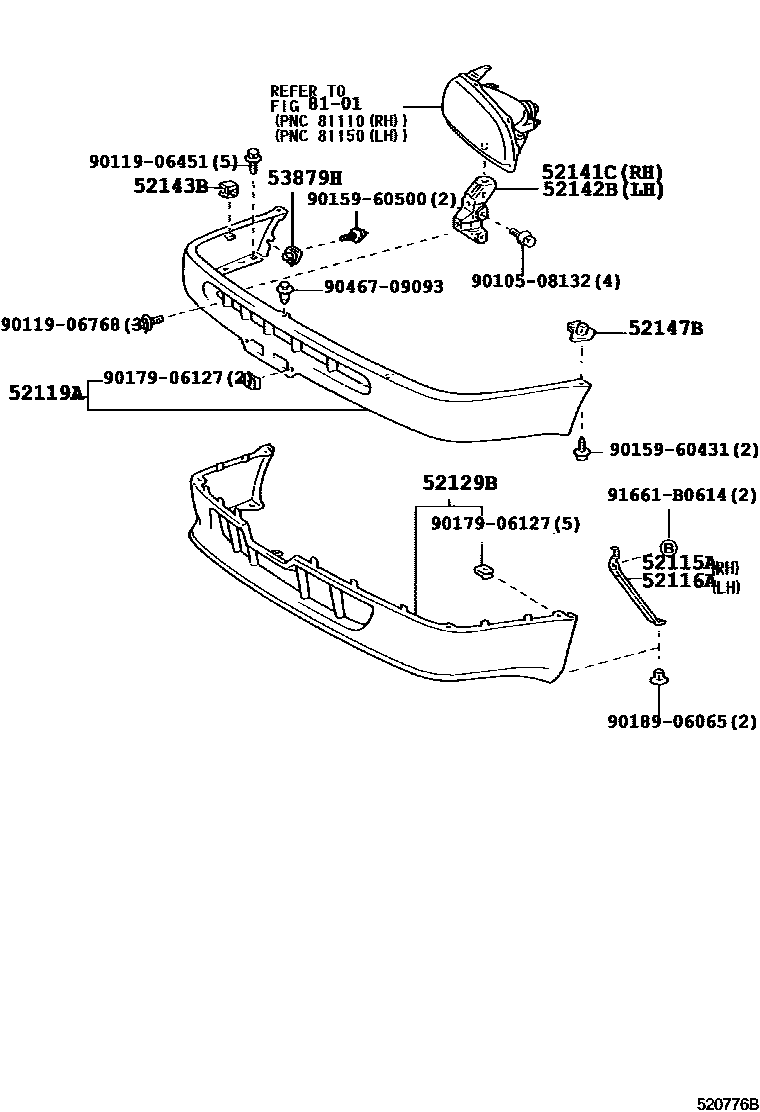

Parts diagram
52115ASUPPORT, FRONT BUMPER SIDE, RH
main52115-12320i199505-199704
52116ASUPPORT, FRONT BUMPER SIDE, LH
main52116-12290i199704-200008
52119ACOVER, FRONT BUMPER
main52119-1E330i199505-199704
main52119-1E430-B2i199605-199704
GRAY M.M,199
main52119-1E430-C0i199605-199704
SILVER M,040
main52119-1E430-E0i199605-199704
LT.GARYISH BEIGE ME,1A5
main52119-1E500-A0i199704-200008
SUPER WHITE 2,040
main52119-1E500-A1i200004-200008
main52119-1E500-B1i199704-200008
SILVER ME,199
main52119-1E500-B2i199704-200008
WARM GRAY PEARL ME.,1A5
main52119-1E500-B4i199704-200008
DK.GRAY ME.,1B4
main52119-1E500-B5i199804-200008
CRYSTAL SILVER PEARL,1C1
main52119-1E500-C0i199809-199810
BLACK ME.,205
main52119-1E500-D0i199704-199804
RED MM,3K4
main52119-1E500-G0i199704-200008
DK.GREEN M.M.,6P2
main52119-1E500-J0i199704-200008
DK.BLUE M.M.,8L2
52129BCOVER, FRONT BUMPER, LOWER
main52129-12030-A0i199704-199705
SUPER WHITE 2,040
main52129-12030-B0i199505-199704
WARM GRAY PEARL ME.,1A5
main52129-12030-B1i199505-199704
BL.GRAY ME,182
main52129-12030-B2i199605-199704
SILVER ME,199
main52129-12030-D0i199704-199705
RED MM,3K4
main52129-12030-G0i199704-199705
DK GREEN MICA,6M1
main52129-12030-G1i199505-199605
MD.GREEN M.M.,6P0
main52129-12030-J0i199505-199704
DK.BLUE M.M.,8L2
main52129-12040i199704-199705
52141CARM, FRONT BUMPER, RH
main52141-12420i199704-199705
52142BARM, FRONT BUMPER, LH
main52142-12350i199505-199704
52143BBRACKET, FRONT BUMPER SIDE
main52143-12340×2i199505-199704
52147BBRACKET, FRONT BUMPER MOUNTING
main52147-16080×2i199505-199704
53879HRETAINER, FRONT FENDER LINER
main53879-12010×2i199505-199704
8101HEADLAMP
→ Go to FIG 81-01
9010508132
main90105-08132
9011906451
main90119-06451
9011906768
main90119-06768
9015960431
main90159-60431
9015960500
main90159-60500
9017906127
main90179-06127
9018906065
main90189-06065
9046709093
main90467-09093
91661B0614
main91661-B0614

19 parts on this diagram · 2 diagrams in section

FRONT BUMPER & BUMPER STAY for Toyota COROLLA

This section contains 25 genuine Toyota parts for the FRONT BUMPER & BUMPER STAY system of the Toyota COROLLA. Key components include: ARM SUB-ASSY, FRONT BUMPER, RH, ARM SUB-ASSY, FRONT BUMPER, LH, SUPPORT, FRONT BUMPER SIDE, RH, SUPPORT, FRONT BUMPER SIDE, LH, COVER, FRONT BUMPER.
