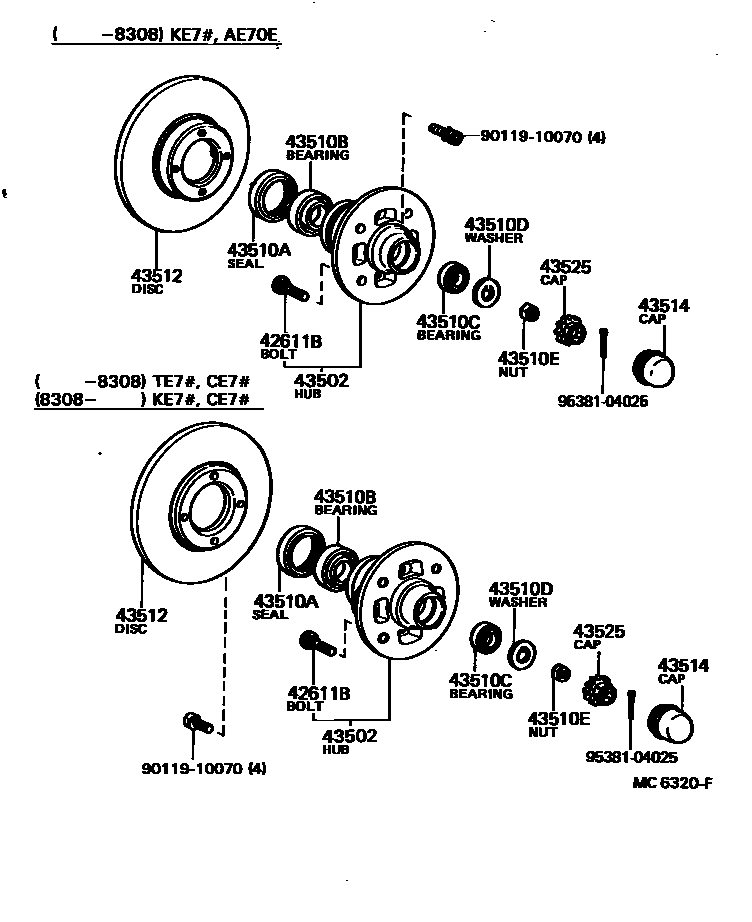

Toyota COROLLA — FRONT AXLE HUB

42611BBOLT, HUB (FOR FRONT AXLE)

main90942-02036×8i197903-198305

main90942-02048×8i198305-198707

43502HUB SUB-ASSY, FRONT AXLE

main43502-12040×2i197903-198308

main43502-12060×2i197903-198308

main43502-12070×2i198308-198707

43510ASEAL, OIL (FOR FRONT AXLE HUB)

main90311-41123×2i197903-198707

43510BBEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING)

main90368-29068×2i197903-198707

43510CBEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING)

main90368-17017×2i197903-198707

43510DWASHER, CLAW (FOR STEERING KNUCKLE WASHER)

main90214-16010×2i197903-198707

43510ENUT (FOR STEERING KNUCKLE)

main90170-16137×2i197903-198707

43512DISC, FRONT

main43512-12070×2i197903-198308

main43512-12180×2i198308-198707

main43512-12190×2i198308-198707

main43512-20032×2i197903-198308

43514CAP, FRONT HUB GREASE

main43514-20010×2i197903-198707

43525CAP, FRONT WHEEL ADJUSTING LOCK

main43525-20011×2i197903-198707

9011910070

main90119-10070

9538104025

main95381-04025

12 parts on this diagram · 1 diagram in section

FRONT AXLE HUB for Toyota COROLLA

This section contains 12 genuine Toyota parts for the FRONT AXLE HUB system of the Toyota COROLLA. Key components include: BOLT, HUB (FOR FRONT AXLE), HUB SUB-ASSY, FRONT AXLE, SEAL, OIL (FOR FRONT AXLE HUB), BEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING), BEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING).
