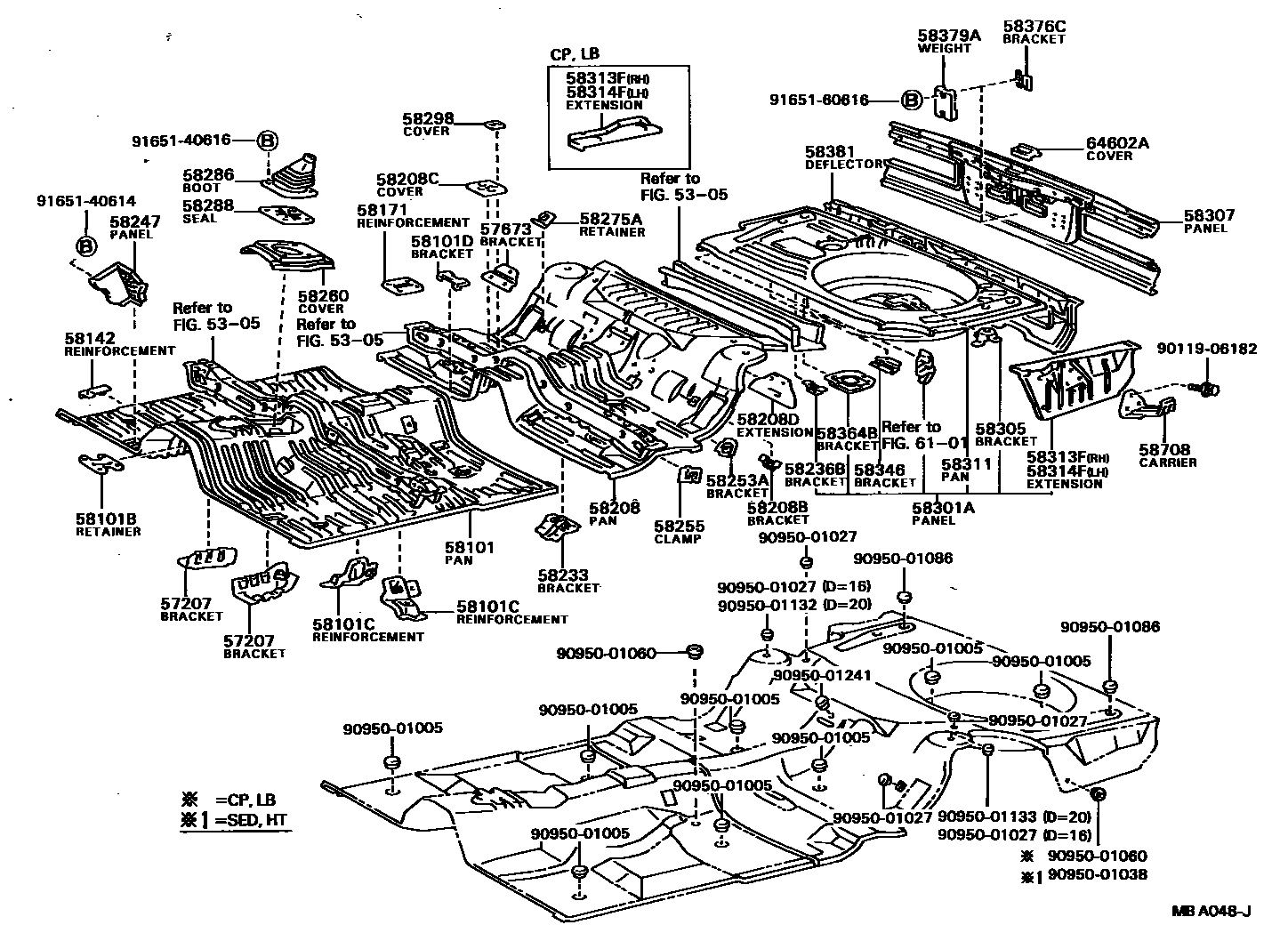

Toyota COROLLA — FLOOR PAN & LOWER BACK PANEL

0001 1 0002 1

5305

57207BRACKET SUB-ASSY, ENGINE REAR MOUNTING MEMBER

main57207-12030iAE70,KE7#,TE7#197903-198108

RH

main57207-12050iAE70,CE7#,KE7#,TE7#198108-198707

RH

main57208-12040iAE70,KE7#,TE7#197903-198108

LH

main57208-12060iAE70,CE7#,KE7#,TE7#198108-198707

LH

57673BRACKET, REAR SEATBACK HINGE MOUNTING

main57673-12020iAE70,KE70,TE71..CP,HT,LB198108-198304

58101PAN SUB-ASSY, FRONT FLOOR

main58111-12140iAE70,CE7#,KE7#,TE7#197903-198707

58101BRETAINER, CONSOLE BOX MOUNTING

main58164-12010iAE70,CE7#,KE7#,TE7#197903-198707

58101CREINFORCEMENT SUB-ASSY, DRIVE SHAFT SUPPORT

main58205-12020iAE70,CE7#,KE7#,TE7#197903-198707

RH

main58206-12020iAE70,CE7#,KE7#,TE7#197903-198707

LH

58101DBRACKET, PARKING BRAKE CABLE GUIDE

main58264-12020iAE70,CE7#,KE7#,TE7#197903-198707

58142REINFORCEMENT, FLOOR SIDE MEMBER TO FLOOR PAN

main58141-16010×2iAE70,CE7#,KE7#,TE7#197903-198707

58171REINFORCEMENT, PARKING BRAKE BASE

main58171-12040iAE70,CE7#,KE7#,TE7#197903-198707

58208PAN, CENTER FLOOR

main58211-12090iAE70,KE70,TE70,71197903-198109

main58211-12130iAE70,CE70,KE70,TE71198109-198304

main58211-13060iCE71,72,KE71,72,73,74,TE73,74197908-198707

58208BBRACKET, CENTER FLOOR HEAT INSULATOR

main58236-14010×3iAE70,CE7#,KE7#,TE7#197903-198707

58208CCOVER, CENTER FLOOR HOLE

main58285-12010iAE70,CE70,KE70,TE70,71197903-198304

58208DEXTENSION, CENTER FLOOR TO BRACE

main64227-12040iAE70,KE70,TE70,71..HT,SED197903-198108

58233BRACKET, EXHAUST PIPE MOUNTING

main58233-12010iAE70,CE70,KE70,TE70,71197903-198304

main58233-13020iCE71,72,KE71,72,73,74,TE73,74197908-198707

58236BBRACKET, CENTER FLOOR HEAT INSULATOR

main58236-14010×3iAE70,CE70,KE70,TE71198208-198304

58247PANEL, FOOTREST, INSIDE

main58190-12010iAE70,TE70,71..GT,LVN,SR198002-198108

main58191-12030iAE70,TE70,71..GT,LVN,SR197903-198002

main58191-12040iAE70,KE70,TE71..(GL,GT,LVN,LVS,SE,SR,SX)..2D198108-198304

58253ABRACKET, PARKING CABLE CLAMP

main58253-12030iTE71197903-198304

RH

main58253-13020iCE71,72,KE71,72,73,74,TE73,74197908-198707

RH

main58254-12030iTE71197903-198304

LH

main58254-13020iCE71,72,KE71,72,73,74,TE73,74197908-198707

LH

58255CLAMP, PARKING BRAKE CABLE, NO.1

main58207-12040iAE70,CE70,KE70,TE70,71197903-198304

RH

main58208-12040iAE70,CE70,KE70,TE70,71197903-198304

LH

58260COVER ASSY, TRANSMISSION, FRONT

main58281-12010iAE70,CE7#,KE7#,TE7#..MTM197903-198707

main58281-12020iAE70,CE70,KE70,74,TE70,73,74..ATM197903-198707

58275ARETAINER, REAR SEATBACK TO CENTER FLOOR

main58275-12010×2iAE70,KE70,TE70,71..HT,SED197903-198108

58286BOOT, SHIFT & SELECT LEVER, NO.1

main58280-12070iAE70,TE71..GT,LVN,SE,SR197903-197908

main58280-12080-01iKE71,TE73..4F..GL197908-198108

BLACK,BLACK,TRIM2#

main58280-12080-04iAE70,KE70,TE71..(CP,HT,LB)..MTM198108-198304

BLUE,BLUE,TRIM8#

main58280-12080-05iAE70,KE70..SED..MTM..GL197903-197908

BEIGE,BEIGE,TRIM4#

main58280-12080-06iAE70,KE70..(CP,HT,LB)..MTM..(GL,SL)197903-197908

DARK BROWN,BROWN,TRIM4#

main58280-12090iAE70,CE71,KE7#,TE74..(SED,V,WG)..MTM..(CTD,DX,STD)198108-198308

58288SEAL, SHIFT LEVER BOOT

main58288-12050iAE70,TE7#..MTM197903-198308

main58288-12060iKE7#197903-198308

main58288-12070iCE7#..5F198202-198707

58298COVER, CENTER FLOOR HOLE, NO.2

main58298-12010iAE70,CE70,KE70,TE71198108-198304

58301APANEL SUB-ASSY, REAR FLOOR

main58301-12060iAE70,KE70,TE70,71..SED197903-198102

sub61645-12050

sub90189-04002

sub93560-54014

main58301-12080iAE70,KE70,TE70,71..HT197903-198101

sub61645-12050

sub90189-04002

sub93560-54014

main58301-12100iAE70,KE70,TE70,71..CP,LB197903-198102

sub90189-04002

sub93560-54012

sub93560-54014

main58301-12110iAE70,KE70,TE70,71..SED198102-198208

sub61645-12050

sub90189-04002

sub93560-54014

main58301-12140iCE70198202-198208

sub61645-12050

sub90189-04002

sub93560-54012

sub93560-54014

main58301-12150iAE70,KE70,TE70,71..CP,LB198102-198208

sub90189-04002

sub93560-54012

sub93560-54014

main58301-12160iAE70,KE70,TE70,71..HT198101-198208

sub61645-12050

sub90189-04002

sub93560-54014

main58301-13090iCE71,KE72..2D..02S198108-198707

main58301-13100iCE71,KE72..4D..02S198608-198707

58305BRACKET SUB-ASSY, SPARE WHEEL CLAMP

main58305-10011iAE70,CE70,KE70,TE70,71197903-198304

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-12340iAE70,KE70,TE70,71..SED197903-198301

main58307-12380iAE70,KE70,TE70,71..HT197903-198304

main58307-12480iAE70,KE70,TE70,71..CP197903-198304

main58307-12500iAE70,KE70,TE70,71..LB197903-198304

main58307-12670iCE70198202-198301

main58307-13070iCE71,72,KE71,72,73,74,TE73,74197908-198707

58311PAN, REAR FLOOR

main58311-12150iAE70,CE70,KE70,TE71198208-198304

main58311-13060iCE71,72,KE71,72,73,74,TE73,74197908-198707

58313FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, RH

main58313-12060iAE70,KE70,TE70,71..SED197903-197911

main58313-12080iAE70,CE70,KE70,TE70,71..SED197911-198304

main58313-12090iAE70,KE70,TE70,71..CP,LB197903-198304

main58313-12130iAE70,KE70,TE70,71..HT197903-198304

main58313-13070iCE71,KE71,72,73,TE73,74197908-198207

sub90480-79001

sub90480-79002

main58313-13071iCE71,72,KE72,73,74,TE74198207-198707

58314FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, LH

main58303-12010iAE70,KE70,TE70,71..SED197903-197911

main58303-12030iAE70,CE70,KE70,TE70,71..SED197911-198304

main58303-12040iAE70,KE70,TE70,71..HT197903-198304

main58314-12090iAE70,KE70,TE70,71..CP,LB197903-198304

main58314-13070iCE71,72,KE71,72,73,74,TE73,74197908-198707

58346BRACKET, REAR FLOOR HEAT INSULATOR

main58236-14010iCE71,72,KE71,72,73,74,TE73,74197908-198707

main58345-14010iAE70,CE70,KE70,TE71198208-198304

sub58345-14020

58364BBRACKET, FUEL TANK SUPPORT

main58364-12010iAE70,CE70,KE70,TE71198208-198304

58376CBRACKET, LOWER BACK PANEL WEIGHT

main58376-12020iCE70198202-198304

58379AWEIGHT, LOWER BACK PANEL DAMPER

main58379-12010iCE70198202-198304

58381DEFLECTOR, REAR BUMPER STONE

main58308-12040iAE70,KE70..SED197903-198108

main58308-12050iAE70,CE70,KE70,TE70,71..SED..(DX,GL,GT,SE,SX)197903-198304

W/URETHANE BUMPER

main58308-12060iAE70,CE70,KE70..SED198108-198304

main58308-12070iAE70,KE70..CP,HT,LB197903-198108

main58308-12080iAE70,KE70,TE70,71..CP,HT,LB197903-198304

W/URETHANE BUMPER

main58308-12100iAE70,KE70,TE71..(CP,HT,LB)..(DX,GL,LVS,SE,SR,SX)198108-198304

main58308-13050iCE71,72,KE71,72,73,74,TE73,74197908-198707

58708CARRIER SUB-ASSY, JACK

main58709-13020iCE71,72,KE71,72,73,74,TE73,74197908-198707

main58791-12050iAE70,CE70,KE70,TE70,71..HT,SED197903-198304

6101

64602ACOVER, LUGGAGE COMPARTMENT DOOR STRIKER

main64749-12010iAE70,CE70,KE70,TE70,71..HT,SED197903-198304

9011906182

main90119-06182

9095001005

main90950-01005

9095001027

main90950-01027

9095001038

main90950-01038

9095001060

main90950-01060

9095001086

main90950-01086

9095001132

main90950-01132

9095001133

main90950-01133

9095001241

main90950-01241

9165140614

main91651-40614

9165140616

main91651-40616

9165160616

main91651-60616

49 parts on this diagram · 2 diagrams in section
