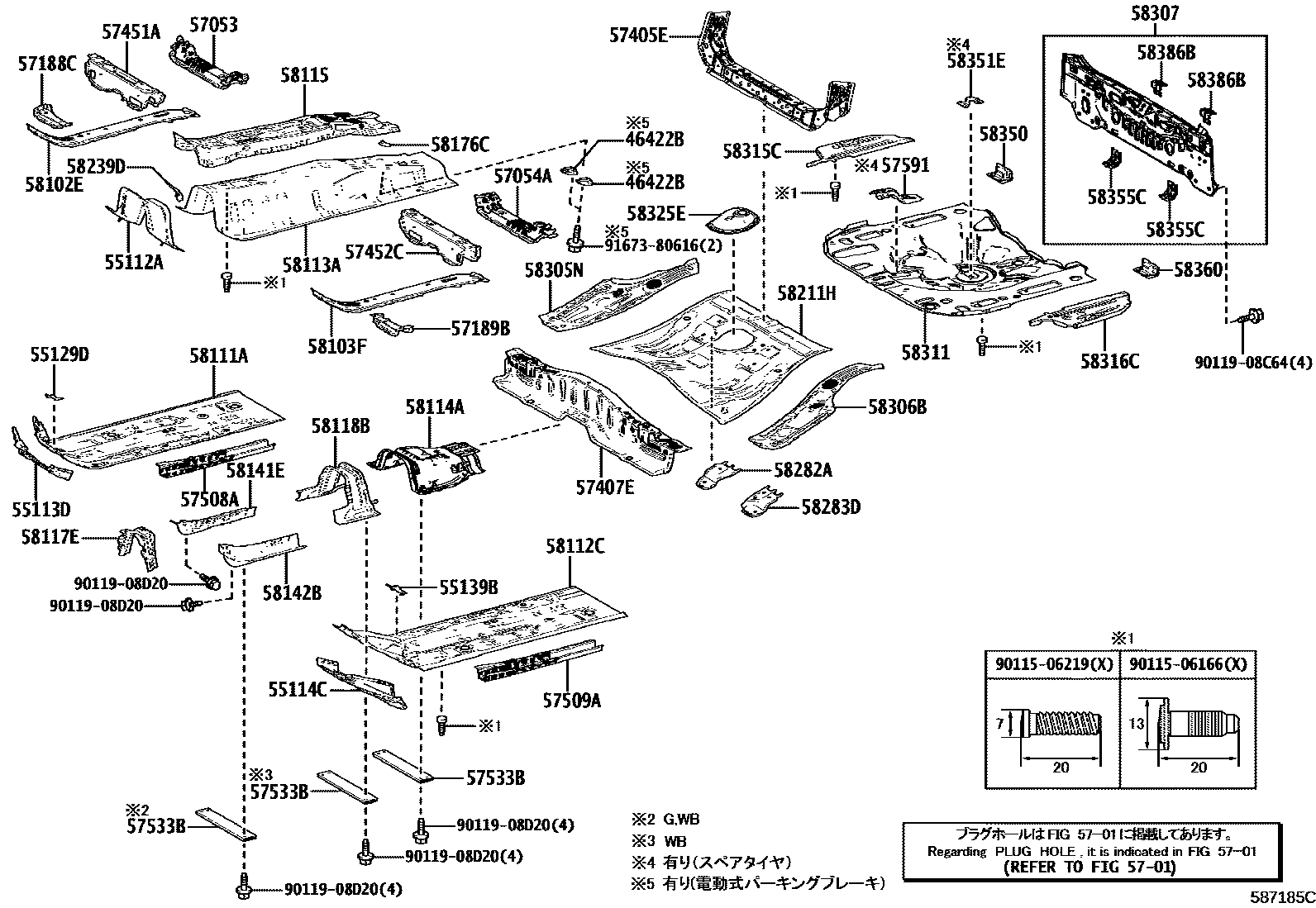

Toyota COROLLA — FLOOR PAN & LOWER BACK PANEL

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1

46422BCAP, PARKING BRAKE CABLE, CASING

main46422-12011×2iNRE210,ZRE212,ZWE21#..HBDGX,HBDS,HBDWB,S,WB201908-202001

55112APANEL, DASH, NO.2

main55112-47040iMZEA17202210-202504

55113DPANEL, DASH, LOWER RH

main55113-47020iMZEA12,NRE210,ZRE212,ZWE211,214201908-202008

main55113-47021iMZEA12,NRE210,ZRE212,ZWE211,214202009

55114CPANEL, DASH, LOWER LH

main55114-47050iMZEA12,NRE210,ZRE212,ZWE211,214201908

55129DCOVER, DASH PANEL HOLE, RH

main55129-47021iMZEA12,NRE210,ZRE212,ZWE211,214201908

55139BCOVER, DASH PANEL HOLE, LH

main55139-47021iMZEA12,NRE210,ZRE212,ZWE211,214201908

5701

57053REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, RH

main57053-12041iMZEA12,NRE210,ZRE212,ZWE211,214201908

57054AREINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, LH

main57054-12061iZWE215,219202210

57188CREINFORCEMENT, FRONT SIDE MEMBER EXTENSION, RH

main57188-47030iMZEA17202210-202504

57189BREINFORCEMENT, FRONT SIDE MEMBER EXTENSION, LH

main57189-47020iMZEA12,NRE210,ZRE212,ZWE211,214201908

57405EMEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.2

main57405-12060iMZEA12,NRE210,ZRE212,ZWE211,214201908

57407EMEMBER SUB-ASSY, CENTER FLOOR CROSS

main57407-10070iMZEA12,NRE210,ZRE212201908

main57407-47020iZWE21#201908-202004

main57407-47021iZWE215,219202210

57451AMEMBER, FRONT FLOOR CROSS, RH

main57451-47040iMZEA12,NRE210,ZRE212,ZWE211,214201908

57452CMEMBER, FRONT FLOOR CROSS, LH

main57452-47010iMZEA12,NRE210,ZRE212,ZWE211,214201908

57508AREINFORCEMENT SUB-ASSY, FRONT FLOOR, RH

main57508-10010iMZEA12,NRE210,ZRE212,ZWE211,214201908

57509AREINFORCEMENT SUB-ASSY, FRONT FLOOR, LH

main57508-10010iMZEA12,NRE210,ZRE212,ZWE211,214201908

57533BBRACE, FRONT FLOOR, CENTER

main57533-47030×2iMZEA17..X202210-202504

57591BRACKET, VOLTAGE CONVERTER MOUNT, LOWER FRONT

main57591-12020iNRE210,ZRE212,ZWE211..SED201908

main57591-47010iZWE214..WG201909

58102EREINFORCEMENT SUB-ASSY, FRONT FLOOR, RH

main58102-47020iMZEA17202210-202504

58103FREINFORCEMENT SUB-ASSY, FRONT FLOOR, LH

main58102-47020iMZEA12,NRE210,ZRE212,ZWE211,214201908

58111APAN, FRONT FLOOR, RH

main58111-10200iNRE210,ZRE212,ZWE21#201908-201909

main58111-10201iMZEA12,NRE210,ZRE212,ZWE211,214201910-202104

main58111-10210iMZEA12,NRE210,ZRE212,ZWE211,214202105

58112CPAN, FRONT FLOOR, LH

main58112-10040iNRE210,ZRE212,ZWE21#201908-201909

main58112-10041iMZEA12,NRE210,ZRE212,ZWE211,214201910-202104

main58112-10050iMZEA12,NRE210,ZRE212,ZWE211,214202105

58113APANEL, FRONT FLOOR, CENTER

main58113-10080supersedes 58113-12080iZWE215,219202210

main58113-12080iNRE210,ZRE212,ZWE21#..HBDGX,HBDS,HBDWB,S,WB201908-202001

58114AREINFORCEMENT, FRONT FLOOR PANEL

main58105-12010iMZEA12,NRE210,ZRE212,ZWE211,214201908

58115REINFORCEMENT, FRONT FLOOR PANEL, FRONT

main58015-47050iZWE215,219202210

58117EPANEL, FRONT FLOOR SUB COVER

main58117-47040iMZEA12,NRE210,ZRE212,ZWE211,214201908

58118BREINFORCEMENT, FRONT FLOOR PANEL, NO.2

main58118-47030iMZEA12,NRE210,ZRE212,ZWE211,214201908

58141EREINFORCEMENT, FRONT SIDE MEMBER TO FLOOR PAN, RH

main58141-47011iMZEA12,NRE210,ZRE212,ZWE211,214201908

58142BREINFORCEMNET, FRONT SIDE MEMBER TO FLOOR PAN, LH

main58142-47011iMZEA12,NRE210,ZRE212,ZWE211,214201908-202110

main58142-47012iMZEA12,NRE210,ZRE212,ZWE211,214202111

58176CREINFORCEMENT, PARKING BRAKE BASE, NO.2

main58176-12020iMZEA17..X202210-202504

58211HPAN, CENTER FLOOR

main58211-12800iMZEA12,NRE210,ZRE212201908

main58211-16110iMZEA17202210-202504

main58211-47100iZWE211,214201908

58239DBRACKET, CABLE CLAMP

main58239-12030iMZEA12,NRE210,ZRE212,ZWE211,214201908

58282ABASE, BELT ANCHOR TO FLOOR PAN, NO.3 RH

main58282-16070iMZEA17202210-202504

main58282-47050iMZEA12,NRE210,ZRE212,ZWE211,214201908

58283DBASE, BELT ANCHOR TO FLOOR PAN, NO.3 LH

main58283-16020iMZEA17202210-202504

main58283-47040iMZEA12,NRE210,ZRE212,ZWE211,214201908

58305NEXTENSION SUB-ASSY, REAR FLOOR TO QUARTER, RH

main58305-12060iMZEA12,NRE210,ZRE212201908

main58305-47051iZWE215,219202210

58306BEXTENSION SUB-ASSY, REAR FLOOR TO QUARTER, LH

main58306-12040iMZEA17202210-202504

main58306-47051iZWE215,219202210

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-12C80iNRE210,ZRE212,ZWE211,214..SED201908

main58307-12C90iMZEA17..WG202210-202504

58311PAN, REAR FLOOR

main58311-12420iNRE210,ZRE212,ZWE211..SED201908-202106

main58311-12430iZWE214..SED201908-202106

main58311-12450iZWE215..SED202210

main58311-12460iNRE210,ZRE212,ZWE211..SED202107

main58311-16190iZWE215..WG202210

main58311-47130iMZEA17..WG202210-202504

main58311-47140iZWE214..WG201909-202101

58315CEXTENSION, REAR FLOOR SIDE PANEL, RH

main58315-12090iMZEA17..SED202210-202504

main58315-12130iMZEA12,NRE210,ZRE212,ZWE211,214..WG201909

58316CEXTENSION, REAR FLOOR SIDE PANEL, LH

main58316-12070iNRE210,ZRE212,ZWE211,214..SED201908

main58316-12120iMZEA17..WG202210-202504

58325ECOVER, REAR FLOOR SERVICE HOLE

main58325-10031iMZEA12,NRE210,ZRE212201908

main58325-12180iMZEA17202210-202504

main58325-47051iZWE215,219202210

58350REINFORCEMENT ASSY, REAR FLOOR PANEL, RH

main58350-47010iMZEA12,NRE210,ZRE212,ZWE211,214201908

58351EBRACKET, SPARE WHEEL CLAMP

58355CBRACKET, REAR BUMPER ARM

main58355-12060×2iNRE210,ZRE212,ZWE211,214..SED201908

main58355-12070×2iMZEA12,NRE210,ZRE212,ZWE211,214..WG201909

58360REINFORCEMENT ASSY, REAR FLOOR PANEL, LH

main58350-47010iMZEA12,NRE210,ZRE212,ZWE211,214201908

58386BBRACKET, REAR BUMPER COVER, NO.2

main58386-47020×2iMZEA12,NRE210,ZRE212,ZWE211,214201908

9011506166

main90115-06166

9011506219

main90115-06219

9011908C64

main90119-08C64

9011908D20

main90119-08D20

9167380616

main91673-80616

52 parts on this diagram · 8 diagrams in section
