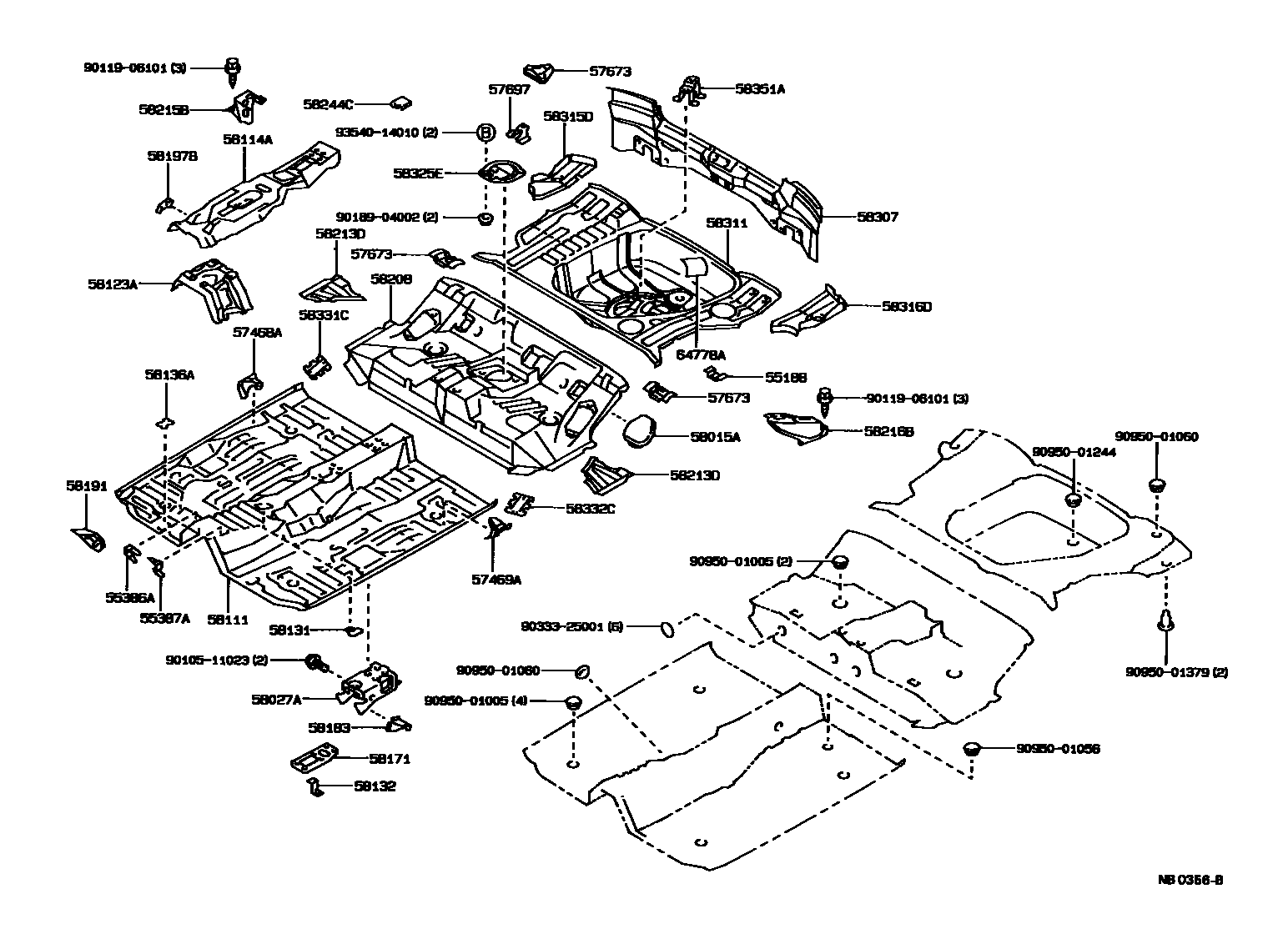

Toyota COROLLA — FLOOR PAN & LOWER BACK PANEL

0001 1 0002 1 0003 1 0004 1 0005 1

55188BRACKET, UNDER TRAY SUPPORT

main55188-10010iAE91,92,EE90..3D,5D198705-199205

55386ABRACKET, COMPUTER MOUNTING, NO.1

main55386-12040iAE91,92,CE90,96,97,EE9#198705-199108

main55386-12050iAE95,CE95198710-199106

55387ABRACKET, COMPUTER MOUNTING, NO.2

main55387-12020iAE91,92,CE90,96,97,EE9#198705-199108

main55387-12050iAE95,CE95198710-199106

57468ABRACKET, FRONT SEAT, OUTSIDE, REAR RH

main57468-12030iAE91,92,CE90,96,97,EE9#198705-199108

main57468-12040iAE95,CE95198710-199106

57469ABRACKET, FRONT SEAT, OUTSIDE, REAR LH

main57469-12030iAE91,92,CE90,96,97,EE9#198705-199108

main57469-12040iAE95,CE95198710-199106

57673BRACKET, REAR SEATBACK HINGE MOUNTING

main57607-12020iAE91,92..FXGTV,FXVS,G,GT,LT198908-199008

main57671-12020iAE91,92..FXG,FXGT,FXZI,FXZS198705-199205

main57672-12020iAE91,92..FXG,FXGT,FXZI,FXZS198705-199205

main57673-12060iAE95,CE95198710-199106

57697RETAINER, REAR SEAT CUSHION

main57697-12020iAE9#,CE90,EE90198705-198908

58015AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH

main58015-12020×2iAE91,92,CE90,EE90..DX,FXG,FXGT,FXGTV,FXVS,FXZS,G,GT,LT,SE,TX,XE198908-199008

main58015-13010×2iCE97,EE97,98;CE96,EE96..05S198708-199109

58027AREINFORCE SUB-ASSY, SEAT BELT ANCHOR

main58027-12030iAE91,92,CE9#,EE9#198705-198808

main58027-12040iAE95,CE95198710-199106

main58027-12050iAE91,CE96,97,EE96,97,98..CBR,DSL198905-198908

main58027-12060×2iAE92;AE91..EFIS199008-199205

main58027-12100iAE91,CE9#,EE9#..CBR,DSL,EFI199108-199205

58111PAN, FRONT FLOOR

main58111-12200iAE9#,CE9#,EE9#199108-199205

main58111-12210iAE95198710-198908

sub90950-01060

main58111-12211iAE95,CE95199008-199106

58114AREINFORCEMENT, FRONT FLOOR PANEL

main58114-12050iAE91,92,CE90,96,97,EE9#198705-199108

main58114-12060iAE95,CE95198710-199008

main58114-12061iAE95,CE95199008-199106

58123ASUPPORT, SHIFT & SELECT LEVER

main58123-12040iAE91,92,CE90,96,97,EE9#198705-199108

main58123-12050iAE95,CE95198802-199106

58131BRACKET, FRONT FLOOR HEAT INSULATOR, NO.1

main58131-12060iAE92;AE91..EFIS198908-199205

58132BRACKET, FRONT FLOOR HEAT INSULATOR, NO.2

main58132-32010×2iAE92,EE98;AE91..EFIS198705-198908

58136ACOVER, FRONT FLOOR SERVICE HOLE

main58136-12020×2iAE91,92,CE9#,EE9#198705-198905

58171REINFORCEMENT, PARKING BRAKE BASE

main58171-12080iAE91,92,CE90,96,97,EE9#198705-199108

58183BRACKET, FRONT SEAT MOUNTING, INNER

main58183-12090iAE9#,CE9#,EE9#199108-199205

main58183-12110iAE95,CE95198710-199106

main58184-12110iAE9#,CE9#,EE9#199108-199205

main58184-12120iAE95,CE95198710-199106

58191FOOTREST, FRONT FLOOR

main58191-12100iAE9#..FXG,FXGT,FXGTV,FXVS,FXZS,G199108-199205

58197BRETAINER, INSTRUMENT PANEL BRACE MOUNTING BRACKET

main58197-12010×2iAE9#,CE9#,EE9#198802-199108

58208PAN, CENTER FLOOR

main58211-12170iAE91,92..FXGTV,FXVS,GT198905-199205

main58211-12180iAE91,CE90,EE90..4D198705-199106

main58211-12240iAE95198710-198808

main58211-12241iAE95,CE95198808-199106

58213DREINFORCEMENT, CENTER FLOOR PANEL

main58213-12020iAE91,92,CE90,EE90198705-198908

main58214-12010iAE91,92,CE90,EE90..DX,FXG,FXGT,FXGTV,FXVS,FXZS,G,GT,LT,SE,TX,XE198908-199008

58215BBRACKET, REAR SEAT MOUNTING, RH

main58215-13020iCE97,EE97,98;CE96,EE96..05S198708-199109

main58215-16010iAE91,92,CE90,EE90198705-199205

58216BBRACKET, REAR SEAT MOUNTING, LH

main58216-13020iCE97,EE97,98;CE96,EE96..05S198708-199109

main58216-16010iAE91,92,CE90,EE90198705-199205

58244CBRACKET, REAR SEAT CUSHION MOUNTING, RH

main58244-16030×4iAE91,92,CE90,EE90198705-198908

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-1A070iAE91,92,EE90..3D,5D198705-198905

main58307-1A071iAE91,92..3D,5D198910-199205

main58307-1A160iAE91,92,CE90,EE90..4D198705-198905

main58307-1A161iAE91,92,CE90,EE90..4D198910-199201

main58307-1A180iAE95..TX,XE198710-198910

main58307-1A181iAE95,CE95198910-199106

58311PAN, REAR FLOOR

main58311-12120iAE91,92,CE90,EE90..4D,WG198705-199109

main58311-12180iAE91,92,EE90..3D,5D198705-199205

main58311-12200iAE95,CE95198710-199106

main58311-13100iCE96,97,EE96,97,98198708-198905

main58311-13110iEE96198708-198905

main58311-13130iCE96,97,EE96,97,98198905-199109

main58311-13140iEE96..4F198905-199109

58315DEXTENSION, REAR FLOOR PAN, RH

main58315-12030iAE91,92,CE90,EE90..4D198705-199106

main58315-12040iAE91,92,EE90..3D,5D198705-199205

main58315-12060iAE95,CE95198710-199106

main58315-13010iAE91..WG198708-199109

58316DEXTENSION, REAR FLOOR PAN, LH

main58316-12030iAE91,92,CE90,EE90..4D198705-199106

main58316-12040iAE91,92,EE90..3D,5D198705-199205

main58316-12060iAE95,CE95198710-199106

main58316-13010iAE91..WG198708-199109

58325ECOVER, REAR FLOOR SERVICE HOLE

main58325-12020iAE9#,CE9#,EE9#199108-199205

main58325-12060iAE95,CE95198710-199106

58331CCOVER, REAR FLOOR SIDE SERVICE HOLE, RH

main58331-12010iAE91,92,CE90,EE90..DX,FXGTV,FXVS,G,GT,LT,SE,TX,XE198908-199008

58332CCOVER, REAR FLOOR SIDE SERVICE HOLE, LH

main58332-12010iAE91,92,CE90,EE90..DX,FXGTV,FXVS,G,GT,LT,SE,TX,XE198908-199008

58351ABRACKET, SPARE WHEEL CARRIER

main58351-12020iAE91,92,CE90,EE90..4D,WG198705-199109

main58351-12030iAE91,92,EE90..3D,5D198705-199205

64778APROTECTOR, SPARE WHEEL

main64778-12030×3iAE91,92,EE90..3D,5D198705-199205

main64778-12050×2iAE9#,CE90,95,EE90..4D,WG198705-199109

9010511023

main90105-11023

9011906101

main90119-06101

9018904002

main90189-04002

9033325001

main90333-25001

9095001005

main90950-01005

9095001056

main90950-01056

9095001060

main90950-01060

9095001244

main90950-01244

9095001379

main90950-01379

9354014010

main93540-14010

43 parts on this diagram · 5 diagrams in section
