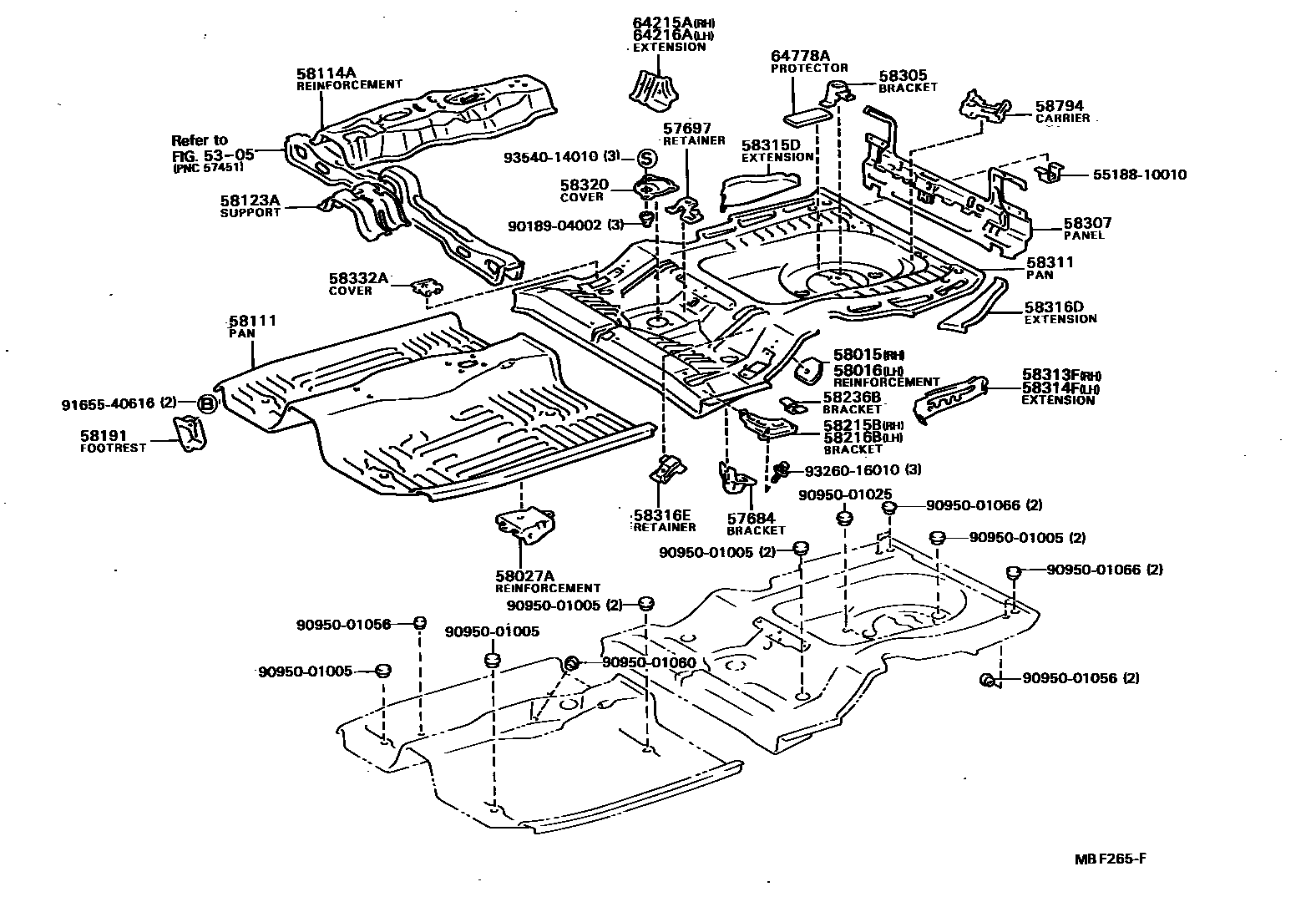

Toyota COROLLA — FLOOR PAN & LOWER BACK PANEL

0001 1 0002 1 0003 1

5305

57684BRACKET, FUEL TANK, REAR

main57686-16011iAE8#,CE80,EE80198305-198704

RH

main57687-16011iAE8#,CE80,EE80198305-198704

LH

57697RETAINER, REAR SEAT CUSHION

main57697-16010iAE8#,CE80,EE80198305-198704

58015REINFORCEMENT, BELT ANCHOR TO FLOOR PAN, RH

main58015-12010iAE8#,CE80,EE80198308-198608

main58015-16010iAE80,82,CE80;AE81..4F..DX;AE81..GL,SE,SX,ZX198305-198308

58016REINFORCEMENT, BELT ANCHOR TO FLOOR PAN, LH

main58015-12010iAE8#,CE80,EE80198308-198608

main58015-16010iAE80,82,CE80;AE81..4F..DX;AE81..GL,SE,SX,ZX198305-198308

58027AREINFORCE SUB-ASSY, SEAT BELT ANCHOR

main58027-12020iAE8#,CE80,EE80198305-198704

58111PAN, FRONT FLOOR

main58111-12170iAE8#,CE80,EE80198305-198704

58114AREINFORCEMENT, FRONT FLOOR PANEL

main58114-12020iAE8#,CE80,EE80198305-198704

58123ASUPPORT, SHIFT & SELECT LEVER

main58013-12010iAE8#,CE80,EE80198305-198704

58191FOOTREST, FRONT FLOOR

main58191-12060iAE8#,CE80,EE80..FXG,FXL,FXR,FXT,GL,GT,SE,SR,SX,ZX198305-198704

58215BBRACKET, REAR SEAT MOUNTING, RH

main58215-16010iAE8#,CE80,EE80198305-198704

58216BBRACKET, REAR SEAT MOUNTING, LH

main58216-16010iAE8#,CE80,EE80198305-198704

58236BBRACKET, CENTER FLOOR HEAT INSULATOR

main58236-14010×2iAE8#,CE80,EE80198305-198704

58305BRACKET SUB-ASSY, SPARE WHEEL CLAMP

main58305-10011iAE8#,CE80,EE80198305-198704

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-12820iAE8#,CE80,EE80..4D198305-198704

main58307-12840iAE81,82,CE80..5D3198305-198704

main58307-12860iAE81,82,CE80,EE80..3D,5D2198410-198704

58311PAN, REAR FLOOR

main58311-12100iAE80,81,CE80..CTD,DX,GL198305-198505

main58311-12110iAE8#,CE80..5D3198505-198704

main58311-12140iAE81,82..ZX198305-198309

main58311-12160iAE81,82,CE80..FXG,FXT198410-198704

main58311-16050iAE81,82,CE80,EE80..FXD,FXL,FXR198410-198704

58313FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, RH

main58313-12170iAE8#,CE80,EE80..4D198305-198508

main58313-12180iAE8#,CE80,EE80..4D198508-198704

58314FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, LH

main58314-12170iAE8#,CE80,EE80..4D198305-198508

main58314-12180iAE8#,CE80,EE80..4D198508-198704

58315DEXTENSION, REAR FLOOR PAN, RH

main58315-12010iAE8#,CE80,EE80..4D,5D3198305-198704

main58315-12020iAE81,82..3D,5D2198410-198704

58316DEXTENSION, REAR FLOOR PAN, LH

main58316-12010iAE8#,CE80,EE80..4D,5D3198305-198704

main58316-12020iAE81,82..3D,5D2198410-198704

58316ERETAINER, REAR SEAT SET

main58316-16030×2iAE80,81,CE80..CTD,DX,GL198305-198505

58320COVER, REAR FLOOR SERVICE HOLE

main58325-16020iAE8#,CE80,EE80198305-198704

58332ACOVER, REAR FLOOR SIDE SERVICE HOLE

main58331-16010iAE8#,CE80,EE80..CTD,DX,FXD,FXL,FXR,GL,GT,SE,SR,SX198305-198704

RH

main58332-16010iAE8#,CE80,EE80..CTD,DX,FXD,FXL,FXR,GL,GT,SE,SR,SX198305-198704

LH

58794CARRIER, JACK

main58791-12090iAE8#,CE80,EE80198408-198704

main58791-16031iAE80,82,CE80;AE81..4F..DX;AE81..GL,SE,SX,ZX198305-198408

64215AEXTENSION, REAR FLOOR TO PACKAGE TRAY, RH

main64215-12010iAE8#,CE80,EE80..4D198305-198704

64216AEXTENSION, REAR FLOOR TO PACKAGE TRAY, LH

main64216-12010iAE8#,CE80,EE80..4D198305-198704

64778APROTECTOR, SPARE WHEEL

main64759-16030iAE81,82,CE80,EE80..3D,5D2198410-198704

230 X 125

main64778-12010×2iAE8#,CE80,EE80..4D,5D3198305-198506

main64778-12020×2iAE8#,CE80,EE80..4D,5D3198506-198704

5518810010BRACKET, UNDER TRAY SUPPORT

main55188-10010

9018904002

main90189-04002

9095001005

main90950-01005

9095001025

main90950-01025

9095001056

main90950-01056

9095001060

main90950-01060

9095001066

main90950-01066

9165540616

main91655-40616

9326016010

main93260-16010

9354014010

main93540-14010

37 parts on this diagram · 3 diagrams in section
