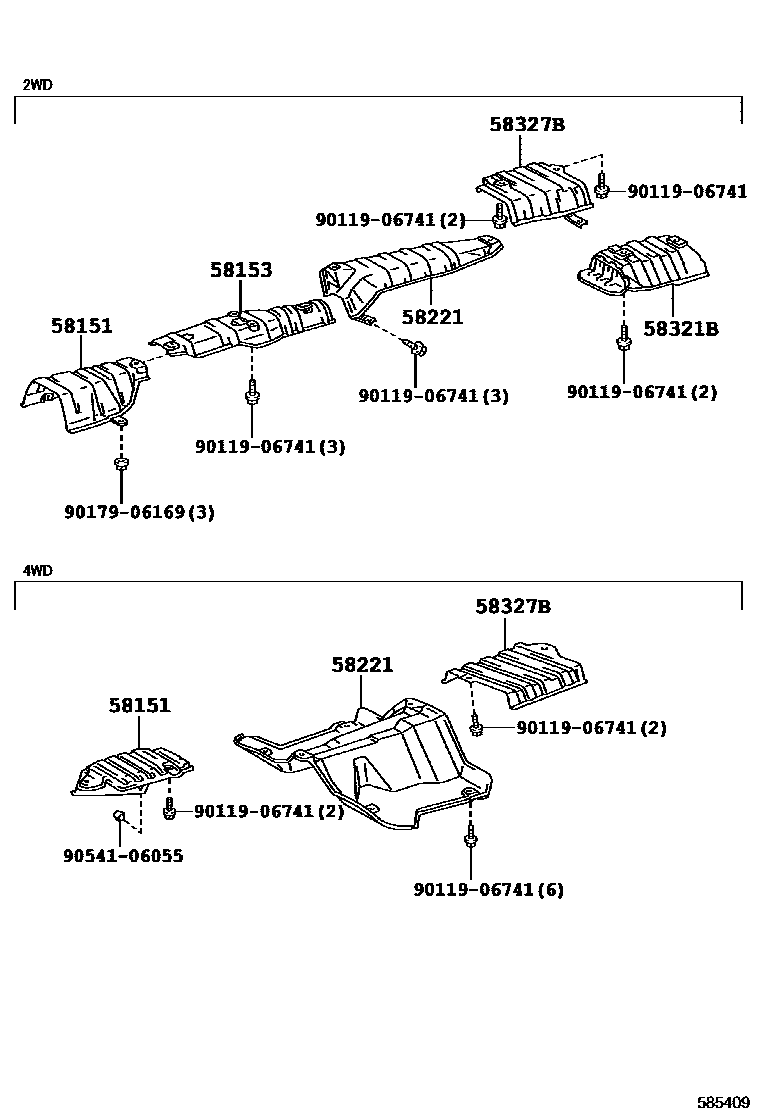

Toyota COROLLA — FLOOR INSULATOR
58151INSULATOR, FRONT FLOOR HEAT, NO.1
58153INSULATOR, FRONT FLOOR HEAT, NO.2
58221INSULATOR, CENTER FLOOR HEAT, NO.1
58321BINSULATOR, REAR FLOOR HEAT, NO.1
58327BINSULATOR, MAIN MUFFLER HEAT
9011906741
main90119-06741
9017906169
main90179-06169
9054106055
main90541-06055
8 parts on this diagram · 4 diagrams in section
FLOOR INSULATOR for Toyota COROLLA
This section contains 12 genuine Toyota parts for the FLOOR INSULATOR system of the Toyota COROLLA. Key components include: INSULATOR, FRONT FLOOR HEAT, NO.1, INSULATOR, FRONT FLOOR HEAT, NO.2, INSULATOR, CENTER FLOOR HEAT, NO.1, INSULATOR, REAR FLOOR HEAT, NO.1, INSULATOR, MAIN MUFFLER HEAT.
