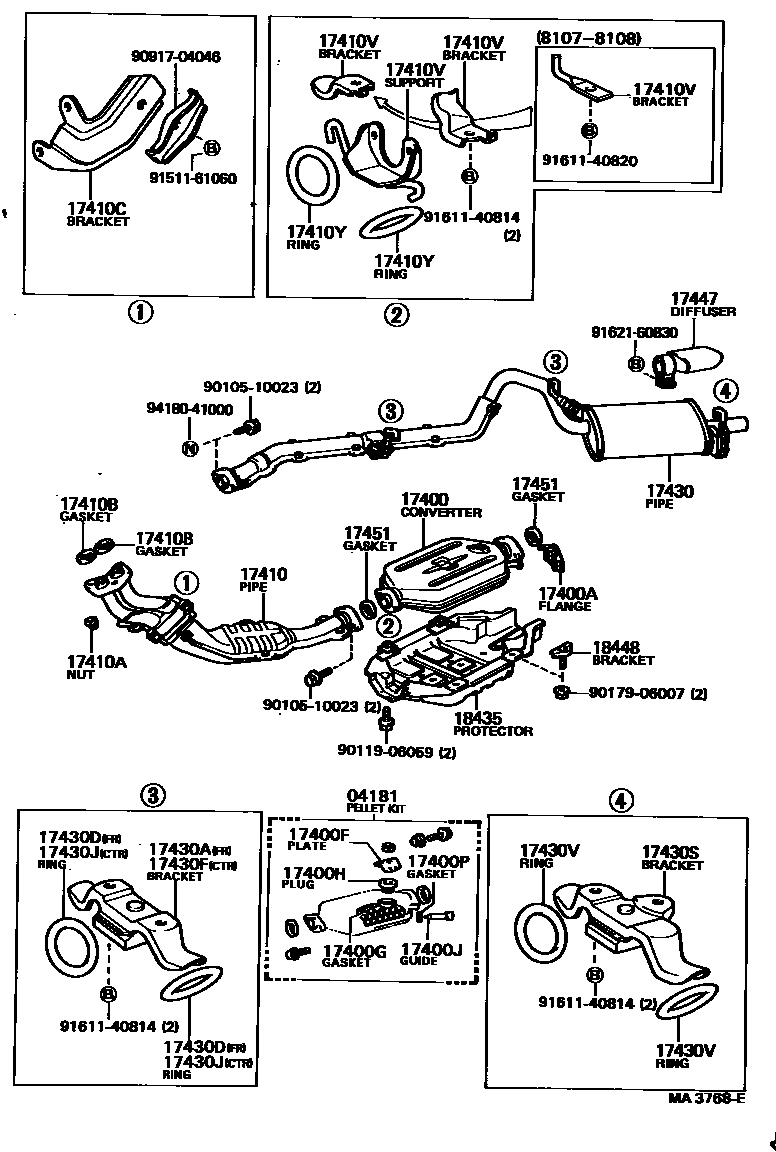

Toyota COROLLA — EXHAUST PIPE
04181PELLET KIT
17400CONVERTER ASSY, W/CATALYST
17400AFLANGE, THERMOSENSER INLET
17400FPLATE, CATALYZER INLET PLUG LOCK
17400GGASKET, CATALYZER INLET
17400HPLUG, W/HEAD STRAIGHT SCREW(FOR CATALYZER INLET)
17400JGUIDE, CATALYTIC CONVERTER SENSOR
17400PGASKET(FOR CATALYTIC CONVERTER SENSOR GUIDE)
17410PIPE ASSY, EXHAUST, FRONT
17410ANUT, EXHAUST PIPE SET STUD BOLT
17410BGASKET, EXHAUST PIPE
17410CBRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17410VBRACKET, EXHAUST PIPE FRONT (FOR REAR)
UPR,LH
LWR
LWR
LWR
LWR
UPR,RH
UPR,RH
UPR,LH
17410YBOLT OR RING, EXHAUST PIPE FRONT (FOR REAR)
RH
LH
17430PIPE ASSY, EXHAUST, TAIL
LPG PACKAGE
17430ABRACKET, EXHAUST TAILPIPE(FOR FRONT)
17430DBOLT OR RING, EXHAUST TAILPIPE (FOR FRONT)
17430FBRACKET, EXHAUST TAILPIPE(FOR CENTER)
UPR
LWR
LWR
17430JBOLT OR RING, EXHAUST TAILPIPE(FOR CENTER)
17430SBRACKET, EXHAUST TAILPIPE (FOR REAR)
17430VBOLT OR RING, EXHAUST TAILPIPE (FOR REAR)
17447DIFFUSER, EXHAUST GAS
17451GASKET, EXHAUST PIPE
FR PIPE X CCO
18435PROTECTOR, CATALYTIC CONVERTER
18448BRACKET, CONVERTER PROTECTOR, CENTER
9010510023
main90105-10023
9011906059
main90119-06059
9017906007
main90179-06007
9091704046
main90917-04046
9151161060
main91511-61060
9161140814
main91611-40814
9161140820
main91611-40820
9162160830
main91621-60830
9418041000
main94180-41000
34 parts on this diagram · 8 diagrams in section
EXHAUST PIPE for Toyota COROLLA
This section contains 44 genuine Toyota parts for the EXHAUST PIPE system of the Toyota COROLLA. Key components include: PELLET KIT, CONVERTER ASSY, W/CATALYST, FLANGE, THERMOSENSER INLET, PLATE, CATALYZER INLET PLUG LOCK, GASKET, CATALYZER INLET.
