Toyota COROLLA — EXHAUST GAS RECIRCULATION SYSTEM

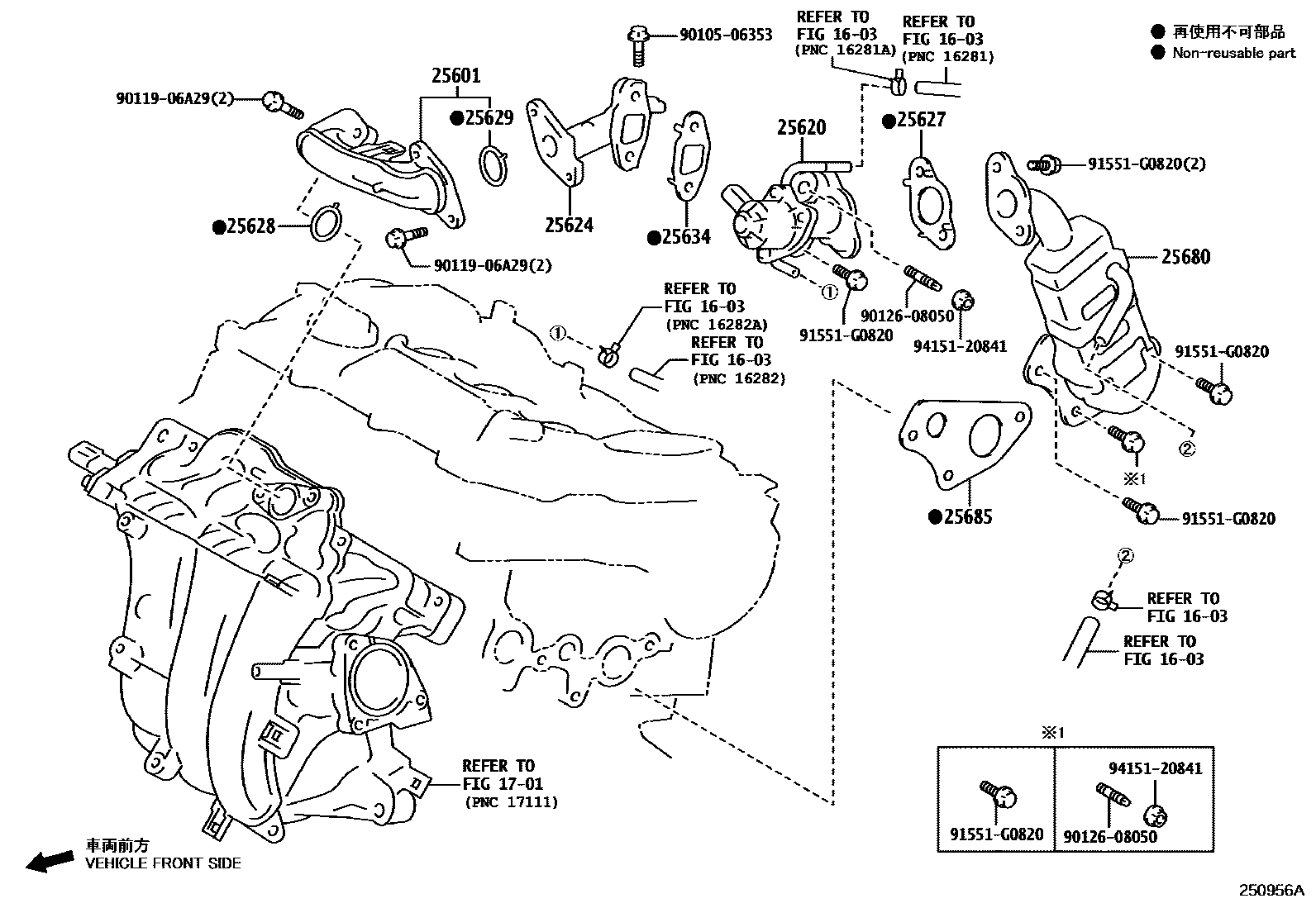

Parts diagram

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

1701MANIFOLD

→ Go to FIG 17-01

25601PIPE SUB-ASSY, EGR, NO.1

main25601-15050i202210-202504

main25601-24030i202006

25620VALVE ASSY, EGR

main25620-15350i202210-202504

main25620-24050i202006

main25620-37140i202210

25624ADAPTER, EGR VALVE

main25624-15010i202210-202504

25627GASKET, EGR VALVE

main25627-15010i202210-202504

main25627-24010i202006

main25627-37020i201908

25628GASKET, EGR INLET

main25628-25010i202006

main25628-F2040i202310-202504

25629GASKET, EGR VALVE ADAPTER

main25628-25010i202210-202310

main25628-F2040i202310-202504

main25629-25010i202006

25634GASKET, EGR PIPE

main25634-15010i202210-202504

main25634-37020i202210

25680COOLER ASSY, EGR

main25680-15010i202210-202504

main25680-24010i202006

25685GASKET, EGR COOLER, NO.1

main25685-15010i202210-202504

main25685-25011i202006

main25685-37020i201908

9010506353

main90105-06353

9011906A29

main90119-06A29

9012608050

main90126-08050

91551G0820

main91551-G0820

9415120841

main94151-20841

16 parts on this diagram · 3 diagrams in section

EXHAUST GAS RECIRCULATION SYSTEM for Toyota COROLLA

This section contains 27 genuine Toyota parts for the EXHAUST GAS RECIRCULATION SYSTEM system of the Toyota COROLLA. Key components include: RADIATOR & WATER OUTLET, MANIFOLD, PIPE SUB-ASSY, EGR, NO.1, PIPE SUB-ASSY, EGR W/COOLER, PIPE ASSY, EGR.
