Toyota COROLLA — CRANKSHAFT & PISTON

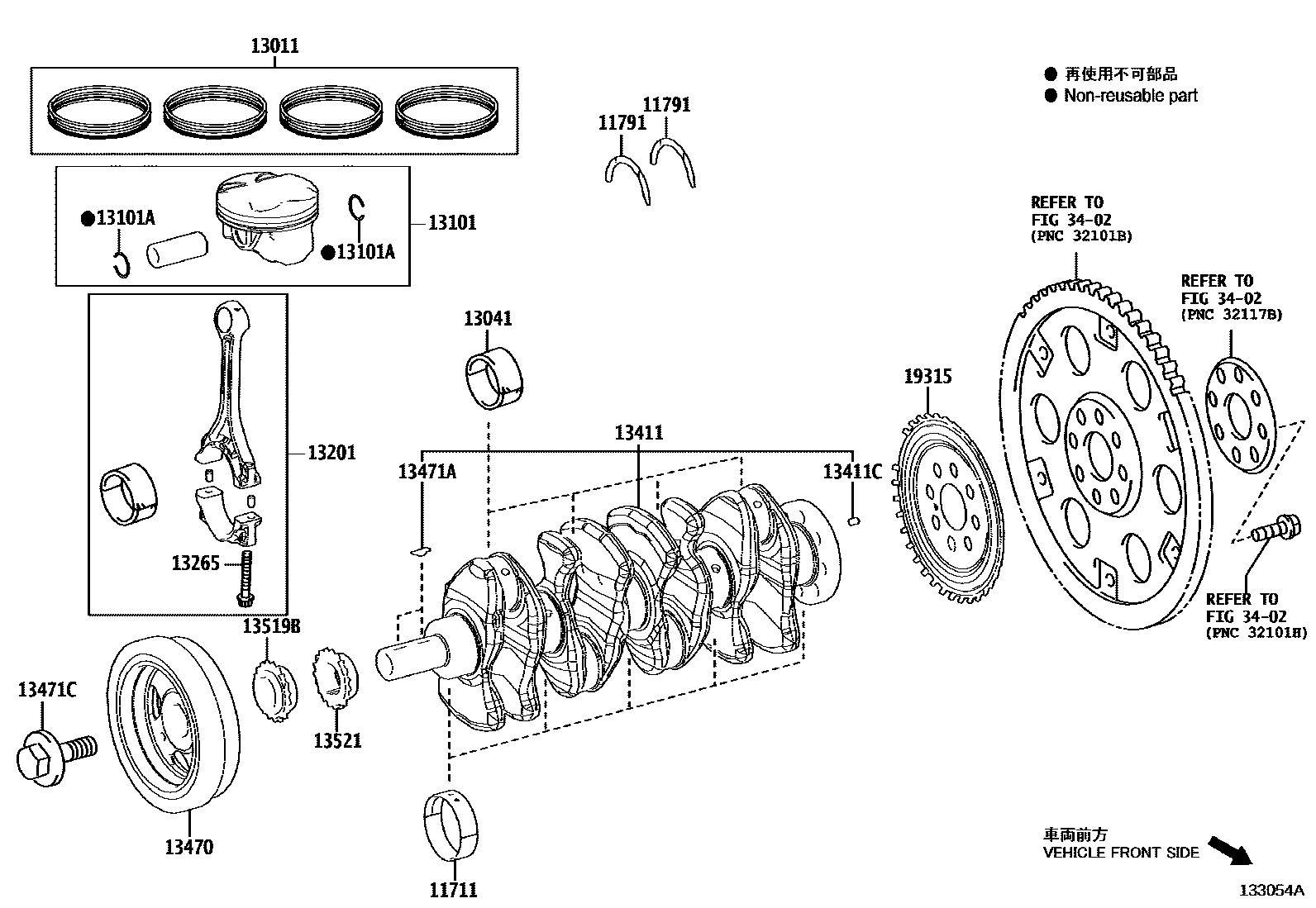

Parts diagram

11711BEARING, CRANKSHAFT

main11701-15060-01×4i202210-202303

main11701-15060-02×4i202210-202303

main11701-15060-03×4i202210-202303

main11701-15060-04×4i202210-202303

main11701-15060-05×4i202210-202303

main11701-15060-06×4i202210-202303

main11701-15061-01×4i202303-202504

main11701-15061-02×4i202303-202504

main11701-15061-03×4i202303-202504

main11701-15061-04×4i202303-202504

main11701-15061-05×4i202303-202504

main11701-15061-06×4i202303-202504

main11701-24010-01×5i202006

main11701-24010-02×5i202006

main11701-24010-03×5i202006

main11701-24010-04×5i202006

main11701-24010-05×5i202006

main11701-24010-06×5i202006

main11701-37021-01×5i201908

main11701-37021-02×5i201908

main11701-37021-03×5i201908

main11701-37021-04×5i201908

main11701-37050-01×5i201908

main11701-37050-02×5i202210

main11701-37050-03×5i202210

main11701-37050-04×5i201908

main11701-37050-Z1×5i202210

main11701-37050-Z2×5i202210

main11701-37050-Z3×5i202210

main11701-37050-Z4×5i202210

main11701-47032-01×5i201908

main11701-47032-02×5i201908

main11701-47032-03×5i201908

main11701-47032-04×5i201908

11791WASHER, CRANKSHAFT THRUST, UPPER

main11791-15030×2i202210-202504

main11791-22020i201908

main11791-37010i201908

main11791-47011×2i201908

13011RING SET, PISTON

main13011-15150i202210-202504

main13011-24040i202006

main13011-37270i202210

main13011-37290i201908

main13011-47131i201908

13041BEARING, CONNECTING ROD

main13041-24020-01×4i202006

main13041-24020-02×4i202006

main13041-24020-03×3i202210-202504

main13041-37010-01×4i201908

main13041-37010-02×4i201908

main13041-37010-03×4i201908

main13041-37040-01×4i201908

main13041-37040-02×4i201908

main13041-37040-03×4i202210

main13041-47041-01×4i201908

main13041-47041-02×4i201908

main13041-47041-03×4i201908

13101PISTON SUB-ASSY, W/PIN

main13101-15060×3i202210-202504

main13101-24040×4i202006

main13101-37250×4i201908

main13101-37390×4i201908-202008

main13101-37440×4i202210

main13101-37470×4i202008

main13101-47190×4i201908

13101ARING, HOLE SNAP(FOR PISTON PIN)

main90520-19019×6i202210-202504

main90520-20064×8i201908

13201ROD SUB-ASSY, CONNECTING

main13201-09A30×4i201908

main13201-09C10×4i202210

main13201-29835-A0×4i202006

main13201-29835-B0×3i202210-202504

main13201-29835-C0×4i202006

main13201-39185×4i201908

main13201-39295×4i201908

main13201-49126×4i201908

13265BOLT, CONNECTING ROD

main13265-22040×8i202210

main13265-25020×8i202006

main13265-47010×8i201908

13411CRANKSHAFT

main13401-0T061i201908

main13401-15010i202210-202504

main13401-24010i202006

main13401-37021i202210

main13401-47100i201908

13411CPIN, STRAIGHT(FOR CRANKSHAFT)

main90250-06035i202006

13470PULLEY ASSY, CRANKSHAFT

main13470-0Y050i202012

main13470-15140i202210-202502

main13470-24010i202006

main13470-47100i201908-202012

13471PULLEY, CRANKSHAFT

main13470-37042i201908

main13470-37060i202210

13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)

main90280-04001×2i201908

13471CBOLT(FOR CRANKSHAFT PULLEY SET)

main90119-14106i201908

main90119-16020i202210-202504

13519GEAR, OIL PUMP DRIVE

main13519-15010i202210-202504

main13519-37010i201908

main13519-47010i201908

13519BSPROCKET, OIL PUMP DRIVE

main13519-24010i202006

13521GEAR OR SPROCKET, CRANKSHAFT TIMING

main13521-15030i202210-202504

main13521-24010i202006

main13521-37011i201908

19315PLATE, CRANK ANGLE SENSOR, NO.1

main19315-24010i202006

main19315-37020i201908

main19315-37030i202210

3402TORQUE CONVERTER, FRONT OIL PUMP(CVT)

→ Go to FIG 34-02

19 parts on this diagram · 5 diagrams in section

CRANKSHAFT & PISTON for Toyota COROLLA

This section contains 25 genuine Toyota parts for the CRANKSHAFT & PISTON system of the Toyota COROLLA. Key components include: BEARING, CRANKSHAFT, WASHER, CRANKSHAFT THRUST, UPPER, RING SET, PISTON, BEARING, CONNECTING ROD, PISTON SUB-ASSY, W/PIN.
