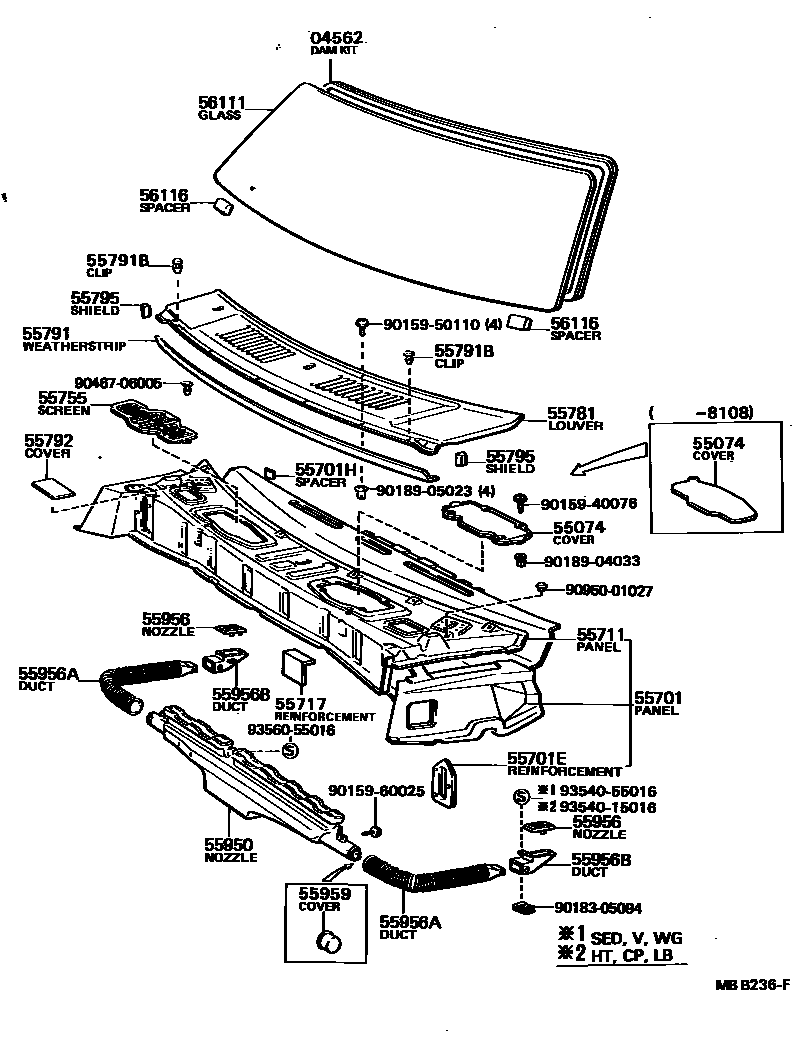

Toyota COROLLA — COWL PANEL & WINDSHIELD GLASS
04562DAM KIT, WINDSHIELD GLASS
55074COVER SUB-ASSY, COWL INNER HEATER AIR
55701PANEL SUB-ASSY, COWL
55701EREINFORCEMENT, HOOD HINGE MOUNTING
RH
LH
55701HSPACER, INSTRUMENT PANEL SAEFTY PAD
55711PANEL, COWL TOP, OUTER
55717REINFORCEMENT, COWL TOP OUTSIDE
55755SCREEN, HEATER AIR DUCT
55781LOUVER, COWL VENTILATOR
55791WEATHERSTRIP, HOOD TO COWL TOP
55791BCLIP(FOR HOOD TO COWL TOP WEATHERSTRIP)
55792COVER, WIPER MOTOR SERVICE HOLE
55795SHIELD, COWL TOP TO LOUVER, SIDE
55950NOZZLE ASSY, DEFROSTER
55956NOZZLE, SIDE DEFROSTER
RH,BLACK,BLACK,TRIM2#
RH,BLUE,BLUE,TRIM8#
RH,BEIGE,BEIGE,TRIM4#
RH,DARK BROWN,BROWN,TRIM4#
RH,BEIGE,BEIGE,TRIM4#
RH,BLACK,BLACK,TRIM2#
RH,BLUE,BLUE,TRIM8#
RH,DARK BROWN,BROWN,TRIM4#
MAROON,RED/MAROON,TRIM3#
GRAY,GRAY,TRIM1#
BROWN,BROWN,TRIM4#
LH,BLACK,BLACK,TRIM2#
LH,BLUE,BLUE,TRIM8#
LH,BEIGE,BEIGE,TRIM4#
LH,DARK BROWN,BROWN,TRIM4#
LH,BEIGE,BEIGE,TRIM4#
LH,BLACK,BLACK,TRIM2#
LH,BLUE,BLUE,TRIM8#
LH,DARK BROWN,BROWN,TRIM4#
55956ADUCT, SIDE DEFROSTER NOZZLE, NO.1
55956BDUCT, SIDE DEFROSTER NOZZLE, NO.2
RH
RH
RH
LH
LH
LH
55959COVER, DEFROSTER NOZZLE OPENING, NO.1
56111GLASS, WINDSHIELD
*TEM,T=5.0
*TZT,T=5.0
*TL,T=5.3
*TT,T=5.0
*TL,T=5.3
*LAM,T=5.3
BRONZE,*TT,T=5.0
56116SPACER, WINDSHIELD GLASS
9015940076
main90159-40076
9015950110
main90159-50110
9015960025
main90159-60025
9018305094
main90183-05094
9018904033
main90189-04033
9018905023
main90189-05023
9046706005
main90467-06005
9095001027
main90950-01027
9354015016
main93540-15016
9354055016
main93540-55016
9356055016
main93560-55016
31 parts on this diagram · 1 diagram in section
COWL PANEL & WINDSHIELD GLASS for Toyota COROLLA
This section contains 31 genuine Toyota parts for the COWL PANEL & WINDSHIELD GLASS system of the Toyota COROLLA. Key components include: DAM KIT, WINDSHIELD GLASS, COVER SUB-ASSY, COWL INNER HEATER AIR, PANEL SUB-ASSY, COWL, REINFORCEMENT, HOOD HINGE MOUNTING, SPACER, INSTRUMENT PANEL SAEFTY PAD.
