Toyota COROLLA — COWL PANEL & WINDSHIELD GLASS

04562DAM KIT, WINDSHIELD GLASS

main04562-12010iAE10#,CE10#,EE10#199106

53388BCUSHION, HOOD, REAR

main53388-12040iAE10#,CE10#,EE10#199106

55701PANEL SUB-ASSY, COWL

main55700-12781iAE10#..DX,G,LT,LX,SEG,SEL,SJ,XE199412

main55700-12801iEE10#199412-199704

sub55700-1A031

sub90179-06107

main55700-12902iAE100,101..DX,G,LT,LX,SEG,SEL,SJ,XE199106-199412

sub55700-12781

main55700-12903iAE104,EE106,107,108199109-199412

sub55700-12781

main55700-12904iCE106,108,109199106-199401

sub55700-1A031

main55700-12905iAE101..GT199106-199412

sub55700-12801

main55700-12906iEE101,102,103,104199106-199412

sub55700-12801

main55700-1A030iCE10#199305-199412

sub55700-1A031

main55700-1A031iAE101,CE10#..BZT,CTD,DX,G,GL,L,LT,LX,SEL,XE199412-199704

55713APANEL, COWL TOP SIDE, RH

main55713-12080iAE10#,CE10#,EE10#199106-199505

sub55713-12081

sub90467-07166

main55713-12081iAE10#,CE10#,EE10#199505

55714APANEL, COWL TOP SIDE, LH

main55714-12080iAE10#,CE10#,EE10#199106-199505

sub55714-12081

sub90467-07166

main55714-12081iAE10#,CE10#,EE10#199505

55738ASTOPPER, HOOD, RH

main55738-12090iAE10#,CE10#,EE10#..BZT,CTD,DX,DXJ,G,GL,L,LT,LX,SEG,SEL,SJ,XE199106-199205

55739ASTOPPER, HOOD, LH

main55739-12050iAE10#,CE10#,EE10#..BZT,CTD,DX,DXJ,G,GL,L,LT,LX,SEG,SEL,SJ,XE199106-199205

55783BLOUVER, COWL TOP VENTILATOR, CENTER NO.1

main55708-12080iAE10#,CE10#,EE10#199106

main55708-12090iAE10#,CE10#,EE10#199106

55799CCLIP, COWL TOP VENTILATOR LOUVER

main55799-12010iAE10#,CE10#,EE10#199505

56111GLASS, WINDSHIELD

main56111-1A440iAE109,CE106,108,109,EE102,103,104,106,107,108..CTD,DX,DXJ,L199109-199705

sub56111-1A470

main56111-1A460iAE100,101,104,CE100199106-199705

sub56111-1A470

main56111-1A470iAE10#,CE100,104..(4DS,WG)..(G,GT,SEG,SEL)199106-199505

main56111-1A480iAE10#,CE100,104..SEG,SEL199106-199505

sub56111-1A670

main56111-1A670iAE100,104,CE100,104..SEL199312-199504

main56111-1A770iAE10#,CE10#,EE10#199705

56114RETAINER, WINDSHIELD GLASS

main56110-12010iAE10#,CE10#,EE10#199106

9016440093

main90164-40093

9018904119

main90189-04119

9018904192

main90189-04192

9018904193

main90189-04193

9018904208

main90189-04208

9046706131B2

main90467-06131B2

9046706133

main90467-06133

9046706133B0

main90467-06133B0

9046706133B3

main90467-06133B3

9046706133C0

main90467-06133C0

9165160620

main91651-60620

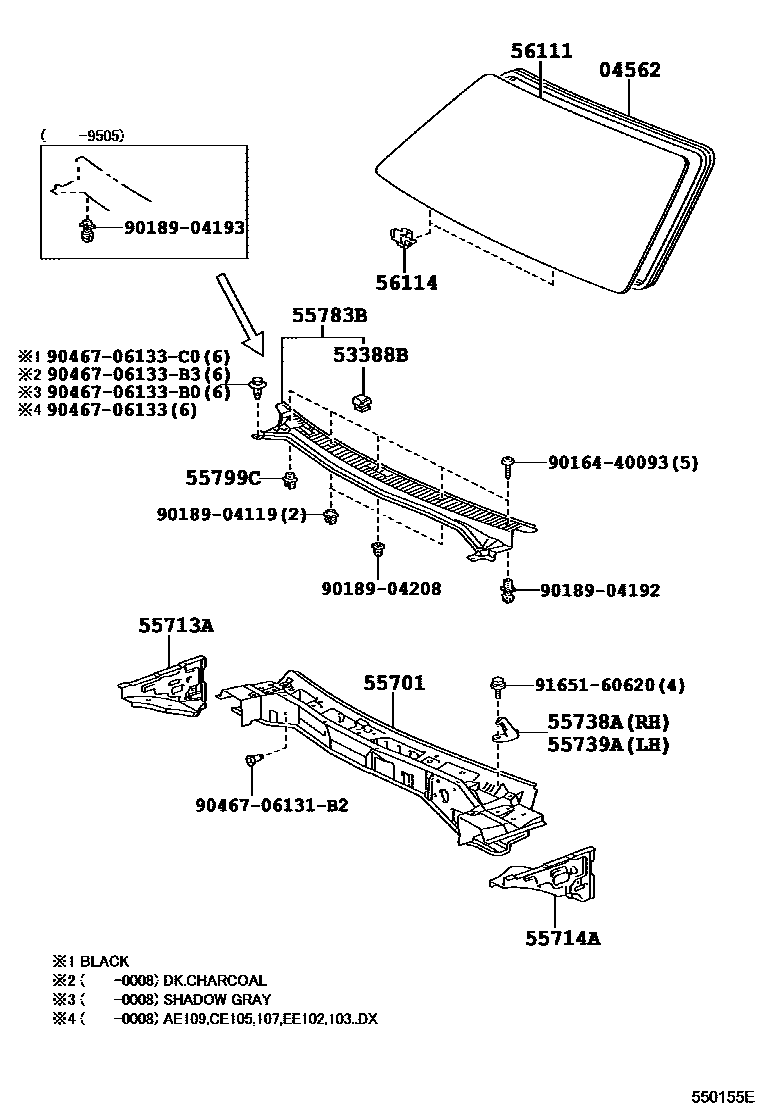

22 parts on this diagram · 1 diagram in section
