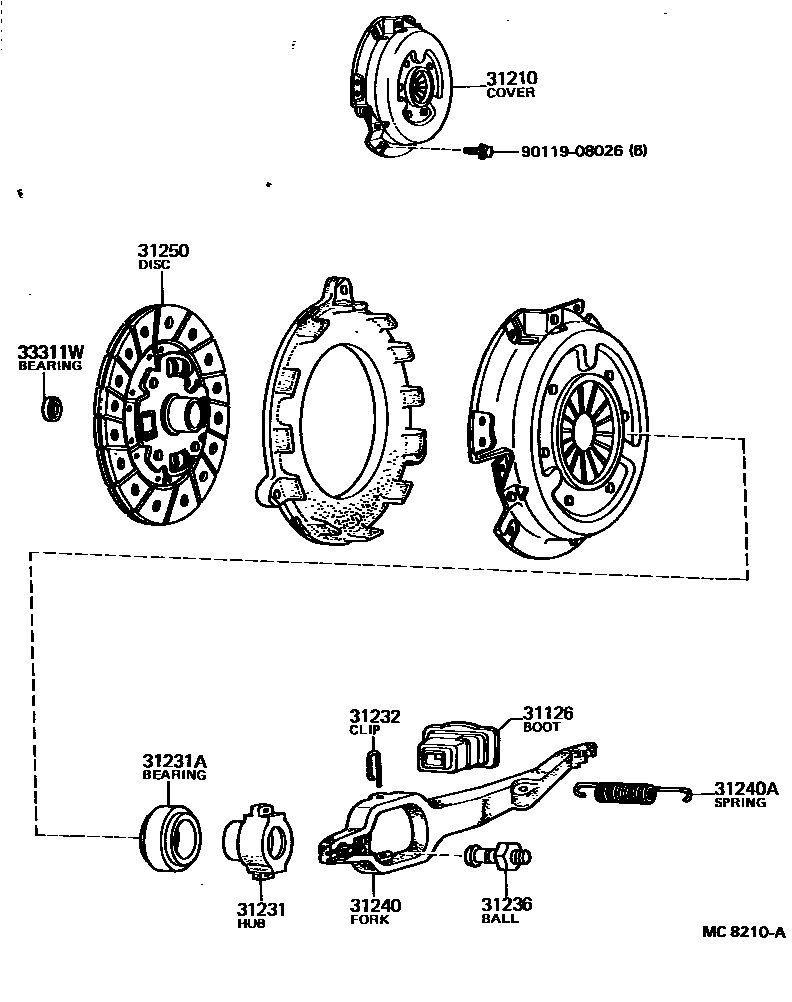

Toyota COROLLA — CLUTCH & RELEASE FORK

0001 1 0002 1 0003 1 0004 1 0005 1

31126BOOT, CLUTCH RELEASE FORK

main31126-12020iKE70,71,72,73..4F197903-198707

main31126-12040iAE70..MTM197903-198304

main31126-20070iCE7#,KE74,TE7#..MTM198008-198707

main31126-22040iTE7#..MTM197903-198008

31210COVER ASSY, CLUTCH

main31210-12050iKE70..MTM197903-197908

main31210-12051iKE7#..MTM197908-198008

main31210-12052iKE70,71,72,73..MTM198008-198707

sub31210-12053

main31210-12060iAE70197903-197908

main31210-12061iAE70197908-197909

main31210-12062iAE70..MTM197909-198108

main31210-12063iAE70..MTM198108-198304

sub31210-12064

main31210-12100iKE74..MTM198308-198707

sub31210-12180

main31210-14032iTE71197903-197907

main31210-14033iTE71197907-197908

main31210-14070iTE73,74..4F197908-198308

main31210-14100iTE71197908-198304

sub31210-14101

main31210-23011iTE70..MTM197908-198108

sub31210-23012

main31210-30172iCE7#..5F198508-198707

sub31210-20270

main31210-35042iCE7#..5F198202-198508

sub31210-22120

31231HUB, CLUTCH RELEASE BEARING

main31231-12031iAE70,KE70..MTM197903-197904

main31231-12032iAE70,KE7#..MTM197904-198010

main31231-12033iAE70,KE70,71,72,73..MTM198010-198707

main31231-12090iKE74..MTM198308-198707

main31231-14030iTE71197903-197904

main31231-14031iTE7#..MTM197904-198007

main31231-14032iTE7#..MTM198007-198008

main31231-20081iTE7#..MTM198008-198308

main31231-20090iCE7#..5F198508-198707

main31231-36070iCE7#..5F198202-198508

31231ABEARING, BALL(FOR CLUTCH RELEASE HUB)

main90363-33002iAE70,KE7#..MTM197903-198204

main90363-33004iAE70,KE70,72,73..MTM198204-198707

main90363-40001iTE7#..MTM197903-198002

main90363-40008iTE7#..MTM198002-198007

main90363-40015iTE7#..MTM198007-198012

main90363-40022iCE7#,KE74,TE7#..MTM198012-198707

31232CLIP OR SPRING, RELEASE BEARING HUB

main31232-12010×2iAE70,KE70,71,72,73..MTM197903-198707

main31232-22010×2iCE7#,KE74,TE7#..MTM197903-198707

31236BALL, RELEASE FORK

main31236-20020iTE7#..MTM197903-198108

main31236-30030iAE70,KE70,71,72,73..MTM197903-198707

main31236-30060iCE7#,KE74,TE7#..MTM198108-198707

31240FORK ASSY, CLUTCH RELEASE

main31204-10040iKE70..5F197903-198010

main31204-12010iKE7#..4F197903-198010

main31204-12011iKE70,71,72,73..4F198010-198707

main31204-12030iAE70..MTM197903-198010

main31204-12031iAE70..MTM198010-198304

main31204-20080iKE74,TE7#..MTM198008-198707

main31204-20090iCE7#..5F198202-198707

main31204-22030iTE7#..MTM197903-198008

31240ASPRING, TENSION(FOR CLUTCH RELEASE FORK RETURN)

main90506-14139iAE70,KE70,71,72,73..MTM197903-198707

31250DISC ASSY, CLUTCH

main31250-12021iKE7#..MTM197903-198012

main31250-12051iAE70..MTM197903-198002

main31250-12052iAE70..MTM198002-198304

sub31250-12053

main31250-12061iTE71,74..MTM198001-198109

main31250-12062iTE71198208-198304

sub31250-16040

main31250-12070iKE70,71,72,73..MTM198012-198409

main31250-12071iKE72,73198409-198707

sub31250-12072

main31250-12080iTE70..MTM198001-198108

sub31250-12081

main31250-12120iKE74..MTM198308-198506

main31250-12121iKE74..MTM198506-198707

sub31250-12122

main31250-14090iTE74..4F198109-198208

main31250-14091iTE74..4F198208-198308

sub31250-14092

main31250-14100iTE70..MTM197908-197910

main31250-14101iTE70..MTM197910-198001

main31250-20110iCE7#..5F198202-198203

main31250-20111iCE7#..5F198203-198407

main31250-20112iCE7#198407-198502

main31250-20113iCE7#198502-198508

sub31250-20114

main31250-22210iCE7#..5F198508-198707

sub31250-22211

33311WBEARING (FOR INPUT SHAFT)

main90363-12003iAE70,KE7#,TE7#..MTM198010-198707

main90363-12004iCE7#..5F198202-198707

main97123-06001iAE70,KE7#,TE7#..MTM197903-198010

9011908026

main90119-08026

11 parts on this diagram · 5 diagrams in section
