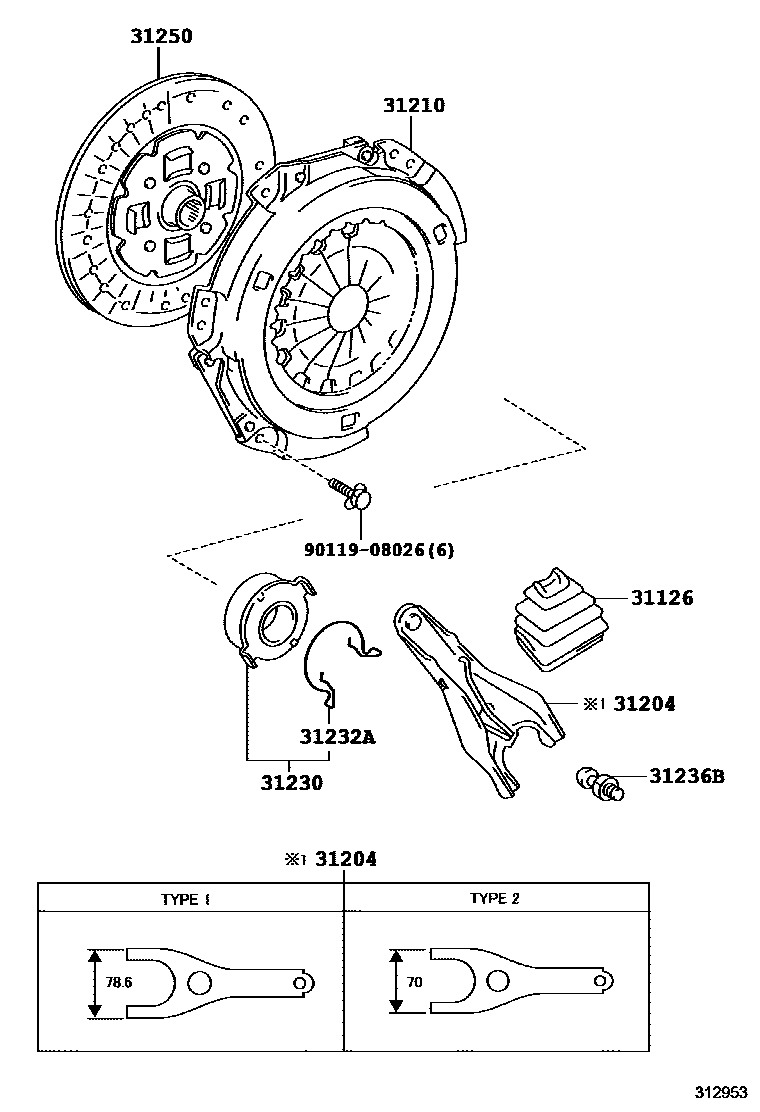

Toyota COROLLA — CLUTCH & RELEASE FORK

0001 1 0002 1

31126BOOT, CLUTCH RELEASE FORK

main31126-12051iAE100,101,EE10#..MTM199106-199705

main31126-12060iAE104,109..5F199109

main31126-32010iCE10#..5F199106

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-12050iAE100..5F199506-200008

TYPE 2(*94)

main31204-17010iAE101,104,109..MTM199506

main31204-20100iCE10#..5F199106

31210COVER ASSY, CLUTCH

main31210-12131iAE104,109..5F199109

sub31210-12231

main31210-12151iAE101..5F..GT199305-199503

main31210-12152iAE101..MTM..(BZT,GT)199503-200008

main31210-12180iEE101,102,106..MTM199106

sub31210-12181

main31210-12190iAE100..5F199106-199503

main31210-12191iAE100..5F199503-200008

sub31210-12192

main31210-12200iAE101..5F..(SEG,SJ)199106-199503

main31210-12201iAE101..5F..(SEG,SJ)199503-199505

sub31210-52050

main31210-12210iEE103,104,107,108..MTM199109

sub31210-12280

main31210-12220iAE101..5F..GT199106-199305

sub31210-12221

main31210-32062iCE101,102,104,105,107,109..5F199109

sub31210-12270

main31210-32121iCE100,106,108..5F199106-199804

sub31210-12320

31230BEARING ASSY, CLUTCH RELEASE

main31230-12140iEE10#..MTM199106-199705

sub31230-16061

main31230-12170iAE101..5F199106-199408

sub31230-12171

main31230-20170iAE104,109,CE104,105,109..5F199109

main31230-32060iCE100,101,102,106,107,108..5F199106

main31230-52010iAE100,EE10#..MTM199907

sub31230-52011

31232ACLIP, RELEASE BEARING HUB

main31232-12040iEE10#..MTM199408-199506

main31232-12050iAE100,101..5F199106-199608

main31232-12060iAE100,101..5F199106-199608

main31232-12070iAE100,101..MTM199106-200008

main31232-16031iAE100,EE10#..MTM199506

main31232-20020iAE104,109,CE10#..5F199106

main31232-32050iCE100,101,102,106,107,108..5F199106

main31232-52010iAE100,EE10#..MTM199907

31236BSUPPORT, RELEASE FORK

main31236-12011iAE100..5F199106-199408

main31236-12020iAE101..5F199106-199408

main31236-20060iAE104,109,CE104,105,109..5F199109

main31236-32010iCE100,101,102,106,107,108..5F199106

31250DISC ASSY, CLUTCH

main31250-10120iEE101,102,106..4F199106-199509

main31250-12270iCE104,105,109199109-199906

main31250-12271iCE105199906

sub31250-12272

main31250-12280iCE100,106,108..5F199106-199505

main31250-12281iCE100,106,108..5F199505-199702

main31250-12282iCE100,106,108..5F199702-199804

sub31250-12283

main31250-12290iEE103,104,107,108..MTM199109-199509

main31250-12300iAE100..5F199106-199505

main31250-12310iAE101..5F..(SEG,SJ)199106-199505

sub31250-12380

main31250-12320iAE101..5F..GT199106-199505

main31250-12360iAE101..MTM199605-200008

sub31250-12361

main31250-12370iAE100..5F199505-199608

main31250-12390iEE10#..MTM199511-199804

main31250-12391iEE10#..MTM199804

sub31250-12392

main31250-12400iEE103,104..MTM199509-199511

main31250-17030iAE104,109..5F199109-199812

main31250-17031iAE104,109..5F199812

sub31250-17032

main31250-20280iAE100..5F199608-200008

sub31250-12570

main31250-32100iCE101,102,107..5F199804-199906

main31250-32101iCE101,102,107..5F199906

sub31250-32102

9011908026

main90119-08026

8 parts on this diagram · 2 diagrams in section
