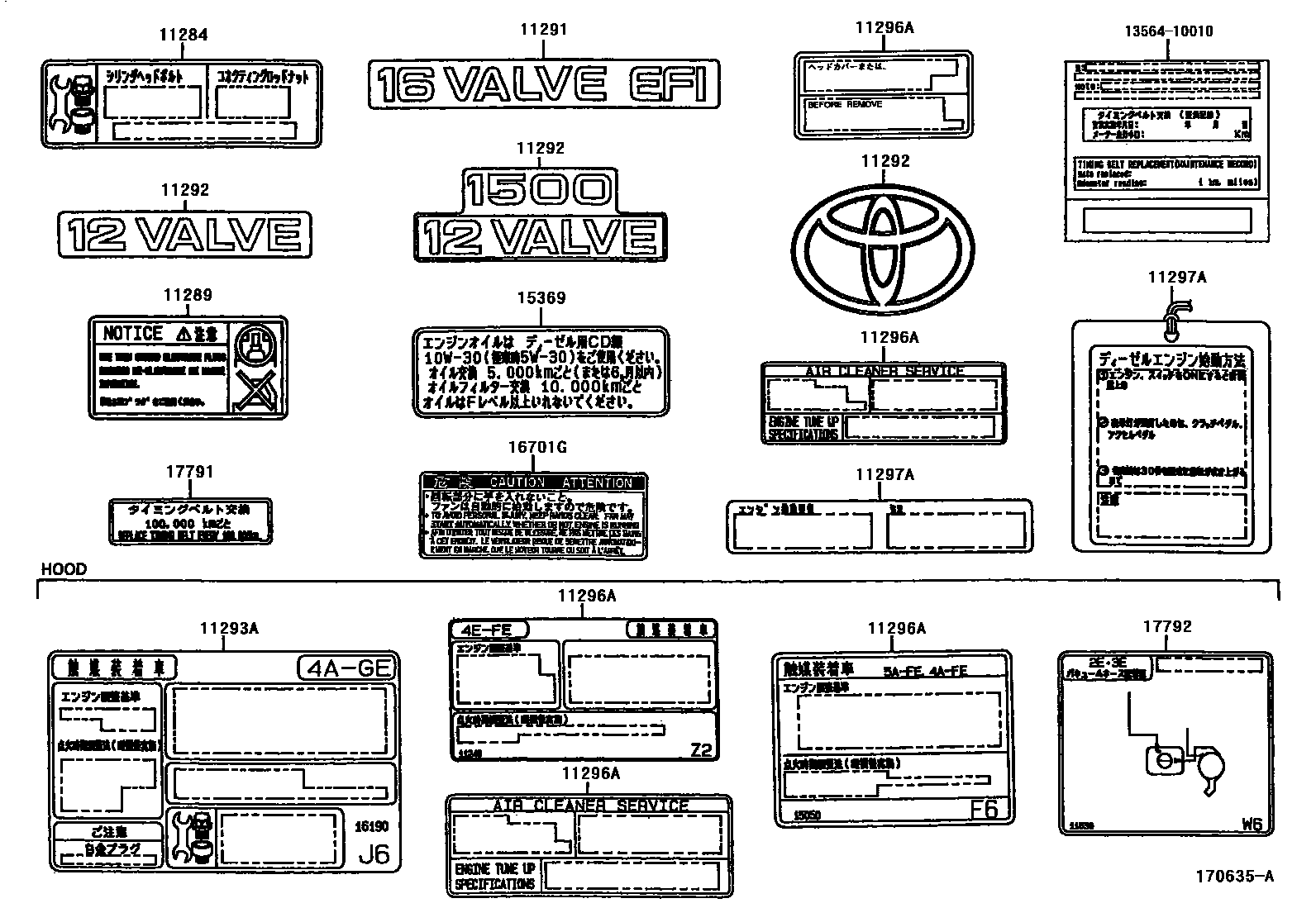

Toyota COROLLA — CAUTION PLATE & NAME PLATE (ENGINE)

11284PLATE, ENGINE BOLT INFORMATION

main11284-16060i4AFE,5AFE..AE10#199106-199311

11289PLATE, SPARK PLUG CAUTION

main11289-62020i4EFE,5EFE..EE10#199704

11291PLATE, ENGINE NAME

main11291-16080i4AFE,5AFE..AE10#199106-199505

main11292-11080i4EFE..EE101199106-199305

11292PLATE, ENGINE NAME, NO.2

main11292-10010i2E..EE106199109-199305

main11292-11030i3E..EE107,108199109-199305

main11292-15040i4AFE,5AFE..AE10#199106-199205

11293APLATE, ENGINE CAUTION

main11296-16190i4AGE..AE101199106-199403

main11296-16191i4AGE..AE101199403-199505

main11296-16250i4AGE..AE101199605-199705

main11296-16350i4AGE..AE101199705-200008

11296ALABEL, ENGINE SERVICE INFORMATION

main11296-10011i2E..EE106..4F199109-199401

main11296-11182i4EFE..EE102199401-199505

main11296-11211i5EFE..EE103,104199401-199505

main11296-11240i4EFE..EE101199305-199505

main11296-11250i2E..EE106199109-199401

main11296-11260i3E..EE107,108199109-199401

main11296-11320i4EFE,5EFE..EE10#199505-199704

main11296-11360i4EFE,5EFE..EE10#199704-200205

main11296-11361i4EFE,5EFE..EE10#200205

main11296-15050i4AFE,5AFE..AE10#199106-199403

main11296-15051i4AFE,5AFE..AE10#199403-199505

main11296-15060i5AFE..AE100199505-200008

main11296-16220i4AFE..AE104199505-199507

main11296-16290i5AFE..AE100..LX,SEL199108-199505

sub11296-16170

main11296-16300i4AFE..AE104,109199507-199704

main11296-16330i4AFE..AE104,109199705-200205

main11296-16400i4AFE..AE109200205

main11296-55020i2C..CE10#199106-199505

AIR CLEANER

main11296-64010i2C,3CE..CE10#199401

CYLINDER HEAD COVER

main11296-64020i2C..CE10#199505-199804

AIR CLEANER

main11296-64031i3CE..CE10#199804-200205

AIR CLEANER

main11296-64032i3CE..CE10#200205

AIR CLEANER

11297APLATE, ENGINE START CAUTION

main11297-10010i2E..EE106..4F199109-199401

main11297-64010i2C..CE10#199106-199402

15369PLATE, ENGINE OIL CAUTION

main15369-54010i2C..CE10#199106-199804

main15369-64010i3CE..CE10#199804

16701GLABEL, CAUTION

main88723-12100i4A#,5AFE,2C,2E,3E,4EFE,5EFE..AE10#,CE10#,EE10#199106-199702

main88723-20081i4A#,5AFE,2C,4EFE,5EFE..AE10#,CE106,108,109,EE10#199704-199705

sub16793-31070

17791LABEL, MAINTENANCE INFORMATION

main17791-11080i4AGE,2E,3E,4EFE..AE101,EE10#199204-199306

main17791-15010i4A#,5AFE,4EFE,5EFE..AE10#,EE10#199608

main17791-55010i2C,3CE..CE10#199204

main17791-74040i4AFE,5AFE..AE10#199204-199212

17792PLATE, ENGINE VACUUM HOSE INFORMATION

main17792-11630i2E,3E..EE106,107,108199109-199401

1356410010LABEL, TIMING BELT REPLACEMENT INFORMATION

main13564-10010

12 parts on this diagram · 1 diagram in section
