Toyota COROLLA — CARBURETOR ASSEMBLY

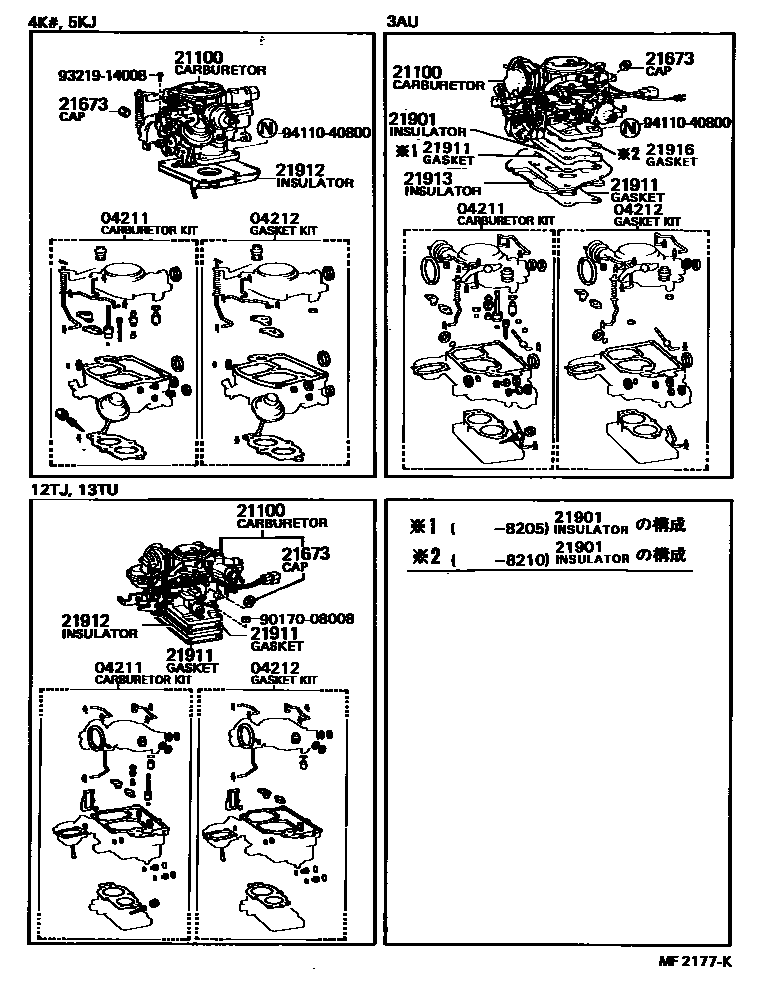

Parts diagram

04211CARBURETOR KIT

main04211-13050i197903-198108

main04211-13070i197903-198108

main04211-13080i197908-198108

main04211-13180i198108-198206

main04211-13181i198206-198301

main04211-13182i198301-198304

main04211-13190i198108-198206

main04211-13191i198206-198301

main04211-13192i198301-198501

main04211-13193i198501-198707

main04211-13230i198108-198206

main04211-13231i198206-198501

main04211-13232i198501-198707

main04211-13240i198108-198206

main04211-13242i198206-198301

main04211-13320i198308-198501

main04211-13321i198501-198707

main04211-15020i197903-197908

main04211-15021i197908-198004

main04211-15022i198004-198108

main04211-15031i197910-198004

main04211-15032i198004-198108

main04211-15080i198108-198304

main04211-18050i197908-198004

main04211-18051i198004-198108

main04211-18070i197908-198004

main04211-18071i198004-198108

main04211-27050i197908-198004

main04211-27051i198004-198108

main04211-27060i197908-198004

main04211-27061i198004-198108

main04211-27070i198108-198308

04212GASKET KIT, CARBURETOR

main04212-13020i197903-198108

main04212-13040i198108-198501

main04212-13041i198501-198707

main04212-15010i197903-198108

main04212-15050i198108-198304

main04212-24030i197903-198108

main04212-28012i197908-198308

21100CARBURETOR ASSY

main21100-13070i197903-198108

main21100-13080i197903-198108

main21100-13140i197908-198108

main21100-13270i198108-198301

main21100-13271i198301-198304

main21100-13280i198108-198301

main21100-13281i198301-198707

main21100-13330i198108-198707

main21100-13400i198108-198301

main21100-13401i198301-198304

main21100-13450i198308-198707

main21100-13470i198308-198707

main21100-15020i197903-198108

main21100-15030i197910-198108

main21100-15230i198108-198211

main21100-15231i198211-198304

main21100-15240i198108-198211

main21100-15241i198211-198304

main21100-18060i197908-198108

main21100-18070i197908-198108

main21100-18080i197911-198108

main21100-18100i197908-198108

main21100-27080i197908-197911

main21100-27100i198108-198308

21673CAP, IDLE LIMIT

main21673-13280i198206-198208

main21673-38020i198206-198208

21901INSULATOR SUB-ASSY, CARBURETOR HEAT, NO.1

main21901-15010i197903-198205

main21901-15011i198205-198210

main21901-15012i198210-198304

21911GASKET, CARBURETOR

main21911-15010×2i197903-198207

main21911-26010×2i197908-198308

main21914-15020×2i198207-198304

21912INSULATOR, CARBURETOR HEAT

main21912-13030i198108-198112

main21912-13031i198112-198707

main21912-24090i197903-198108

main21912-26021i197908-198308

21913INSULATOR, CARBURETOR HEAT, NO.2

main21913-15010i197903-198304

21916GASKET, CARBURETOR, NO.2

main21914-15020i198210-198304

9017008008

main90170-08008

9321914008

main93219-14008

9411040800

main94110-40800

12 parts on this diagram · 1 diagram in section

CARBURETOR ASSEMBLY for Toyota COROLLA

This section contains 12 genuine Toyota parts for the CARBURETOR ASSEMBLY system of the Toyota COROLLA. Key components include: CARBURETOR KIT, GASKET KIT, CARBURETOR, CARBURETOR ASSY, CAP, IDLE LIMIT, INSULATOR SUB-ASSY, CARBURETOR HEAT, NO.1.
