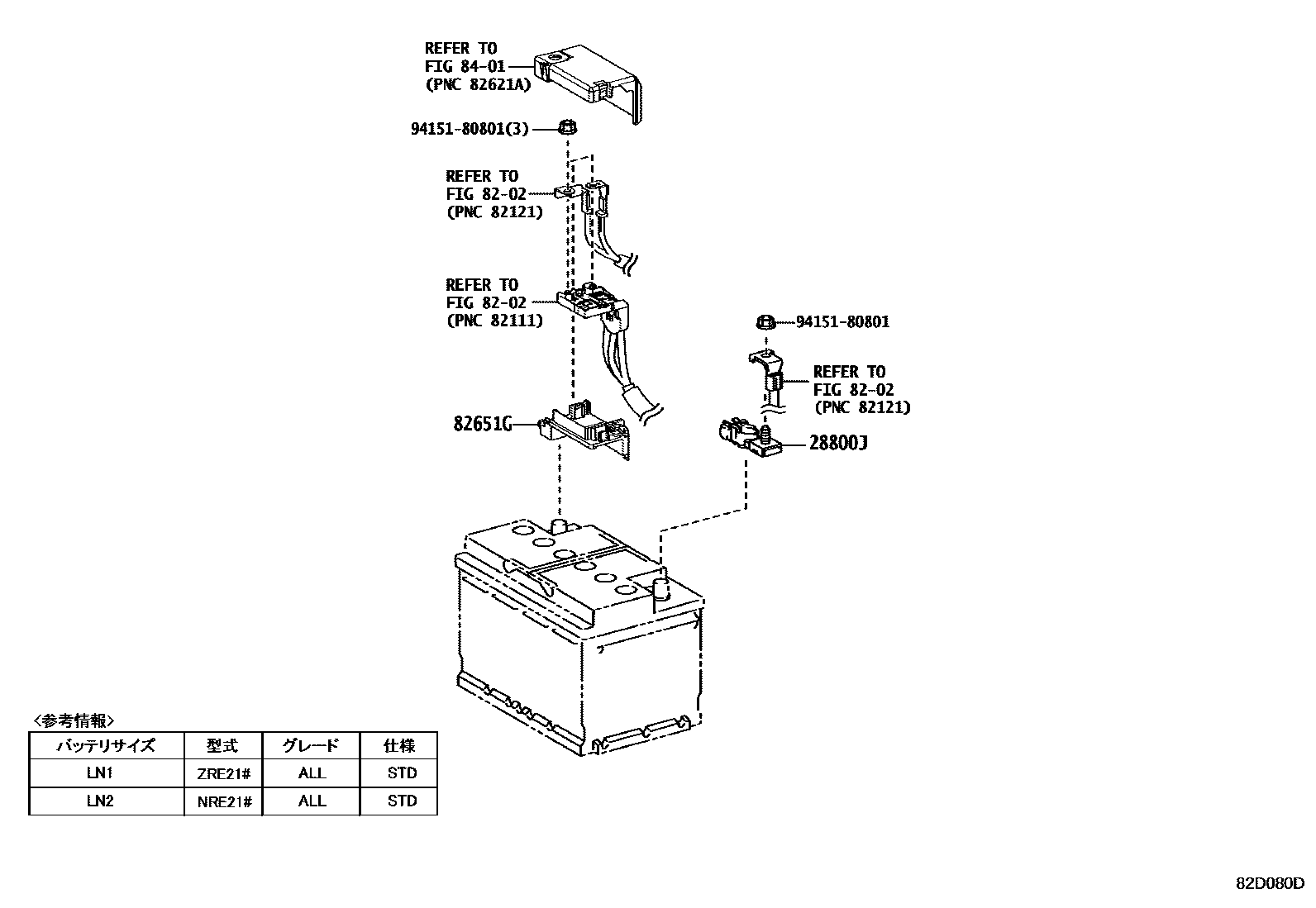

Toyota COROLLA — BATTERY & BATTERY CABLE

28800JTERMINAL, BATTERY NEGATIVE

main90982-06070i201908

8202WIRING & CLAMP

→ Go to FIG 82-02

82651GTERMINAL, BATTERY POSITIVE

main82651-10010i201908

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9415180801

main94151-80801

5 parts on this diagram · 12 diagrams in section

BATTERY & BATTERY CABLE for Toyota COROLLA

This section contains 68 genuine Toyota parts for the BATTERY & BATTERY CABLE system of the Toyota COROLLA. Key components include: TERMINAL, BATTERY POSITIVE, COVER, CONNECTOR(FOR BATTERY TERMINAL), TERMINAL, BATTERY NEGATIVE, REAR SEAT & SEAT TRACK, WIRING & CLAMP.
