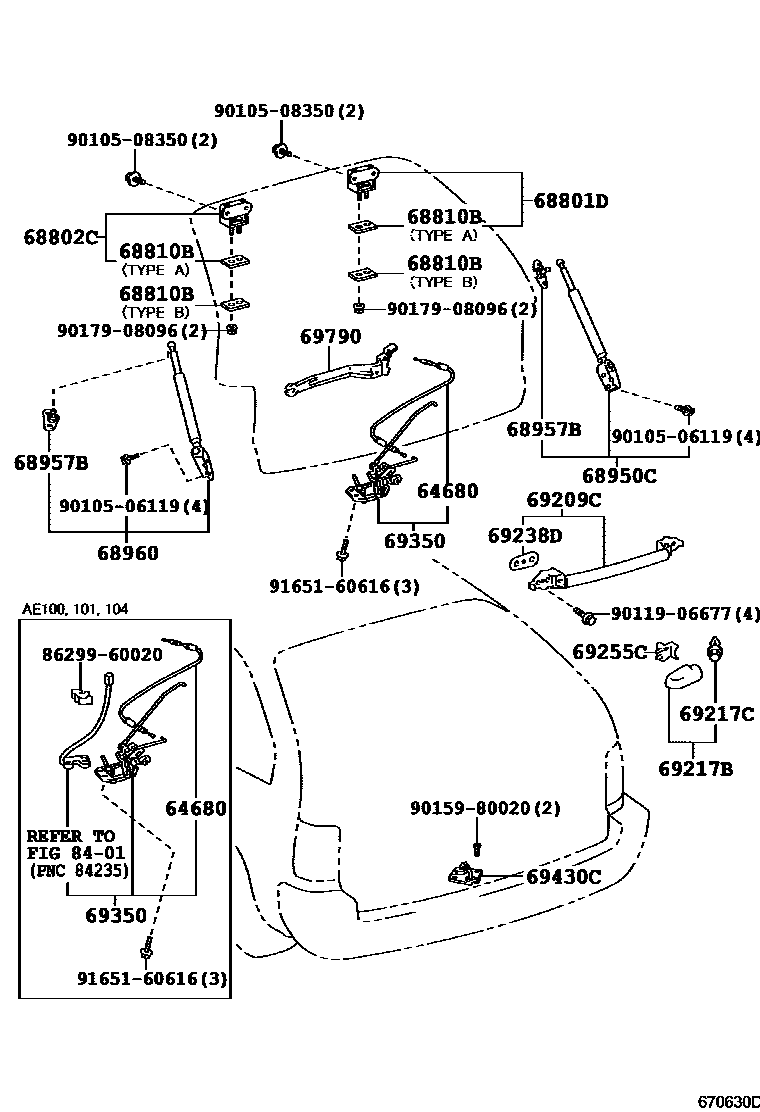

Toyota COROLLA — BACK DOOR LOCK & HANDLE

0001 1 0002 1

64680CABLE ASSY, BACK DOOR LOCK CONTROL

main64680-13010iCE106,108,109,EE102,103,104,106,107,108199109-199510

sub64680-13011

main64680-13011iCE106,108,109,EE10#199510-199603

sub64680-13030

main64680-13031iAE10#,CE10#,EE10#199603-199804

sub64680-13032

main64680-13032iAE100,104..4FC..LT199807

main64680-13032iAE109,CE102,105,107,EE10#199804

main64680-13080iAE100,101,104,CE101199804-200008

68801DHINGE SUB-ASSY, BACK DOOR, RH

main68801-12070iAE101..3DS199205-199505

T=1.6(PAD)

main68801-12090iAE101..3DS199205-199505

T=1.1(PAD)

main68801-13090iAE10#,CE100,106,108,109,EE102,103,104,106,107,108..V,WG199109-199705

main68801-13090iAE100,104..4FC..LT199807

main68801-13110iAE100,101,104,CE100,101199705-200008

68802CHINGE SUB-ASSY, BACK DOOR, LH

main68801-12070iAE101..3DS199205-199505

T=1.6(PAD)

main68801-12090iAE101..3DS199205-199505

T=1.1(PAD)

main68801-13090iAE10#,CE100,106,108,109,EE102,103,104,106,107,108..V,WG199109-199705

main68801-13090iAE100,104..4FC..LT199807

main68801-13110iAE100,101,104,CE100,101199705-200008

68810BPAD, BACK DOOR HINGE

main68838-12010iAE101..3DS199205-199505

main68838-13010iAE10#,CE100,101,102,105,107,EE10#199205-199704

main68838-13010iAE100,CE106,108,109,EE106,107,108..V,WG199109-199804

main68838-14022iAE101..3DS199205-199505

main68863-13010iAE10#,CE100,101,102,105,106,107,108,109,EE102,103,104,106,107,108..V,WG199205

68950CSTAY ASSY, BACK DOOR, RH

main68950-19775iAE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108..CTD,DX,DXJ,L199109

main68950-19785iCE106,EE102,106..MTM..DX199109-199704

main68950-19785iCE106,EE102,106..ATM..DX;CE106,EE102,106..CTD,DXJ,GL;AE109,CE108,109,EE103,107,108199201-200008

main68950-19785iEE104199401

main68950-19795iAE100,104..4FC..LT199807

main68950-19795iAE100,101,104,CE100..WG199109-199705

main68950-19835iAE101..SJ199205-199505

main68950-19845iAE101..SJ199205-199505

main68950-80056iAE100,101,104,CE100,101199705-200008

68957BBRACKET, BACK DOOR STAY, LOWER

main68957-13020iAE10#,CE100,101,102,105,106,107,108,109,EE102,103,104,106,107,108..V,WG199109

68960STAY ASSY, BACK DOOR, LH

main68960-19465iAE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108..CTD,DX,DXJ,L199109

main68960-19475iEE104199401

main68960-19475iCE106,108,109,EE106,107,108199109-199704

main68960-19475iCE106,EE102,106..ATM..DX;CE106,EE102,106..CTD,DXJ,GL;AE109,CE108,109,EE103,107,108199201-200008

main68960-19485iAE100,104..4FC..LT199807

main68960-19485iAE100,101,104,CE100..WG199109-199705

main68960-19525iAE101..SJ199205-199505

main68960-19535iAE101..SJ199205-199505

main68960-19695iAE100,101,104,CE100,101199705-200008

69209CHANDLE SUB-ASSY, BACK DOOR, OUTSIDE

main69209-13020iAE100,101,104,CE100,101..BZT,G199605-200008

69217BCOVER, BACK DOOR OUTSIDE HANDLE

main69217-13010iAE100,101,104,CE100,101..BZT,G199605-200008

69217CRETAINER, BACK DOOR OUTSIDE HANDLE COVER

main90467-08179iAE100,101,104,CE100,101..BZT,G199605-200008

69238DCUSHION, BACK DOOR OUTSIDE HANDLE

main69238-13020iAE100,101,104,CE100,101..BZT,G199605-200008

69255CPROTECTOR, DOOR OUTSIDE HANDLE

main69255-13010iAE100,101,104,CE100,101..BZT,G199605-200008

69350LOCK ASSY, BACK DOOR

main69350-12120iAE101..3DS199205-199505

main69350-13110iCE106,108,109,EE106,107,108..DX,GL,L199109-199401

main69350-13120iAE100..WG199109-199305

main69350-13130iCE106,EE106..CTD199109-199401

main69350-13150iAE100,104,CE100..WG199305-199603

main69350-13170iCE106,EE102..CTD,DXJ199401-199603

sub69350-13172

main69350-13172iCE106,EE102..CTD,DXJ199605-199709

sub69350-13173

main69350-13173iCE106,EE102..CTD,DXJ199709-199804

sub69350-13174

main69350-13174iCE107,EE102..DXJ199804

main69350-13180iCE106,108,109,EE102,103,104..DX,GL,L199401-199603

sub69350-13182

main69350-13182iAE10#,CE10#,EE10#..BZT,DX,G,GL,L,LT199603-199709

sub69350-13183

main69350-13182iCE106,EE102..CTD,DXJ199605-199709

sub69350-13183

main69350-13183iAE109,CE106,108,109,EE10#199709-199804

sub69350-13184

main69350-13184iEE102..5F..DXJ;EE102..3FC..02S200008

main69350-13184iEE103..GL;EE102..4F..02S;AE109,CE102,105,107,EE104;EE102,103..(3FC,4F)..(DX,DXJ)..05S199804

main69350-13184iAE100,104..4FC..LT199807

main69350-13210iAE100,101,104,CE100199705-199709

sub69350-13211

main69350-13211iAE100,101,104,CE100199709-199804

sub69350-13212

main69350-13230iAE100,101,104,CE101199804-200008

69430CSTRIKER ASSY, BACK DOOR LOCK

main69430-12310iAE101..3DS199205-199311

sub69430-12311

main69430-12311iAE101..3DS199311-199505

main69430-13010iAE10#,CE100,101,102,105,106,107,108,109,EE102,103,104,106,107,108..V,WG199109

69790CONTROL ASSY, BACK DOOR LOCK

main69790-13010iAE109,CE102,105,106,107,108,109,EE10#199109-199705

main69790-13010iAE100,104..4FC..LT199807

main69790-13050iAE100,101,104,CE100,101199705-200008

8401

8629960020PAD, SPEAKER

main86299-60020

9010506119

main90105-06119

9010508350

main90105-08350

9011906677

main90119-06677

9015980020

main90159-80020

9017908096

main90179-08096

9165160616

main91651-60616

23 parts on this diagram · 2 diagrams in section
