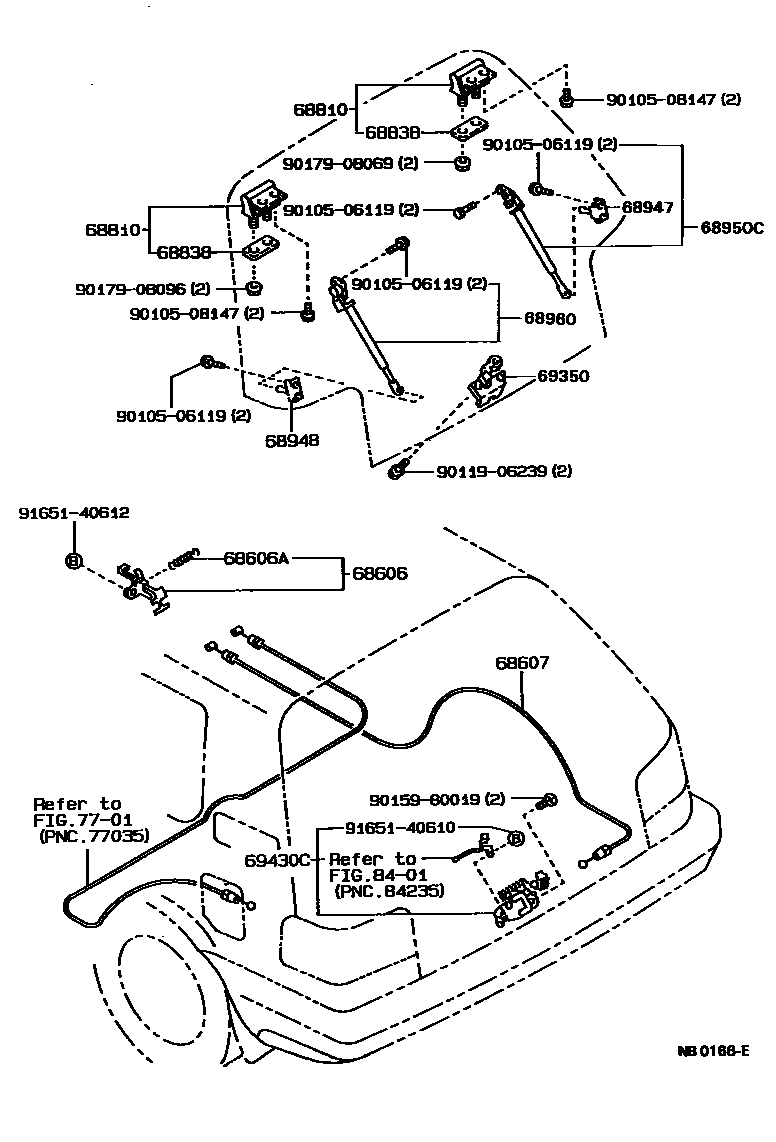

Toyota COROLLA — BACK DOOR LOCK & HANDLE
68606LEVER SUB-ASSY, BACK DOOR LOCK OPEN
68606ASPRING, TENSION(FOR BACK DOOR LOCK OPEN LEVER)
68607CABLE SUB-ASSY, BACK DOOR LOCK CONTROL
68810HINGE ASSY, BACK DOOR, UPPER
68838PAD, BACK DOOR HINGE, NO.1
68947BRACKET, BACK DOOR DAMPER STAY, LOWER RH
68948BRACKET, BACK DOOR DAMPER STAY, LOWER LH
68950CSTAY ASSY, BACK DOOR, RH
68960STAY ASSY, BACK DOOR, LH
69350LOCK ASSY, BACK DOOR
69430CSTRIKER ASSY, BACK DOOR LOCK
7701FUEL TANK & TUBE
8401SWITCH & RELAY & COMPUTER
9010506119
main90105-06119
9010508147
main90105-08147
9011906239
main90119-06239
9015980019
main90159-80019
9017908069
main90179-08069
9017908096
main90179-08096
9165140610
main91651-40610
9165140612
main91651-40612
21 parts on this diagram · 2 diagrams in section
BACK DOOR LOCK & HANDLE for Toyota COROLLA
This section contains 27 genuine Toyota parts for the BACK DOOR LOCK & HANDLE system of the Toyota COROLLA. Key components include: LEVER SUB-ASSY, BACK DOOR LOCK OPEN, SPRING, TENSION(FOR BACK DOOR LOCK OPEN LEVER), CABLE SUB-ASSY, BACK DOOR LOCK CONTROL, HINGE ASSY, BACK DOOR, UPPER, PAD, BACK DOOR HINGE.
