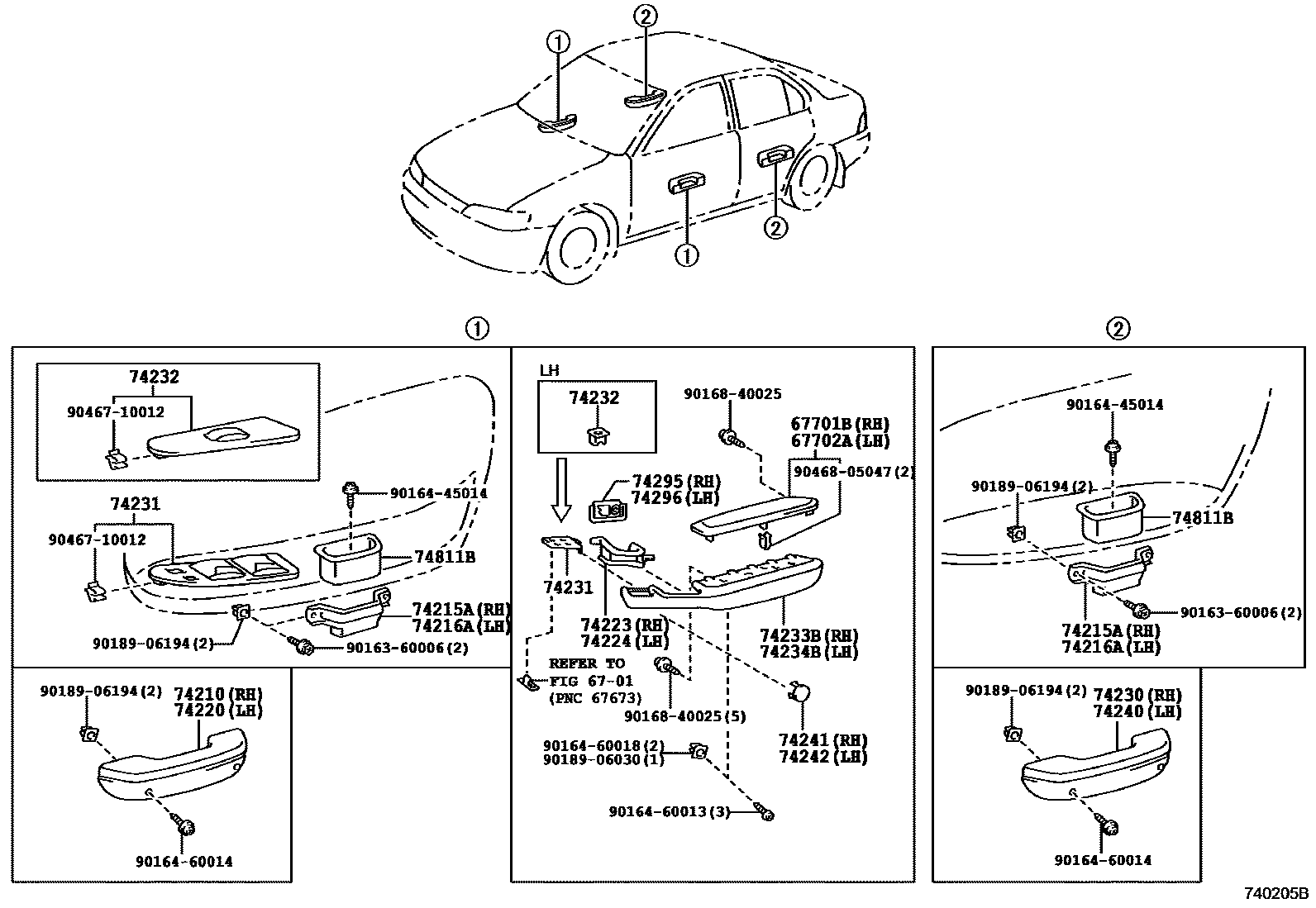

Toyota COROLLA — ARMREST & VISOR

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

6701

67701BCOVER SUB-ASSY, DOOR TRIM, RH

main67701-12560-B0iAE101..3DS199205-199505

SHADOW GRAY,TRIM1#

sub67701-12560

67702ACOVER SUB-ASSY, DOOR TRIM, LH

main67702-12560-B0iAE101..3DS199205-199505

SHADOW GRAY,TRIM1#

sub67702-12560

74210ARMREST ASSY, FRONT, RH

main74210-12220-B0iCE102,105,107..DX,GL,L199804-200008

main74210-12220-B0iAE109,CE106,108,109,EE102,103,104..DX,GL,L199401-200008

main74210-12220-B0iAE100,104,CE100,104,EE101..LX199305-199505

main74210-12220-K0iAE100,104,CE100,104,EE101..LX199305-199505

main74210-16060-K0iAE100,104,CE100,104,EE101..LX199106-199505

TAUPE,TRIM9#

sub74210-16060

sub74210-16061

main74210-16060-P0iAE100,104,109,CE100,102,104,105,106,107,108,109,EE10#..DX,GL,L,LX199106-200008

SHADOW GRAY,TRIM1#

sub74210-16060

sub74210-16061

main74210-16060-W3iAE100,104,CE100,104,EE101..LX199106-199305

DARK BLUE,TRIM8#

sub74210-16060

sub74210-16061

main74210-16120-B1iAE109,CE10#,EE10#200008

SHADOW GRAY,TRIM1#

74215ABASE, DOOR ARMREST RH

main74215-12050iAE10#,CE100,104,EE101..G,GT,LT,SEG,SEL,XE199106-200008

74216ABASE, DOOR ARMREST, LH

main74215-12050iAE100,101,104,CE100,101,104,EE101..(4DS,WG)..(BZT,G,GT,LT,SEG,SEL,XE)199106-200008

74220ARMREST ASSY, FRONT, LH

main74210-16060-K0iAE100,104,CE100,104,EE101..LX199106-199505

TAUPE,TRIM9#

sub74210-16060

sub74210-16061

main74210-16060-P0iAE100,104,109,CE100,102,104,105,106,107,108,109,EE10#..DX,GL,L,LX199106-200008

SHADOW GRAY,TRIM1#

sub74210-16060

sub74210-16061

main74210-16060-W3iAE100,104,CE100,104,EE101..LX199106-199305

DARK BLUE,TRIM8#

sub74210-16060

sub74210-16061

main74220-12150-B0iAE100,104,CE100,104,EE101..LX199305-199505

main74220-12150-K0iAE100,104,CE100,104,EE101..LX199305-199505

main74220-16100-B1iAE109,CE10#,EE10#200008

SHADOW GRAY,TRIM1#

74223CAP, DOOR ARMREST, RH

main74223-12110-B0iAE101..3DS..GT199205-199505

main74223-12110-B0iAE101..SJ199205-199505

SHADOW GRAY,TRIM1#

main74223-12120-B0iAE101..SJ199205-199405

SHADOW GRAY,TRIM1#

74224CAP, DOOR ARMREST, LH

main74224-12060-B0iAE101..SJ199205-199405

SHADOW GRAY,TRIM1#

main74224-12070-B0iAE101..3DS..GT199205-199505

W(*PW),SHADOW GRAY,TRIM1#

main74224-12070-B0iAE101..3DS..GT199205-199505

SHADOW GRAY,TRIM1#

74230ARMREST ASSY, REAR, RH

main74210-16060-K0iAE100,104,CE100,104,EE101..LX199106-199505

TAUPE,TRIM9#

sub74210-16060

sub74210-16061

main74210-16060-P0iAE100,104,CE100,104,EE101..DX,LX199106-199505

SHADOW GRAY,TRIM1#

sub74210-16060

sub74210-16061

main74210-16060-W3iAE100,104,CE100,104,EE101..LX199106-199305

DARK BLUE,TRIM8#

sub74210-16060

sub74210-16061

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-10011-B0iAE100,104,CE100,104,EE101..LX199305-199505

SHADOW GRAY,TRIM1#

main74231-10011-K0iAE100,104,CE100,104,EE101..LX199305-199505

TAUPE,TRIM9#

main74231-12130-K0iAE10#,CE100,104..SEG,SEL,XE199106-199505

TAUPE,TRIM9#

sub74231-12131

sub74231-12130

main74231-12130-P0iAE10#,CE100,104,EE101..(4DS,WG)..(G,GT,LT,LX,SEG,SEL,XE)199106-199505

SHADOW GRAY,TRIM1#

sub74231-12131

sub74231-12130

main74231-12130-W3iAE10#,CE100,104..SEG,SEL,XE199106-199305

DARK BLUE,TRIM8#

sub74231-12131

sub74231-12130

main74231-12131-P0iAE100,101,104,CE100199505-199704

SHADOW GRAY,TRIM1#

sub74231-12130

main74231-12150-B0iAE101..3DS199205-199505

SHADOW GRAY,TRIM1#

sub74231-12200

main74231-12250-B1iAE109,CE10#,EE10#200008-200206

SHADOW GRAY,TRIM1#

sub74231-12250

main74231-12310-B0iAE100,104..LT200004-200008

sub74231-12310

main74231-12310-B0iAE100,104..LT199904-200004

sub74231-12310

main74231-12310-B0iAE100,104..4FC..LT199807

sub74231-12310

main74231-12310-B0iAE101199705-200008

SHADOW GRAY,TRIM1#

sub74231-12310

main74231-12310-B1iAE100,104,CE100,101199705-200008

DK. CHARCOAL,TRIM1#

sub74231-12310

main74231-13010-B0iCE106,108,109,EE102,103,104..DX,GL,L199401-199508

SHADOW GRAY,TRIM1#

main74231-13011-B0iAE109,CE106,108,109,EE10#..DX,GL,L199508-199704

SHADOW GRAY,TRIM1#

main74231-13030-B0iAE109,CE102,105,106,107,108,109,EE10#..DX,GL,L199704-200008

SHADOW GRAY,TRIM1#

main74231-13040iAE100,104..4FC..G199804-199904

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-10021-B0iAE100,104,CE100,104,EE101..LX199305-199505

SHADOW GRAY,TRIM1#

main74232-10021-K0iAE100,104,CE100,104,EE101..LX199305-199505

TAUPE,TRIM9#

main74232-12110-B0iAE100,104,CE100,101199705-200008

DK.CHARCOAL,TRIM1#

sub74232-12110

main74232-12110-K0iAE10#,CE100,104..SEG,SEL,XE199106-199505

TAUPE,TRIM9#

sub74232-12110

main74232-12110-P0iAE100,104..4FC..LT199807

sub74232-12110

main74232-12110-P0iAE10#,CE100,104,EE101..(4DS,WG)..(G,GT,LT,LX,SEG,SEL,XE)199106-200008

SHADOW GRAY,TRIM1#

sub74232-12110

main74232-12110-P0iAE100,104..LT199904-200004

sub74232-12110

main74232-12110-P0iAE100,104..LT200004-200008

sub74232-12110

main74232-12110-W3iAE10#,CE100,104,EE101..LX,SEG,SEL,XE199106-199305

DARK BLUE,TRIM8#

sub74232-12110

main74232-12180-B0iAE101..3DS199205-199206

SHADOW GRAY,TRIM1#

sub74232-12181

main74232-12181-B0iAE101..3DS199206-199505

SHADOW GRAY,TRIM1#

main74232-13010iAE100,104..4FC..G199804-199904

74233BPANEL, FRONT DOOR ARMREST BASE, LOWER RH

main74233-12050-B0iAE101..3DS..GT199205-199505

sub74233-12050

main74233-12050-B0iAE101..3DS..GT199205-199505

SHADOW GRAY,TRIM1#

sub74233-12050

main74233-12060-B0iAE101..SJ199205-199405

SHADOW GRAY,TRIM1#

74234BPANEL, FRONT DOOR ARMREST BASE, LOWER LH

main74234-12060-B0iAE101..SJ199205-199405

SHADOW GRAY,TRIM1#

main74234-12090-B0iAE101..3DS..GT199205-199505

main74234-12090-B0iAE101..SJ199205-199505

SHADOW GRAY,TRIM1#

74240ARMREST ASSY, REAR, LH

main74210-16060-K0iAE100,104,CE100,104,EE101..LX199106-199505

TAUPE,TRIM9#

sub74210-16060

sub74210-16061

main74210-16060-P0iAE100,104,CE100,104,EE101..DX,LX199106-199505

SHADOW GRAY,TRIM1#

sub74210-16060

sub74210-16061

main74210-16060-W3iAE100,104,CE100,104,EE101..LX199106-199305

DARK BLUE,TRIM8#

sub74210-16060

sub74210-16061

74241PLUG, FRONT DOOR ARMREST, RH

main74241-12021-B0iAE101..SJ199205-199405

SHADOW GRAY,TRIM1#

74242PLUG, FRONT DOOR ARMREST, LH

main74242-12011-B0iAE101..SJ199205-199405

SHADOW GRAY,TRIM1#

74295PLATE, DOOR ARMREST, NO.3

main74295-12010iAE101..SJ199205-199405

74296PLATE, DOOR ARMREST, NO.4

main74296-12010iAE101..SJ199205-199405

74811BHANDLE, DOOR PULL

main74811-12060-B0iAE100,104,CE100,101199705-200008

DK.CHARCOAL,TRIM1#

sub74811-12060

main74811-12060-K0iAE10#,CE100,104,EE101..LX,SEG,SEL,XE199106-199505

TAUPE,TRIM9#

sub74811-12060

main74811-12060-P0iAE100,104..LT200004-200008

sub74811-12060

main74811-12060-P0iAE10#,CE100,104,EE101..(4DS,WG)..(G,GT,LT,LX,SEG,SEL,XE)199106-200008

SHADOW GRAY,TRIM1#

sub74811-12060

main74811-12060-P0iAE100,104..LT199904-200004

sub74811-12060

main74811-12060-P0iAE100,104..4FC..LT199807

sub74811-12060

main74811-12060-W3iAE10#,CE100,104,EE101..LX,SEG,SEL,XE199106-199305

DARK BLUE,TRIM8#

sub74811-12060

9016360006

main90163-60006

9016445014

main90164-45014

9016460013

main90164-60013

9016460014

main90164-60014

9016460018

main90164-60018

9016840025

main90168-40025

9018906030

main90189-06030

9018906194

main90189-06194

9046710012

main90467-10012

9046805047

main90468-05047

30 parts on this diagram · 6 diagrams in section
