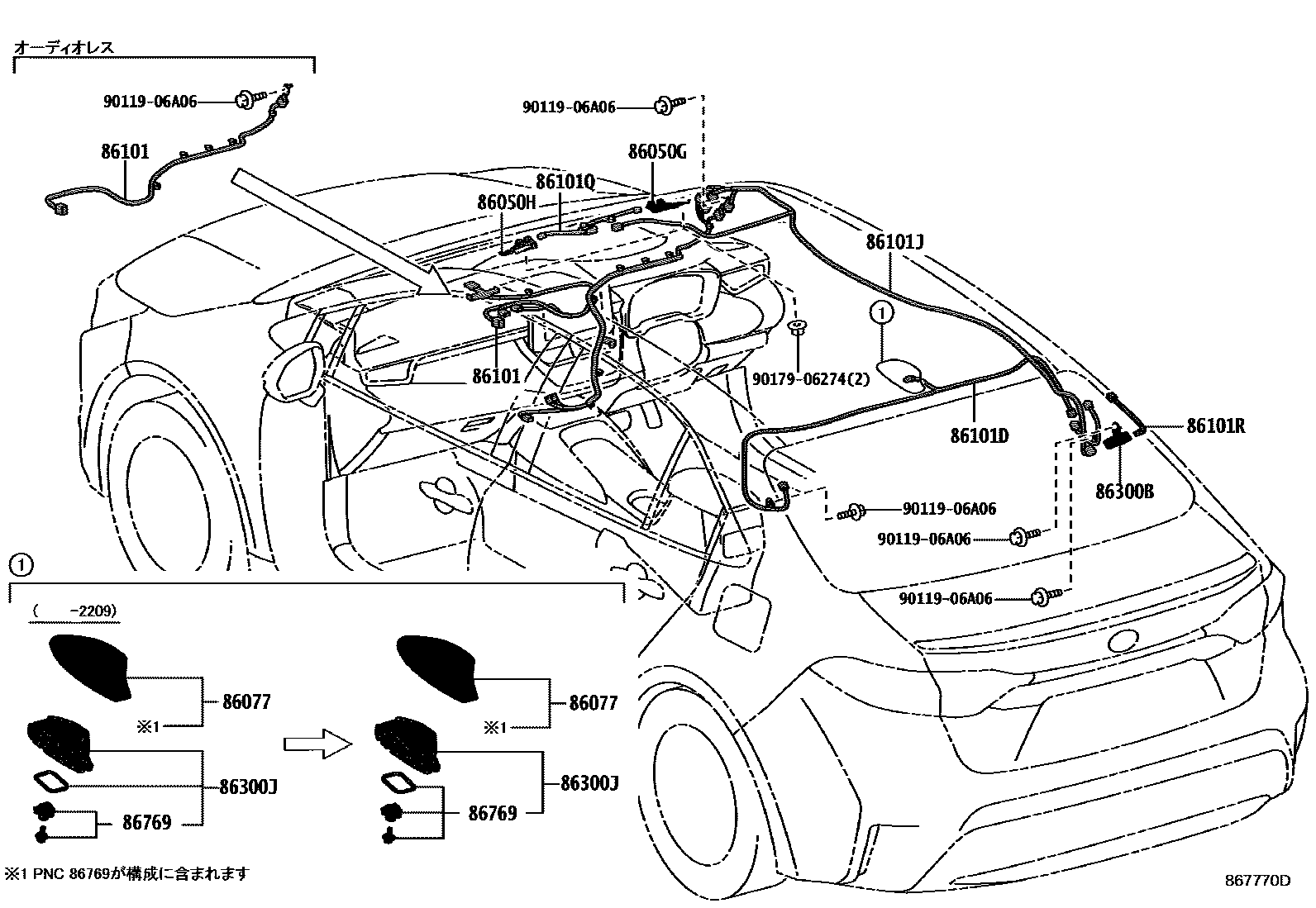

Toyota COROLLA — ANTENNA
86050GANTENNA ASSY, TELEVISION, NO.1 RH
86050HANTENNA ASSY, TELEVISION, NO.1 LH
86077COVER KIT, ANTENNA
SUPER WHITE 2,040
PLATINUM WHITE PEARL MC.,089
SILVER ME.,1F7
MASSIVE GRAY,1L6
ATTITUDE BLACK MC.,218; ATTITUDE BLACK MC.,218 ,2PS ,2YD
SPARKLING BLACK PEARL CS.,220
RED MC.,3T3
BLUE ME.,8X7
SUPER WHITE 2,040
WHITE PEARL CS.,070 ,2KR
PLATINUM WHITE PEARL MC.,089
main86077-12050-B0iNRE210,ZRE212,ZWE211,214..SED..(HBDWB,WB); ZRE212,ZWE211,214..SED..(GX,HBDGX,HBDS,S)201908
SILVER ME.,1F7 ,2KS; SILVER ME.,2KS
CELESTITE GRAY ME.,1K3
SLATE GRAY ME.,1K9
main86077-12050-C0iNRE210,ZRE212,ZWE211,214..SED..(GX,HBDGX,HBDS,S,WB); ZWE211,214..SED..HBDWB201908
BLACK MC.,209 ,2KR ,2KS ,2PU ,2TT; BLACK MC.,209 ,2KR ,2KS ,2PU ,2TT ,2YK
SPARKLING BLACK PEARL CS.,220
SCARLET ME.,3U4
RED MC.,3T3
main86077-12050-J0iNRE210,ZRE212,ZWE211,214..SED..(HBDWB,WB); ZRE212,ZWE211,214..SED..(GX,HBDGX,HBDS,S)201908
DK.BLUE M.M.,2TT; DK.BLUE M.M.,2TT ,8W7
SUPER WHITE 2,040
WHITE PEARL CS.,070 ,2KR
PLATINUM WHITE PEARL MC.,089
main86077-12060-B0iNRE210,ZRE212,ZWE211,214..WG..(HBDWB,WB); ZRE212,ZWE211,214..WG..(GX,HBDGX,HBDS,S)201909
SILVER ME.,1F7 ,2KS; SILVER ME.,2KS
CELESTITE GRAY ME.,1K3
BLACK MC.,209 ,2KR ,2PU
SPARKLING BLACK PEARL CS.,220
SCARLET ME.,3U4
RED MC.,3T3
RED M.M.,3R3
ARMY ROCK ME.,4V0
main86077-12060-J0iNRE210,ZRE212,ZWE211,214..WG..(HBDWB,WB); ZRE212,ZWE211,214..WG..(GX,HBDGX,HBDS,S)201909
DK.BLUE M.M.,2TT; DK.BLUE M.M.,2TT ,8W7
BLUE ME.,8X7
SUPER WHITE 2,040
PLATINUM WHITE PEARL MC.,089
SILVER ME.,1F7
MASSIVE GRAY,1L6
CEMENT GRAY ME.,1H5
ATTITUDE BLACK MC.,040 ,089 ,1F7 ,218; ATTITUDE BLACK MC.,040 ,089 ,1F7 ,218 ,2PS ,2YD ,3T3 ,8X7; ATTITUDE BLACK MC.,089 ,1L6 ,218 ,2PS ,2YD ,3T3
SPARKLING BLACK PEARL CS.,220
RED MC.,3T3
BLUE ME.,8X7
86101CORD SUB-ASSY, ANTENNA
86101DCORD SUB-ASSY, ANTENNA, NO.3
main86101-12Q00supersedes 86101-12T10iMZEA17,ZWE215,219..WG..(G,HBDG,HBDWB,WB); MZEA17,ZWE215,219..WG..(HBDX,X)202210-202404
86101JCORD SUB-ASSY, ANTENNA, NO.2
main86101-12P70supersedes 86101-12T30iMZEA17,ZWE215,219..WG..(G,HBDG,HBDWB,WB); MZEA17,ZWE215,219..WG..(HBDX,X)202210-202404
86101QCORD SUB-ASSY, ANTENNA, NO.4
86101RCORD SUB-ASSY, ANTENNA, NO.5
86300BANTENNA ASSY, AMPLIFIER, NO.1
86300JANTENNA ASSY, ROOF
86769HOUSING, ROOF ANTENNA
9011906A06
main90119-06A06
9017906274
main90179-06274
13 parts on this diagram · 2 diagrams in section
ANTENNA for Toyota COROLLA
This section contains 17 genuine Toyota parts for the ANTENNA system of the Toyota COROLLA. Key components include: REAR WASHER, ANTENNA ASSY, TELEVISION, NO.1 RH, ANTENNA ASSY, TELEVISION, NO.1 LH, ANTENNA ASSY, TELEVISION, NO.2 RH, ANTENNA ASSY, TELEVISION, NO.2 LH.
