Toyota COROLLA — ANTENNA

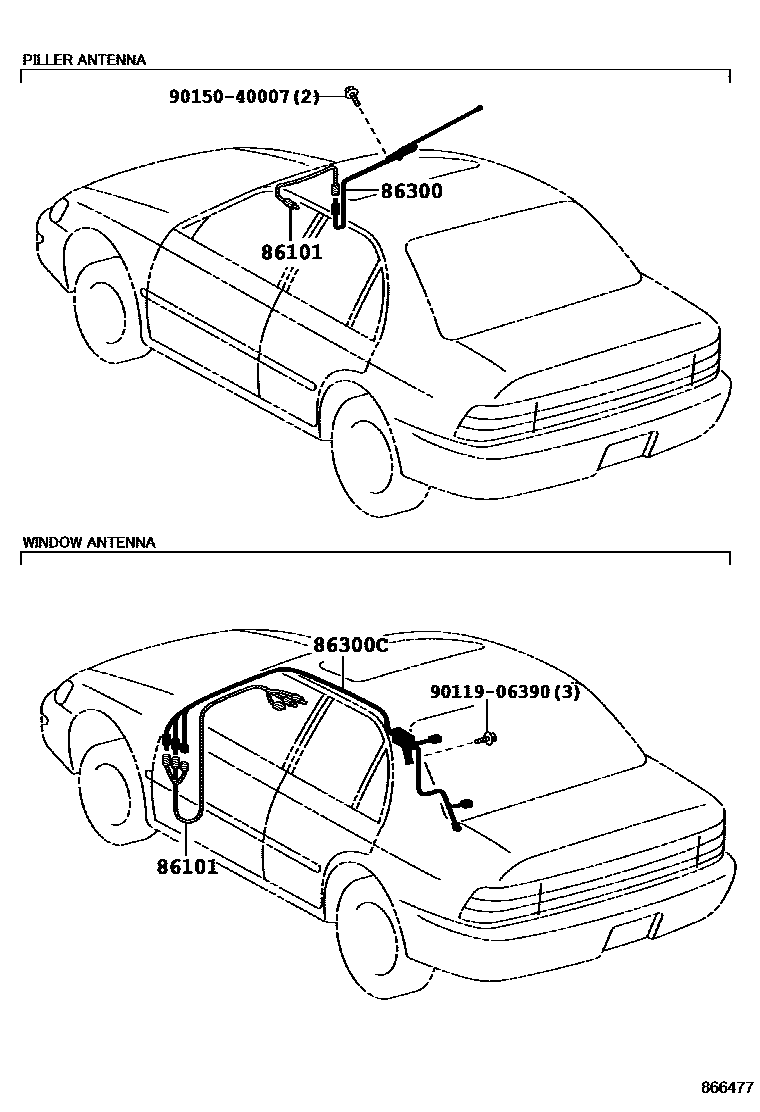

Parts diagram

86101CORD SUB-ASSY, ANTENNA

main86101-12120i199305-199505

main86101-12130i199106-199305

main86101-12140i199106-199305

main86101-12190i199205-199505

INSTRUMENTAL PANEL

main86101-12200i199205-199505

ROOF

main86101-12210i199205-199505

BACK

main86101-12220i199305-199405

main86101-12230i199405-199505

main86101-12240i199305-199405

86300ANTENNA ASSY, W/HOLDER

main86300-12390i199106-199305

main86300-12391i199705

W/GREEN TAPE; W/WHITE TAPE

86300CANTENNA ASSY, AMPLIFIER, NO.2

main86300-12420i199305-199505

main86300-12430i199106-199305

main86300-12490i199305-199505

main86300-12510i199106-199505

main86300-12540i199205-199505

main86300-12550i199305-199405

9011906390

main90119-06390

9015040007

main90150-40007

5 parts on this diagram · 3 diagrams in section

ANTENNA for Toyota COROLLA

This section contains 5 genuine Toyota parts for the ANTENNA system of the Toyota COROLLA. Key components include: CORD SUB-ASSY, ANTENNA, ANTENNA ASSY, W/HOLDER, ANTENNA ASSY, AMPLIFIER, NO.2.
