Toyota COROLLA — ACCELERATOR LINK

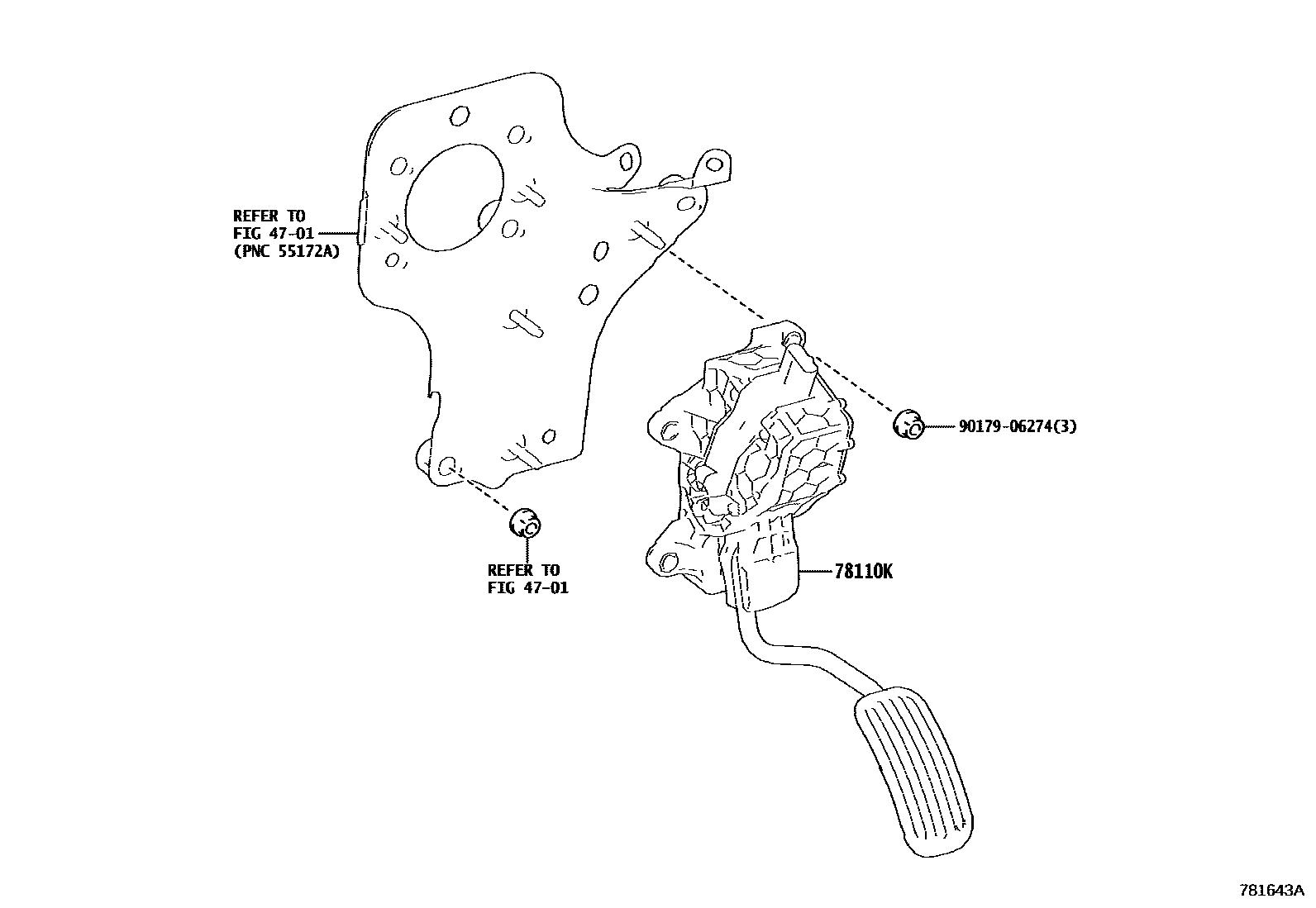

Parts diagram

4701BRAKE PEDAL & BRACKET

→ Go to FIG 47-01

78110KROD ASSY, ACCELERATOR PEDAL(W/SENSOR)

main78110-12090i201908-202010

main78110-12091i202011-202504

main78110-47071i202404

9017906274

main90179-06274

3 parts on this diagram · 1 diagram in section
