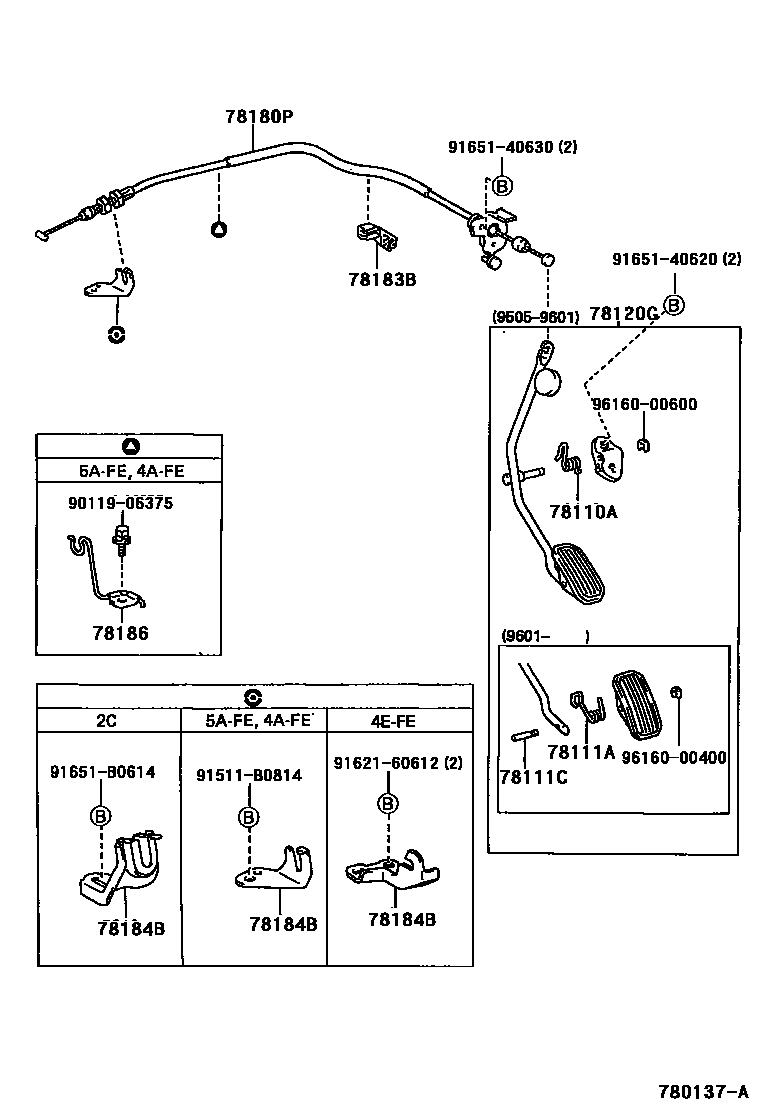

Toyota COROLLA — ACCELERATOR LINK
78110ASPRING (FOR ACCELERATOR PEDAL ROD)
78111PEDAL, ACCELERATOR
78111ASPRING (FOR ACCELERATOR PEDAL)
78111CPIN (FOR ACCELERATOR PEDAL)
78120GROD ASSY, ACCELERATOR PEDAL
78180PCABLE ASSY, ACCELERATOR CONTROL
78183BCLAMP, ACCELERATOR CONTROL CABLE
78184BBRACKET, ACCELERATOR CONTROL CABLE
78186SUPPORT, ACCELERATOR CONTROL CABLE, NO.1
9011906375
main90119-06375
91511B0814
main91511-B0814
9162160612
main91621-60612
9165140620
main91651-40620
9165140630
main91651-40630
91651B0614
main91651-B0614
9616000400
main96160-00400
9616000600
main96160-00600
17 parts on this diagram · 2 diagrams in section
ACCELERATOR LINK for Toyota COROLLA
This section contains 22 genuine Toyota parts for the ACCELERATOR LINK system of the Toyota COROLLA. Key components include: SPRING (FOR ACCELERATOR PEDAL ROD), BUSH (FOR ACCELERATOR PEDAL ROD), PEDAL, ACCELERATOR, SPRING (FOR ACCELERATOR PEDAL), PIN (FOR ACCELERATOR PEDAL).
