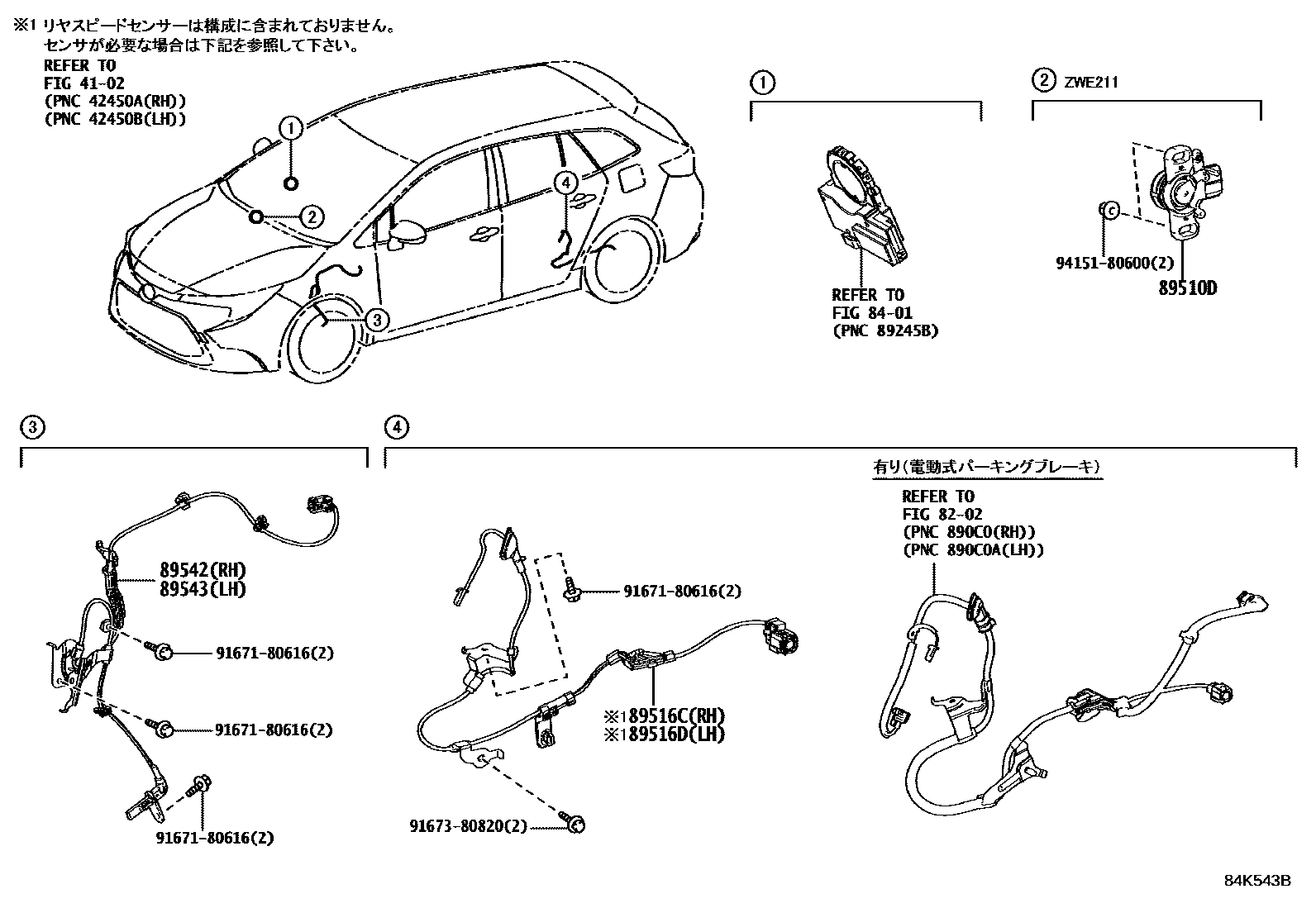

Toyota COROLLA — ABS & VSC
4102REAR AXLE SHAFT & HUB
8202WIRING & CLAMP
8401SWITCH & RELAY & COMPUTER
89510DSENSOR ASSY, BRAKE PEDAL STROKE
89516CWIRE, SKID CONTROL SENSOR, RH
89516DWIRE, SKID CONTROL SENSOR, LH
89542SENSOR, SPEED, FRONT RH
89543SENSOR, SPEED, FRONT LH
9167180616
main91671-80616
9167380820
main91673-80820
9415180600
main94151-80600
11 parts on this diagram · 4 diagrams in section
ABS & VSC for Toyota COROLLA
This section contains 19 genuine Toyota parts for the ABS & VSC system of the Toyota COROLLA. Key components include: REAR AXLE SHAFT & HUB, WIRING & CLAMP, SWITCH & RELAY & COMPUTER, SENSOR ASSY, BRAKE PEDAL STROKE, WIRE, SKID CONTROL SENSOR, RH.
