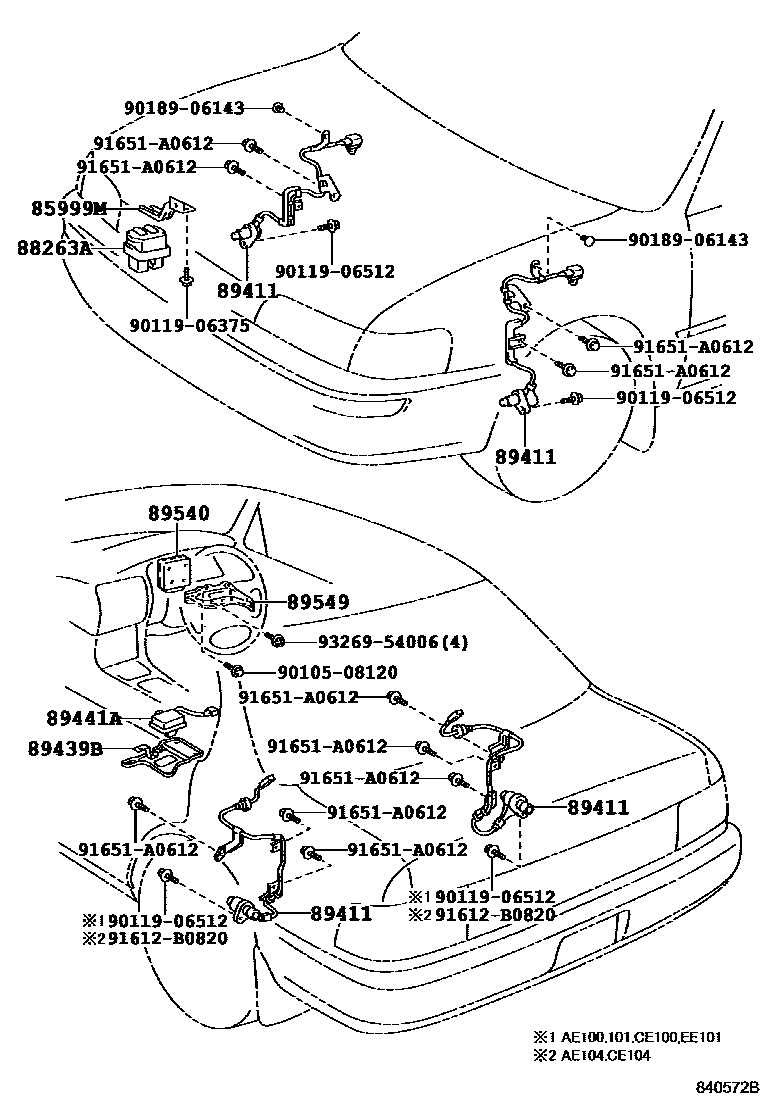

Toyota COROLLA — ABS & VSC

0001 1 0002 1SUPER STRUT SUSPENSION 0003 1 0005 1

85999MBRACKET, RELAY

main85999-12170iAE10#,CE100,104,EE101199106-199305

main85999-12320iAE10#,CE100,104,EE101199305-199605

main85999-12360iAE100,101,104,CE100,101199605-200008

88263ARELAY, SKID CONTROL

main88263-12070iAE10#,CE100,104,EE101199305-199604

sub88263-12080

main88263-12090iAE10#,CE100,104,EE101199106-199305

main88263-32060iAE109,CE102,105,107,EE10#199604-199605

main88263-35070iAE100,101,104,CE100,101199605-200008

89411SENSOR, SPEED

main89542-12020iAE10#,CE100,104,EE101199106-199505

FRONT RH

main89542-12031iAE101..3DS..GT199205-199505

main89542-12040iAE100,101,104,CE100199505-199804

FRONT RH

main89543-12020iAE10#,CE100,104,EE101199106-199505

FRONT LH

main89543-12031iAE101..3DS..GT199205-199505

main89543-12040iAE100,101,104,CE100199505-199804

FRONT LH

main89545-12020iAE100,101,CE100,EE101199106-199505

REAR RH

main89545-12030iAE104199109-200008

REAR RH

main89545-12040iAE100,CE100199505-200008

REAR RH

main89545-12050iCE102,107,EE10#199804-199807

REAR RH

sub89545-12051

main89545-12051iCE102,107,EE10#199807

REAR RH

main89545-12060iAE109,CE105199804

REAR RH

main89546-12020iAE100,101,CE100,EE101199106-199505

REAR LH

main89546-12030iAE101,104199109-200008

REAR LH

main89546-12040iAE100,101,CE100,101199505-200008

REAR LH

main89546-12050iCE102,107,EE10#199804-199807

REAR LH

sub89546-12051

main89546-12051iCE102,107,EE10#199807

REAR LH

main89546-12060iAE109,CE105199804

REAR LH

89439BBRACKET, SENSOR

main89439-12050iAE104,CE104199109-199305

89441ASENSOR, DECELERATION

main89440-12020iAE101..3DS..GT199205-199505

main89440-12050iAE104199505-199605

main89440-12060iAE104,109,CE105199605-199804

main89441-12030iAE104,CE104199109-199305

89540COMPUTER ASSY, SKID CONTROL

main89540-12140iAE100,101,CE100,EE101199305-199505

main89540-12240iAE100,CE100199505-199605

main89540-12290iAE104199505-199605

main89540-12340iAE100,101,CE100199605-199705

sub89540-12450

main89540-12350iAE104199605-199804

main89540-12351iAE104199804-200008

main89540-12450iAE100,101,CE100199705-199801

sub89540-12451

main89540-12451iAE100,101,CE100,101199801-200008

main89540-12480iCE102,107,EE10#199804

main89540-12540iAE109,CE105199804

main89541-12030iAE100,101,CE100,EE101199106-199305

main89541-12040iAE100,101,CE100,EE101199106-199305

main89541-12050iAE101..3DS..GT199205-199305

main89541-12060iAE104,CE104199109-199305

main89541-12090iAE101..3DS..GT199305-199505

main89541-12100iAE104,CE104199305-199505

89549BRACKET, SKID CONTROL COMPUTER

main89549-12030iAE10#,CE100,104,EE101199109-199505

main89549-12040iAE101..3DS..GT199305-199505

9010508120

main90105-08120

9011906375

main90119-06375

9011906512

main90119-06512

9018906143

main90189-06143

91612B0820

main91612-B0820

91651A0612

main91651-A0612

9326954006

main93269-54006

14 parts on this diagram · 4 diagrams in section
