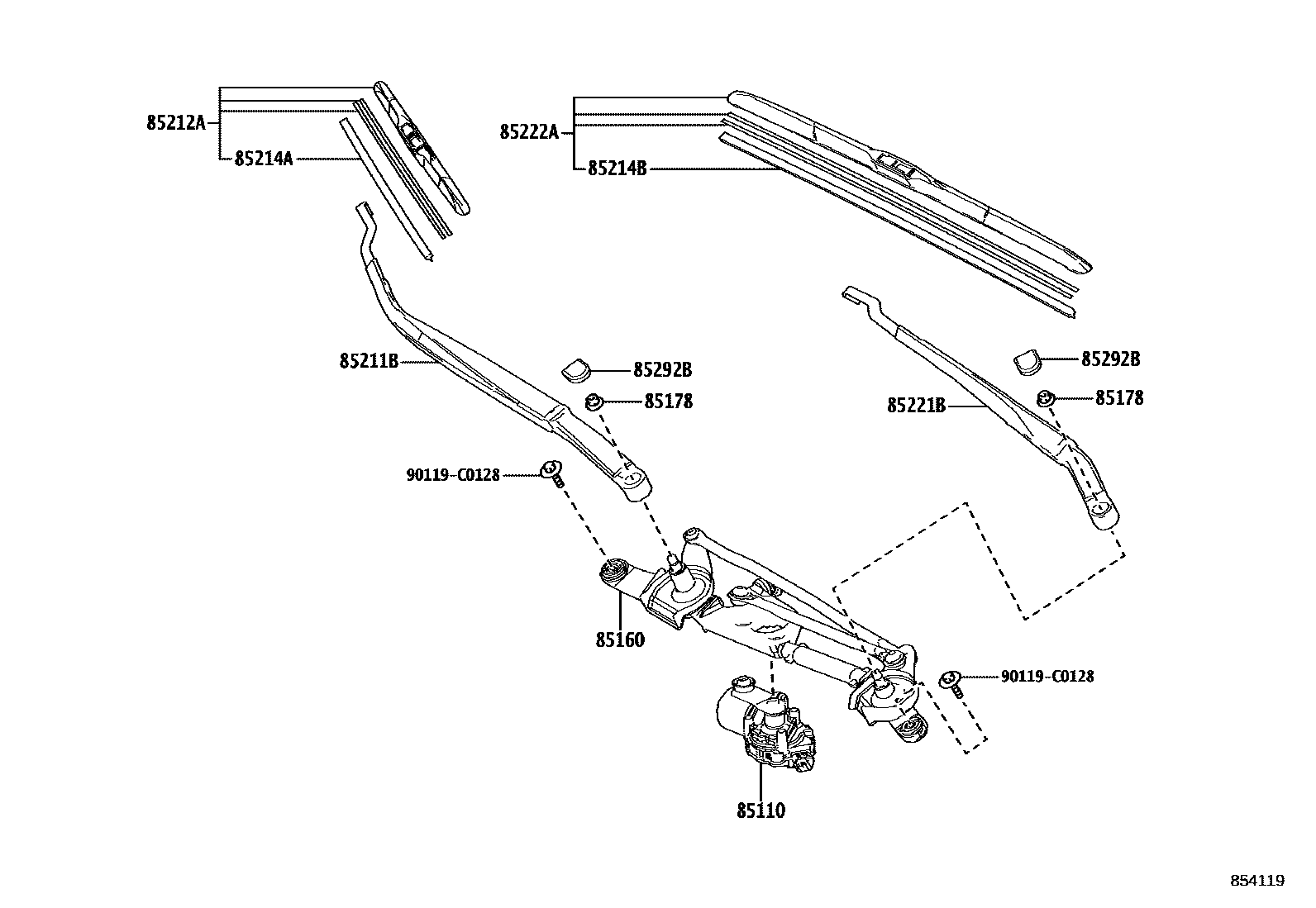

Toyota COROLLA — WINDSHIELD WIPER

0001 1 0003 1

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-02580iMZEA11,ZWE211202005-202304

(L)

main85110-12C30iMZEA11,ZWE211202005-202304

(J)

85160LINK ASSY, WINDSHIELD WIPER

main85150-02510iNRE210..HI201908-202006

85178NUT (FOR FRONT WIPER ARM SETTING)

main90182-C0012×2iNRE210..HI202007-202304

85211BARM, FRONT WIPER, RH

main85211-02510iNRE210..HI201908-202006

main85211-02540iMZEA17,ZWE219202305

85212ABLADE, FR WIPER, RH

main85212-02310iNRE210..HI201908-202006

main85212-02450iMZEA17,ZWE219202305

85214ARUBBER, WIPER, RH

main85214-02260iMZEA11,ZWE211201908-202304

main85214-02430iMZEA17,ZWE219202305

85214BRUBBER, WIPER, LH

main85214-02420iNRE210..ENTRY,MID202109

(L)

main85214-02440iMZEA17,ZWE219202305

main85214-28080iMZEA11,ZWE211201908-202304

85221BARM, FRONT WIPER, LH

main85221-02530iNRE210..HI201908-202006

main85221-02560iMZEA17,ZWE219202305

85222ABLADE, FR WIPER, LH

main85222-02500iNRE210..HI;MZEA11,ZWE211202109-202304

(L)

main85222-02510iMZEA17,ZWE219202305

main85222-52270iNRE210..HI201908-202006

85292BCAP, FRONT WIPER ARM HEAD

main85292-0D070×2iNRE210..HI201908-202006

90119C0128

main90119-C0128

11 parts on this diagram · 2 diagrams in section
