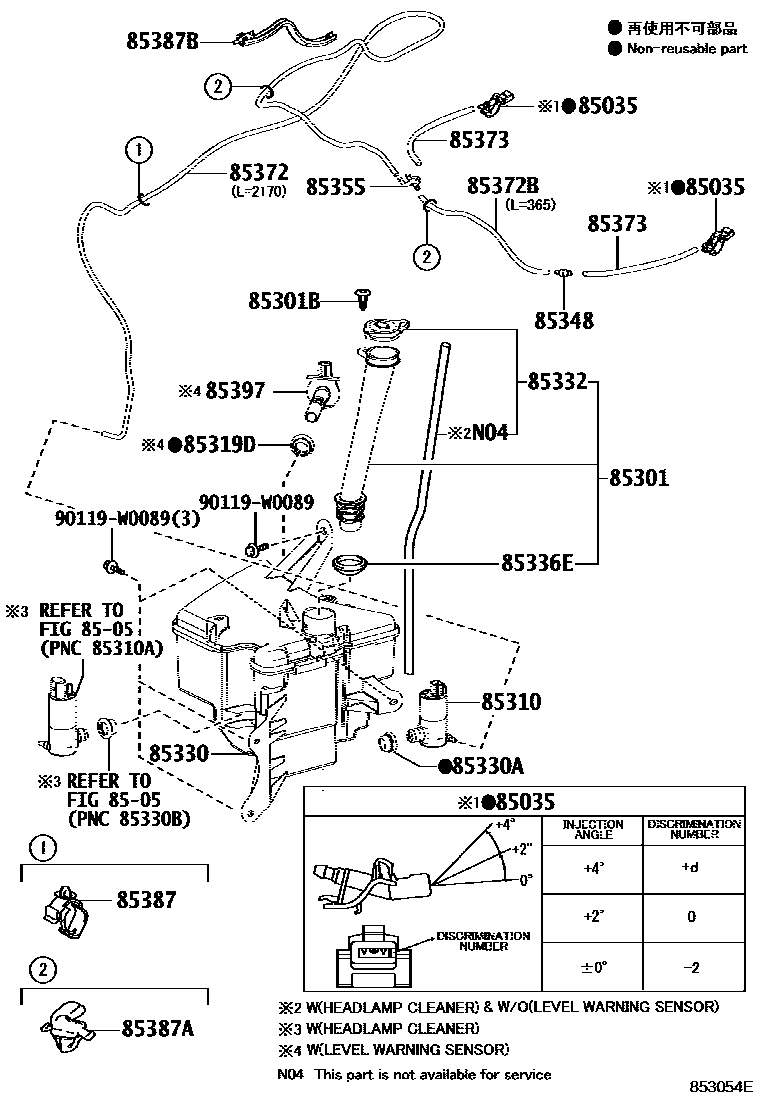

Toyota COROLLA — WINDSHIELD WASHER
85035NOZZLE SUB-ASSY, WASHER
ANGLE 0
ANGLE +4
8505
85301INLET SUB-ASSY, WASHER
HEADLAMP CLEANER-WITH
85301BCLIP, WASHER
85319DPACKING, FRONT WASHER
SUB COLD AREA SPEC&WASHER FLUID LEVEL WARNING SENSOR-WITH
HEADLAMP CLEANER-WITH&WASHER FLUID LEVEL WARNING SENSOR-WITH
85330JAR ASSY, WINDSHIELD WASHER
SUB COLD AREA SPEC&WASHER FLUID LEVEL WARNING SENSOR-WITH
HEADLAMP CLEANER-WITH
HEADLAMP CLEANER-WITH&WASHER FLUID LEVEL WARNING SENSOR-WITH
85330ABUSH, WINDSHIELD WASHER JAR
85332CAP, WINDSHIELD WASHER JAR
HEADLAMP CLEANER-WITH
85336EPACKING, WINDSHIELD WASHER INLET HOSE
85348JOINT, WINDSHIELD WASHER HOSE, NO.1
85355VALVE, WINDSHIELD WASHER HOSE
85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
*318:REFER ILLUST.
85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
*318:REFER ILLUST.
85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
L=170
85387CLAMP NO.1 (FOR WINDSEIELD WASHER)
85387ACLAMP, WASHER, NO.2
85387BCLAMP, WASHER, NO.3
85397SWITCH ASSY,LEVEL WARNING
SUB COLD AREA SPEC&WASHER FLUID LEVEL WARNING SENSOR-WITH
90119W0089
main90119-W0089
20 parts on this diagram · 4 diagrams in section
