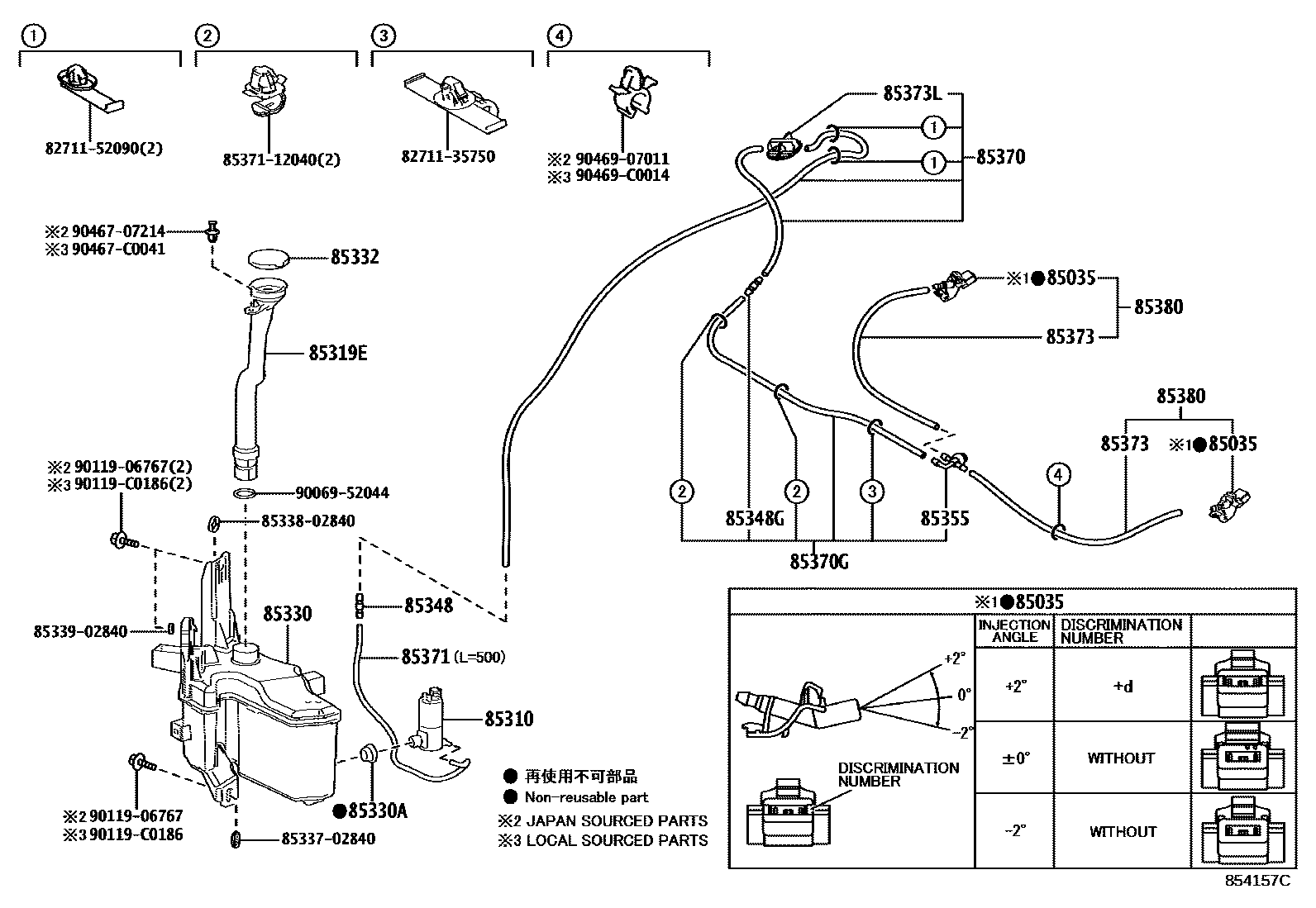

Toyota COROLLA — WINDSHIELD WASHER

0001 1 0003 1W(AUTOMATIC HIGH BEAM) 0004 1

85035NOZZLE SUB-ASSY, WASHER

main85381-0A080×2iNRE210..ENTRY,MID202305

ANGLE 0

main85381-0A090×2iNRE210..ENTRY,MID202305

ANGLE +2

main85381-0A100×2iNRE210..ENTRY,MID202305

ANGLE -2

main85381-0E090×2iMZEA11..HI202111-202304

ANGLE 0

main85381-0E100×2iMZEA11..HI202111-202304

HEADLAMP-LED & WITH(*AHB),ANGLE +2

main85381-0E110×2iMZEA11..HI202111-202304

HEADLAMP-LED & WITH(*AHB),ANGLE -2

main85381-12360×2iNRE210..HI202007-202304

ANGLE 0

main85381-12440×2iNRE210..ENTRY,MID201908-202305

ANGLE +2

main85381-33080×2iNRE210..HI201908-202006

ANGLE -2

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-02080iNRE210..HI201908-202006

sub85330-02081

main85330-02100iMZEA11..HI202111-202304

HEADLAMP-LED & WITH(*AHB)

main85330-02120iZWE211;NRE210..HI;MZEA11..ENTRY,MID202205-202304

85319EINLET WASHER

main85319-02530iMZEA11..HI202111-202304

HEADLAMP-LED & WITH(*AHB)

main85319-02840iMZEA11..HI201908-202111

main85319-02842iNRE210..ENTRY,MID202305

85330JAR ASSY, WINDSHIELD WASHER

main85315-02530iMZEA11..HI202111-202304

HEADLAMP-LED & WITH(*AHB)

main85315-02840iMZEA17,ZWE219202305

85330ABUSH, WINDSHIELD WASHER JAR

main85336-02840iMZEA11..HI201908-202111

main90069-52046iMZEA11..HI202111-202304

HEADLAMP-LED & WITH(*AHB)

85332CAP, WINDSHIELD WASHER JAR

main85316-02530iMZEA11..HI202111-202304

HEADLAMP-LED & WITH(*AHB)

main85316-02840iNRE210..HI201908-202006

main85316-08050iZWE211;NRE210..HI;MZEA11..ENTRY,MID202110-202304

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85375-02530iMZEA11..HI202111-202304

HEADLAMP-LED & WITH(*AHB)

main85375-05050iZWE211;MZEA11..ENTRY,MID201908-202304

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85375-02530iMZEA11..HI202111-202304

HEADLAMP-LED & WITH(*AHB)

main85375-02650iMZEA17,ZWE219202305

85355VALVE, WINDSHIELD WASHER HOSE

main85376-02650iNRE210..HI201908-202006

main85376-02750iMZEA11..HI202111-202304

HEADLAMP-LED & WITH(*AHB)

85370HOSE ASSY, WINDSHIELD WASHER

main85370-02640iNRE210..HI202007-202304

main85370-02740iMZEA11..HI202111-202304

HEADLAMP-LED & WITH(*AHB)

85370GHOSE ASSY, WINDSHIELD WASHER, NO.2

main85370-02650iNRE210..HI201908-202006

main85370-02750iMZEA11..HI202111-202304

HEADLAMP-LED & WITH(*AHB)

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90069-46097iNRE210..HI201908-202006

main90069-46131iMZEA11..HI202111-202304

L=273,HEADLAMP-LED & WITH(*AHB)

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90068-33343×2iNRE210..ENTRY,MID201908-202305

L=425

main90069-46135×2iMZEA11..HI202111-202304

L=175,HEADLAMP-LED & WITH(*AHB),ANGLE 0

main90069-46136×2iMZEA11..HI202111-202304

L=175,ANGLE +2

main90069-46137×2iMZEA11..HI202111-202304

L=175,HEADLAMP-LED & WITH(*AHB),ANGLE -2

85373LGROMMET, WASHER

main85373-02110iNRE210..HI201908-202006

main85373-33030iMZEA11..HI202111-202304

HEADLAMP-LED & WITH(*AHB)

85380NOZZLE & HOSE ASSY, FR WASHER

main85380-02670×2iMZEA11..HI202111-202304

ANGLE 0

main85380-02680×2iMZEA11..HI202111-202304

HEADLAMP-LED & WITH(*AHB),ANGLE +2

main85380-02740×2iNRE210..HI201908-202006

ANGLE 0

main85380-02750×2iNRE210..ENTRY,MID201908-202305

ANGLE +2

main85380-02760×2iMZEA11..HI201908-202111

ANGLE -2

main85380-02800×2iMZEA11..HI202111-202304

HEADLAMP-LED & WITH(*AHB),ANGLE -2

main85380-02870×2iNRE210..ENTRY,MID202305

ANGLE 0

main85380-02880×2iNRE210..ENTRY,MID202305

ANGLE +2

main85380-02890×2iNRE210..ENTRY,MID202305

ANGLE -2

8271135750WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-35750

8271152090WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-52090

8533702840CASE, LEVEL WARNING SWITCH

main85337-02840

8533802840HOSE, BREATHER

main85338-02840

8533902840CAP SUB-ASSY, RESERVE TANK

main85339-02840

8537112040HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-12040

9006952044

main90069-52044

9011906767

main90119-06767

90119C0186

main90119-C0186

9046707214

main90467-07214

90467C0041

main90467-C0041

9046907011

main90469-07011

90469C0014

main90469-C0014

28 parts on this diagram · 3 diagrams in section
