Toyota COROLLA — VENTURI

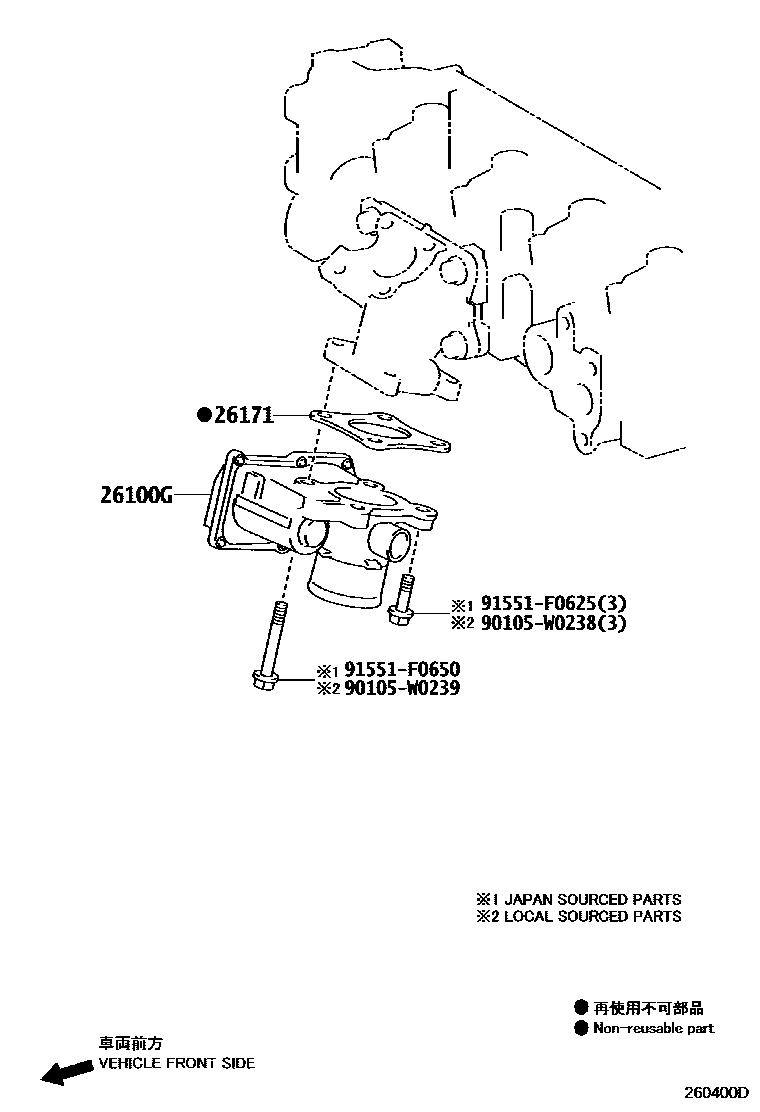

Parts diagram

26100GBODY ASSY, DIESEL THROTTLE

main26100-0N030i201306-201605

26171GASKET, VENTURI

main26171-33030i201306-201605

90105W0238

main90105-W0238

90105W0239

main90105-W0239

91551F0625

main91551-F0625

91551F0650

main91551-F0650

6 parts on this diagram · 1 diagram in section
