Toyota COROLLA — V-BELT

1106TIMING GEAR COVER & REAR END PLATE

→ Go to FIG 11-06

1601WATER PUMP

→ Go to FIG 16-01

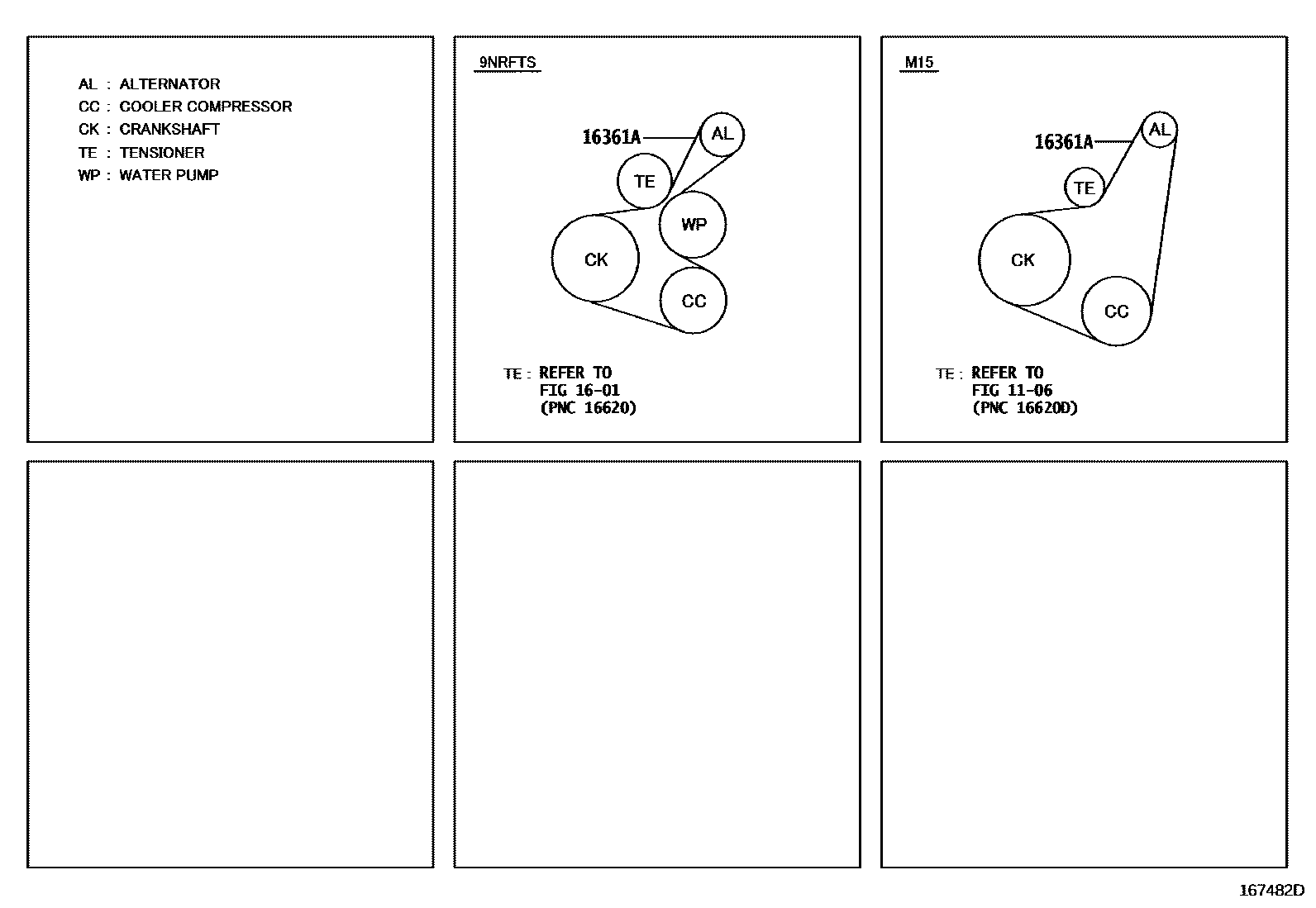

16361ABELT, V(FOR FAN & ALTERNATOR)

main90916-C2019i201908-202006

main90916-C2020i202101-202304

3 parts on this diagram · 1 diagram in section

V-BELT for Toyota COROLLA

This section contains 3 genuine Toyota parts for the V-BELT system of the Toyota COROLLA. Key components include: TIMING GEAR COVER & REAR END PLATE, WATER PUMP, BELT, V(FOR FAN & ALTERNATOR).
