Toyota COROLLA — V-BELT

1601WATER PUMP

→ Go to FIG 16-01

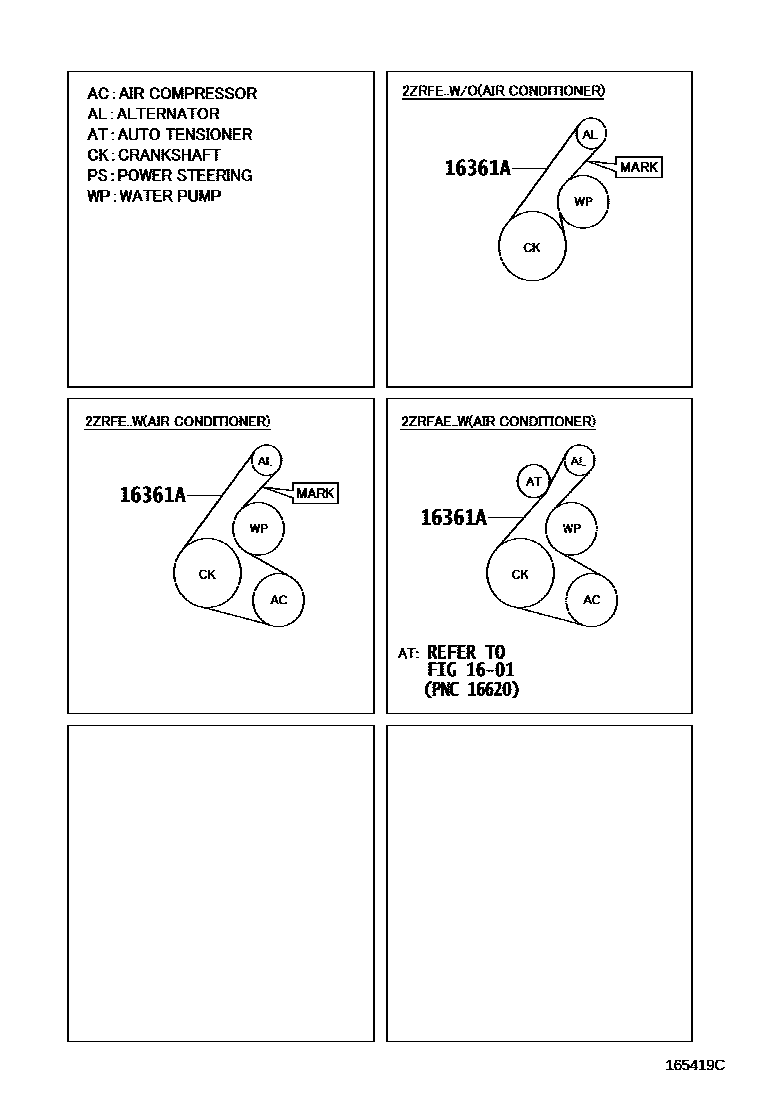

16361ABELT, V(FOR FAN & ALTERNATOR)

main90916-02679i201308-201608

MARK 90916-02679

main90916-02706i201608

(J)

main90916-A2016i201608

(L)

main90916-A2024i201608

(L)

main90916-A2017i201404-201608

AIR CONDITIONER-WITHOUT,(L)

main99366-K0910i201404-201608

AIR CONDITIONER-WITHOUT,(J)

2 parts on this diagram · 1 diagram in section

V-BELT for Toyota COROLLA

This section contains 2 genuine Toyota parts for the V-BELT system of the Toyota COROLLA. Key components include: WATER PUMP, BELT, V(FOR FAN & ALTERNATOR).
