Toyota COROLLA — TIRE PRESSURE WARNING SYSTEM

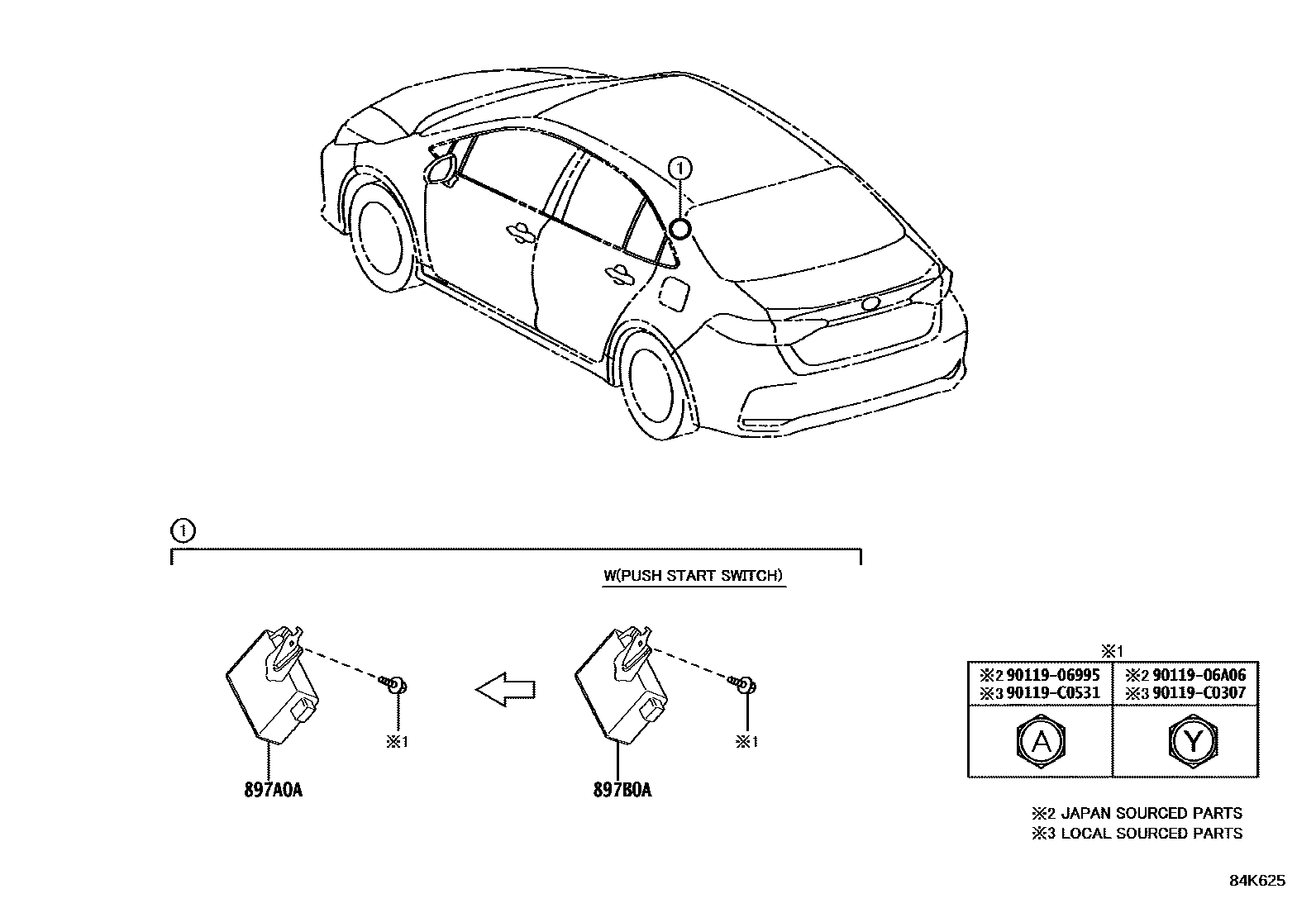

Parts diagram

897A0ARECEIVER ASSY,DOOR CONTROL & TIRE PRESSURE MONITORING SYSTEM

main897A0-02240i202306

main897A0-02170i201908-202209

SMART ENTRY-WITHOUT & WITH(PUSH START SWITCH)

897B0ARECEIVER ASSY, ELECTRICAL KEY & TPMS

main897B0-02110i201908-202006

main897B0-02270i202305

9011906995

main90119-06995

9011906A06

main90119-06A06

90119C0307

main90119-C0307

90119C0531

main90119-C0531

6 parts on this diagram · 2 diagrams in section

TIRE PRESSURE WARNING SYSTEM for Toyota COROLLA

This section contains 6 genuine Toyota parts for the TIRE PRESSURE WARNING SYSTEM system of the Toyota COROLLA. Key components include: RECEIVER ASSY,DOOR CONTROL & TIRE PRESSURE MONITORING SYSTEM, RECEIVER ASSY, ELECTRICAL KEY & TPMS.
