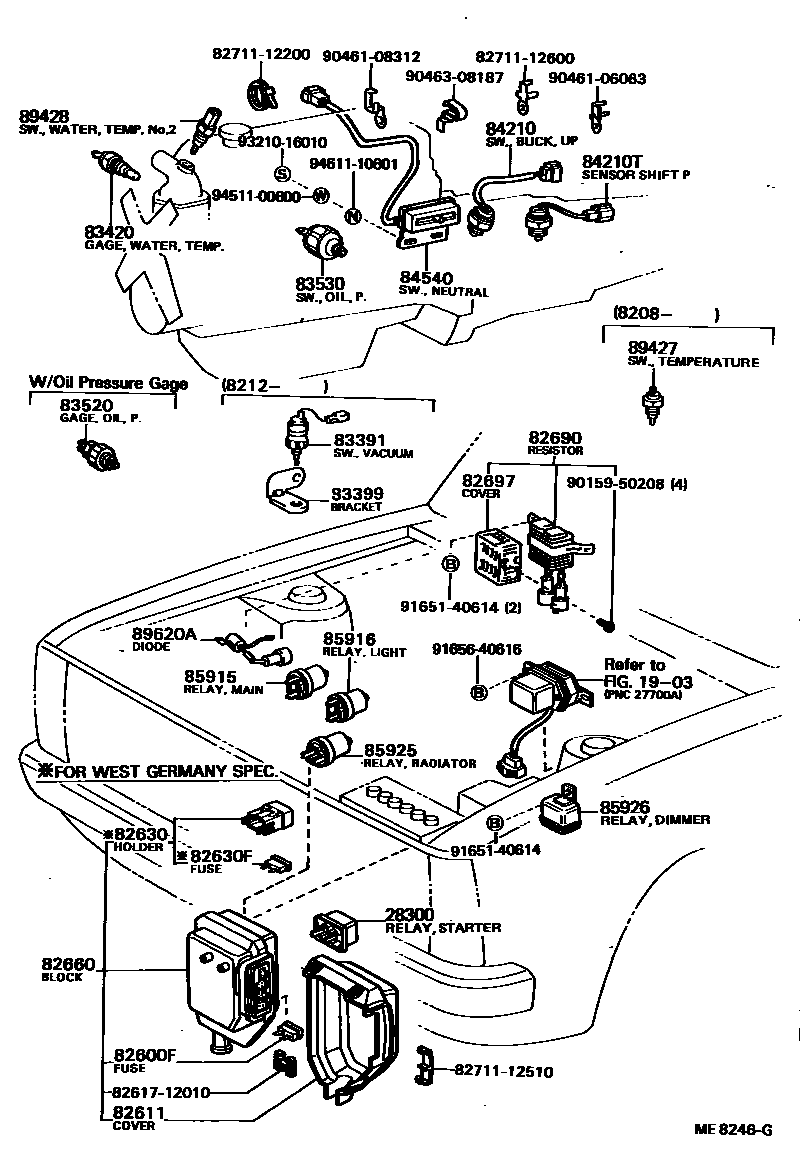

Toyota COROLLA — SWITCH & RELAY & COMPUTER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1

1903

28300RELAY ASSY, STARTER

main28300-24031i4K..KE70..2FC197908-198305

sub28300-16010

82600BLOCK ASSY, FUSE

main82600-12100iKE70,TE7#..DV,SED,WG197908-198410

main82600-12110iTE7#..SE..SA197908-198204

main82600-12120iAE71,CE70,KE70,TE71..(DV,SED,WG)..(EUR,GEN,SA,SAA)198108-198707

main82600-12140iTE72..(DX,SE)..(ARL,EUR);KE70,TE71..(CP,LB)..(EUR,GEN,SAA)198108-198406

82600FFUSE, FUSE BLOCK

main90982-09001iAE71,KE70,TE7#197908-198707

5A,5A

main90982-09002iAE71,CE70,KE70,TE7#197908-198707

10A,10A

main90982-09003iAE71,CE70,KE70,TE7#197908-198707

15A,15A

main90982-09004iAE71,CE70,KE70,TE7#197908-198707

20A,YELLOW,20A

main90982-09005iAE71,CE70,KE70,TE7#198008-198707

7.5A,7.5A

82611COVER, FUSE BLOCK

main82611-12081iKE70,TE7#..SA197908-198410

COWL SIDE,RH

main82611-12082iAE71,KE70,TE71..SA;TE72..(GL,SE,XE)..(EUR,SA)198108-198707

COWL SIDE,RH

main82611-12090iKE70,TE7#..LHD197908-198108

COWL SIDE,LH

main82611-12091iAE71,CE70,KE70,TE7#..LHD198108-198707

COWL SIDE,LH

main82611-12100iKE70,TE71..LHD..EUG197908-198108

COWL SIDE,LH,*FRG

main82611-12101iKE70..LHD..GL..EUG;KE70..(LB,WG)..LHD..5F..EUG198108-198707

COWL SIDE,LH,*FRG

main82661-12010iKE70,TE7#197908-198006

ENGINE ROOM

main82661-12011iKE70,TE7#198006-198410

ENGINE ROOM

main82661-12012iAE71,KE70..2D..ARL198108-198707

ENGINE ROOM

main82661-12020iKE70,TE71..LHD..EUG197908-198006

ENGINE ROOM,*FRG

main82661-12021iKE70,TE71..LHD..EUG198006-198108

ENGINE ROOM,*FRG

main82661-12022iKE70..LHD..GL..EUG;KE70..(LB,WG)..LHD..5F..EUG198108-198707

ENGINE ROOM,*FRG

82630HOLDER ASSY, FUSE

main82630-12030iKE70,TE71..LHD..EUG197908-198707

TAIL,*FRG

main82630-12040iCE70..LHD197908-198707

HEAD,*FRG

82630FHOLDER, FUSE

main90982-09002iKE70..LHD..GL..EUG;KE70..(LB,WG)..LHD..5F..EUG197908-198707

10A,*FRG

82660BLOCK ASSY, RELAY, ENGINE ROOM

main82660-12010iKE70,TE7#197908-198006

ENGINE ROOM

main82660-12011iKE70,TE7#198006-198011

ENGINE ROOM

main82660-12020iKE70,TE71..LHD..EUG197908-198006

ENGINE ROOM,WEST GERMANY SPEC

main82660-12021iKE70..LHD..GL..EUG;KE70..(LB,WG)..LHD..5F..EUG198006-198305

ENGINE ROOM,WEST GERMANY SPEC

main82660-12022iCE70,KE70..WG..EUR198210-198707

ENGINE ROOM,WEST GERMANY SPEC

main82660-12041iAE71,KE70..4D..ARL197908-198410

COWL SIDE,RH

main82660-12042iCE70,KE70,TE71..RHD..(EUR,GEN)198108-198707

COWL SIDE,RH

main82660-12042iAE71,KE70..2D..ARL198108-198406

COWL,RH

main82660-12050iKE70,TE7#..LHD197908-198108

COWL SIDE,LH

main82660-12051iAE71,CE70,KE70,TE7#..LHD198108-198707

COWL SIDE,LH

main82660-12060iKE70,TE71..LHD..EUG197908-198108

COWL SIDE,LH,WEST GERMANY SPEC

main82660-12061iKE70..LHD..GL..EUG;KE70..(LB,WG)..LHD..5F..EUG198108-198707

COWL SIDE,LH,*FRG

main82660-12061iCE70,TE71..(LB,SED)..LHD..EUG198108-198305

COWL SIDE,LH,WEST GERMANY SPEC

main82660-12081iAE71,CE70,KE70,TE7#..EUR,GEN,SA198108-198707

ENGINE ROOM

main82660-12090iKE70,TE7#198011-198410

ENGINE ROOM

82690RESISTOR ASSY, DIM DIP LAMP

main82690-12020iKE70..RHD..EUG198610-198707

ENGLAND SPEC

82697COVER, DIM-DIP LAMP RESISTOR

main82697-20010iKE70..RHD..EUG198610-198707

ENGLAND SPEC

83391SWITCH, VACUUM

main83391-12060iTE72..MTM197908-198305

sub83391-10080

main83391-12100iKE70..MTM..ARL198212-198410

83399BRACKET, VACUUM SWITCH

main83399-12060iTE72..MTM197908-198305

main83399-20070iKE70..MTM..ARL198212-198410

sub83399-27040

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-20020iKE70,TE7#197908-198707

83520GAGE ASSY,OIL PRESSURE SENDER

main83520-14021iTE7#..GT,SE,SR,XE197908-198406

W/TACHOMETER

sub83520-14022

main83520-14021iTE72..EUR;TE71..GT,SR,XE198108-198305

sub83520-14022

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-10020iKE70,TE7#..(DX,GL,STD,XL)..(ARL,EUR,GEN,SAA)197908-198502

sub83530-14030

main83530-12040iAE71,KE70198403-198502

sub83530-14040

main83530-14040iAE71,KE70198502-198707

sub83530-30080

main83530-30042iCE70198409-198502

sub83530-30050

main83530-30050iAE71,KE70198707-198707

sub83530-30051

main83530-30060iCE70198502-198707

sub83530-60030

main83530-36011iCE70198210-198409

sub83530-30060

84210SWITCH ASSY, BACK-UP LAMP

main84210-10051iTE72..MTM;TE71..5F..EUG;TE71..LHD..4F..EUG;TE71..MTM..(GEN,SA)197908-198707

main84210-10060iKE70..CP..5F;KE70..CP..LHD..4F;KE70..(DV,LB,SED,WG)..MTM197908-198305

main84210-10071iKE70..MTM198305-198707

main84210-14010iCE70198210-198508

main84210-60021iCE70198508-198707

84210TSENSOR ASSY, SHIFT POINT

main84220-12010iTE72..MTM197908-198305

main84220-12020iKE70..MTM..ARL197908-198707

84540SWITCH ASSY, NEUTRAL START

main84540-12090iTE7#..3FC197908-198008

sub84540-12130

sub90461-12223

sub93385-16025

main84540-12091iTE7#..3FC..SA198111-198204

sub84540-14061

main84540-12100iKE70..RHD..2FC197908-198108

main84540-12110iKE70..LHD..2FC197908-198108

main84540-12130iTE7#..3FC..SA198008-198111

sub84540-12091

main84540-12140iKE70..3FC..ARL198108-198410

main84540-14090iTE7#..ATM..SA198108-198305

main84540-14100iKE70..3FC..GEN198305-198707

85915RELAY, MAIN

main90987-02001iKE70,TE7#197908-198012

sub90999-99089

main90987-02004iAE71,CE70,KE70,TE7#198012-198707

85916RELAY, LIGHT CONTROL

main90987-01001iKE70,TE7#197908-198012

sub90999-99088

main90987-01003iAE71,CE70,KE70,TE7#198012-198707

HEAD,TAIL & RR FOG LAMP

85925RELAY, RADIATOR FAN

main90987-03001iKE70..EUR197908-198707

85926RELAY, HEADLAMP DIMMER

main85926-12020iKE70,TE71..LHD..EUG198103-198707

*FRG

main85926-12020iKE70..RHD..EUG198610-198707

ENGLAND SPEC

main85926-14010iKE70,TE71..LHD..EUG197908-198103

*FRG

89427SWITCH, TEMPERATURE DETECT

main89427-12030iTE72..MTM197908-198707

main89427-12051iCE70..LHD198210-198707

89428SWITCH, TEMPERATURE DETECT, NO.2

main89428-10040iKE70..LHD..EUR197908-198108

COOLING FAN,MARK=98B,COLD SPEC

main89428-10050iKE70..EUR198108-198707

COOLING FAN,MARK=98B

main89428-30030iKE70..EUG197908-198010

COOLING FAN,MARK=95B

89620IGNITER ASSY

main89620-12240iTE7#..(DX,SR,XE)..(EUG,SDN)198108-198305

sub89620-30H90

main89620-12240iTE71..RHD..2D..GEN198108-198203

HONG KONG SPEC

sub89620-30H90

89620ADIODE, IGNITION COIL

main90919-14011iKE70..LHD..EUR198108-198506

8261712010

main82617-12010

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200

8271112510WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12510

8271112600WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12600

9015950208

main90159-50208

9046106063

main90461-06063

9046108312

main90461-08312

9046308187

main90463-08187

9165140614

main91651-40614

9165640616

main91656-40616

9321016010

main93210-16010

9451100600

main94511-00600

9461110601

main94611-10601

39 parts on this diagram · 9 diagrams in section
