Toyota COROLLA — STARTER

0001 112V 1.6KW 0002 112V 2.0KW 0003 112V 1.6KW 0004 112V 1.0KW 0005 112V 1.1KW 0006 112V 1.0KW,1.2KW 0007 112V 1.1KW

28021CLUTCH SUB-ASSY, STARTER CENTER BEARING

main28021-33090i1NDTV..NDE180..SAP201606-201912

main28021-47170i1NRFE..NRE180..TUP201612-201808

28100STARTER ASSY

main28100-0N060i1NDTV..NDE180..SAP201401-201701

12V 1.6KW

main28100-0T010i2ZRFE..ZRE182201912

12V 1.1KW

main28100-0T030i1ZRFE,2ZRFE..ZRE18#..TUP201606-201901

12V 1.1KW

main28100-47170i1NRFE..NRE180201401-201407

12V 1.0KW

main28100-47171i1NRFE..NRE180..SAP201408-201701

12V 1.0KW

main28100-0N110supersedes 28100-0N040i1NDTV..NDE180..TUP201611-201901

12V 2.0KW,SUB COLD AREA SPEC

main28100-0Y101supersedes 28100-0Y091i1NRFE..NRE180..TUP201606-201805

12V 1.2KW,SUB COLD AREA SPEC

28110HOUSING ASSY, STARTER DRIVE

main28110-0T010i1ZRFE,2ZRFE..ZRE18#..SAP201701-201912

main28110-0T030i1ZRFE,2ZRFE..ZRE18#..TUP201606-201901

main28110-33110i1NDTV..NDE180..TUP201606-201901

28113LEVER, STARTER PINION DRIVE

main28113-0D130i1ZRFE,2ZRFE..ZRE18#..TUP201606-201901

main28113-0D160i1ZRFE,2ZRFE..ZRE18#..SAP201701-201912

main28113-37050i1NDTV..NDE180..TUP201306-201605

28117ASEAL, RUBBER

main28117-37050i1NDTV..NDE180..TUP201306-201605

28120YOKE ASSY, STARTER

main28120-0D130i1ZRFE,2ZRFE..ZRE18#..TUP201606-201901

main28120-33110i1NDTV..NDE180..SAP201306-201701

main28120-0N110supersedes 28120-33110i1NDTV..NDE180..TUP201611-201901

SUB COLD AREA SPEC

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-0D130i1ZRFE,2ZRFE..ZRE18#..TUP201606-201901

main28130-0D160i2ZRFE..ZRE182201912

main28130-33110i1NDTV..NDE180..TUP201606-201901

28140HOLDER ASSY, STARTER BRUSH

main28140-0D130i1ZRFE,2ZRFE..ZRE18#..TUP201606-201901

main28140-0D160i1ZRFE,2ZRFE..ZRE18#..SAP201701-201912

main28140-21070i1NRFE..NRE180..SAP201606-201912

main28140-37050i1NDTV..NDE180..SAP201606-201912

main28140-38070supersedes 28140-37050i1NDTV..NDE180..TUP201611-201901

SUB COLD AREA SPEC

28150SWITCH ASSY, MAGNET STARTER

main28150-0D130i1ZRFE,2ZRFE..ZRE18#..TUP201606-201901

main28150-0D160i1ZRFE,2ZRFE..ZRE18#..SAP201401-201701

main28150-37020i1NDTV..NDE180..TUP201306-201605

28160ARMATURE ASSY, STARTER

main28160-0D130i1ZRFE,2ZRFE..ZRE18#..TUP201606-201901

main28160-0D160i1ZRFE,2ZRFE..ZRE18#..SAP201401-201701

main28160-21070i1NRFE..NRE180..SAP201606-201912

main28160-33090i1NDTV..NDE180..SAP201606-201912

main28160-0N110supersedes 28160-33090i1NDTV..NDE180..TUP201611-201807

SUB COLD AREA SPEC,(L)

main28160-21080supersedes 28160-21070i1NRFE..NRE180..TUP201606-201805

SUB COLD AREA SPEC

main28160-26180supersedes 28160-33090i1NDTV..NDE180..TUP201611-201901

SUB COLD AREA SPEC,(J)

28177PLATE(FOR STARTER ARMATURE)

main28177-37050i1NDTV..NDE180..TUP201306-201605

28181TERMINAL, STARTER

main28181-33010i1NDTV..NDE180..TUP201306-201605

28199APROTECTOR, DUST STARTER

main28199-33110i1NDTV..NDE180..TUP201306-201605

28255GEAR, PLANET

main28255-33090×3i1NDTV..NDE180..TUP201606-201901

9009900323

main90099-00323

9009901538

main90099-01538

9009904617

main90099-04617

9009905178

main90099-05178

9009905289

main90099-05289

90119W0096

main90119-W0096

9017908204

main90179-08204

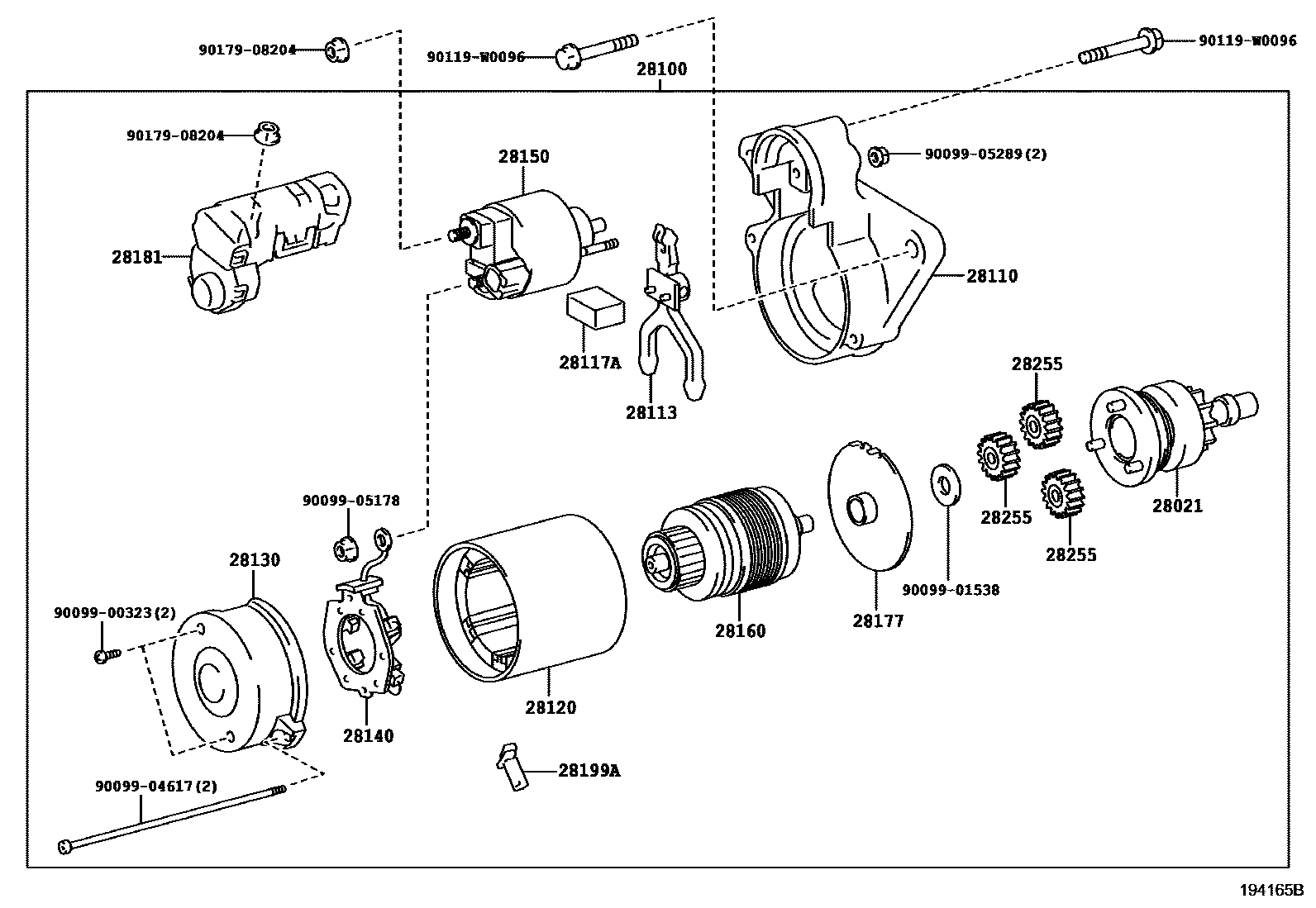

21 parts on this diagram · 7 diagrams in section
