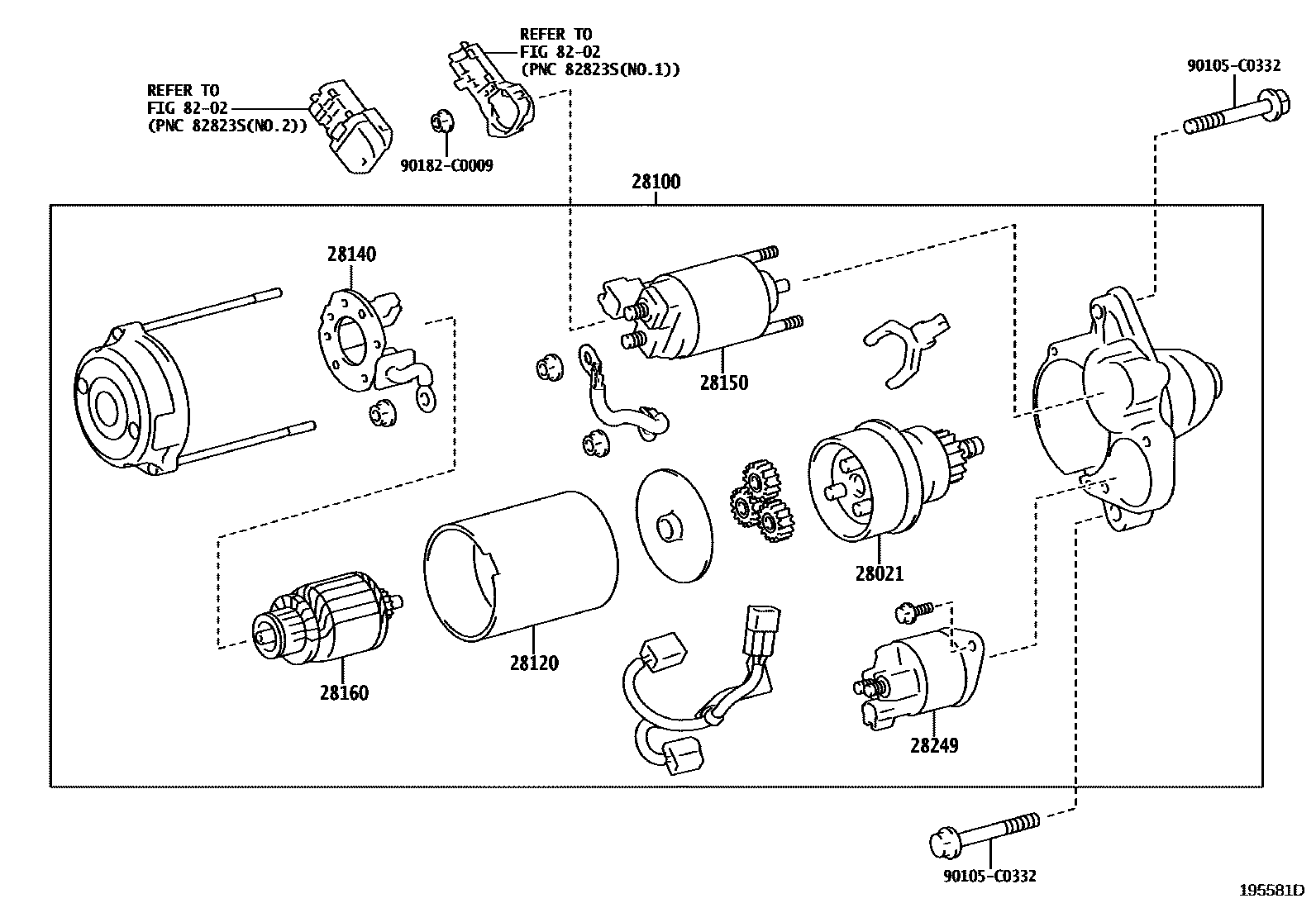

Toyota COROLLA — STARTER

0001 112V 1.7KW 0002 112V 1.2KW

28021CLUTCH SUB-ASSY, STARTER CENTER BEARING

main28021-0Y460i9NRFTS..NRE210..HI202007-202304

main28021-F3010iM15..MZEA11202101-202304

28100STARTER ASSY

main28100-0Y460i9NRFTS..NRE210..HI202007-202304

12V 1.7KW

main28100-F3010iM15..MZEA17202306

12V 1.2KW

28120YOKE ASSY, STARTER

main28120-0T360i9NRFTS..NRE210..ENTRY,MID201908

28140HOLDER ASSY, STARTER BRUSH

main28140-0T330iM15..MZEA17202306

main28140-0V040i9NRFTS..NRE210..HI202007-202304

28150SWITCH ASSY, MAGNET STARTER

main28150-0Y460i9NRFTS..NRE210..HI202007-202304

28160ARMATURE ASSY, STARTER

main28160-0N110i9NRFTS..NRE210..HI201908-202006

main28160-0T330iM15..MZEA17202306

28249RELAY, STARTER INRUSH CURRENT REDUCTION

main28249-0Y460i9NRFTS..NRE210..HI202012-202304

(L)

main28249-47280i9NRFTS..NRE210..HI202012-202304

(J)

8202

90105C0332

main90105-C0332

90182C0009

main90182-C0009

10 parts on this diagram · 2 diagrams in section
