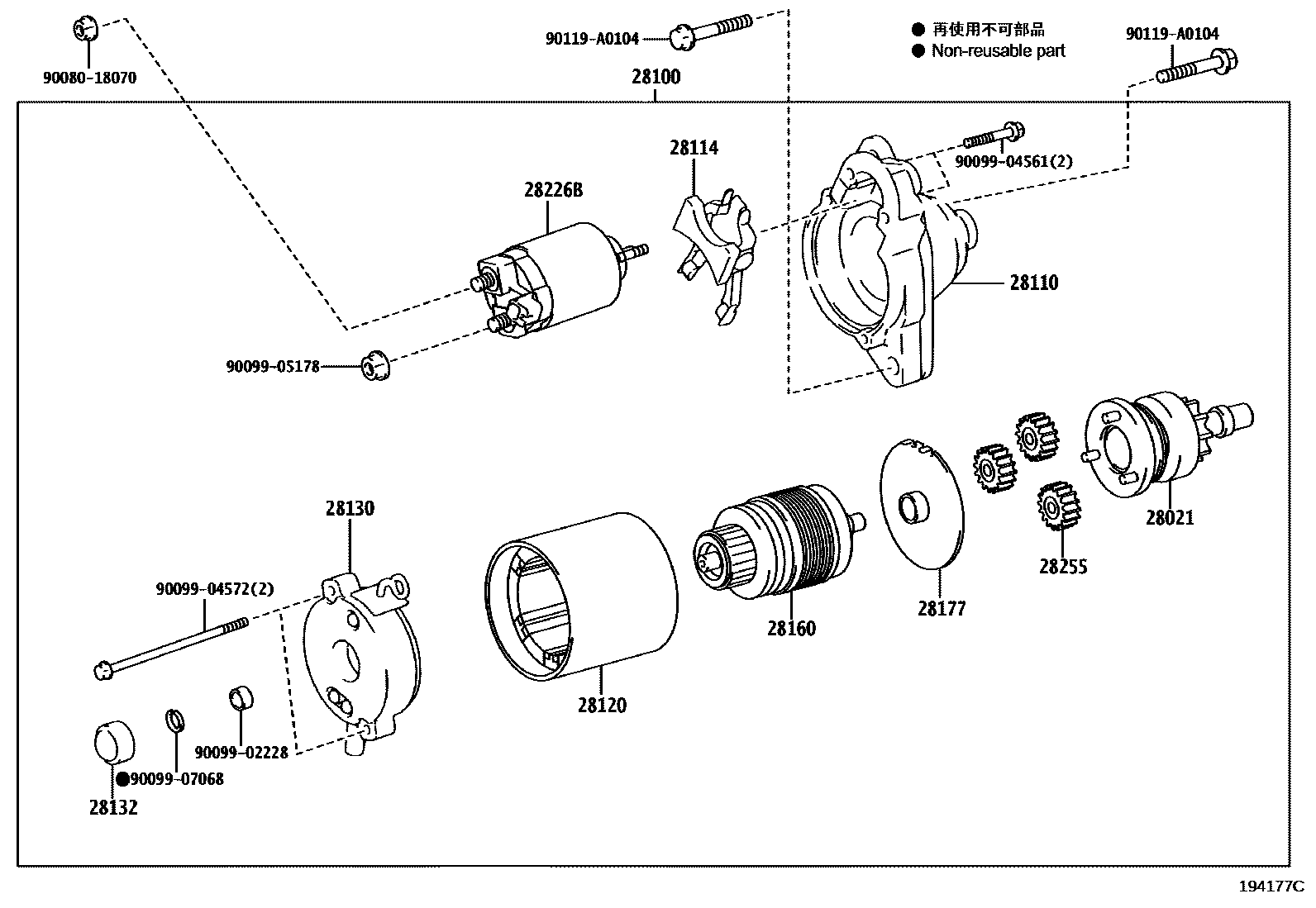

Toyota COROLLA — STARTER

0001 112V 1.3KW 0002 112V 1.2KW 0003 112V 1.2KW

28021CLUTCH SUB-ASSY, STARTER CENTER BEARING

main28021-21060i2ZRFE..ZRE172201308-201408

main28021-47170i2ZR#..ZRE172201612

28100STARTER ASSY

main28100-0T290i2ZRFE..ZRE172201308-201408

12V 1.3KW

main28100-0T340i2ZRFE..ZRE172201408-201608

12V 1.2KW

28110HOUSING ASSY, STARTER DRIVE

main28110-37040i2ZRFE..ZRE172201308-201408

28114PIN, STARTER DRIVE LEVER SET

main28114-21060i2ZRFE..ZRE172201308-201408

28120YOKE ASSY, STARTER

main28120-28080i2ZRFE..ZRE172201308-201408

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-37120i2ZRFE..ZRE172201308-201408

28132COVER, STARTER BEARING(FOR DRIVE HOUSING)

main28132-28040i2ZRFE..ZRE172201308-201408

28160ARMATURE ASSY, STARTER

main28160-21060i2ZRFE..ZRE172201308-201408

main28160-21080i2ZRFE..ZRE172201408-201608

28177PLATE(FOR STARTER ARMATURE)

main28177-28040i2ZRFE..ZRE172201308-201408

28226BSTARTER KIT, REPAIR SERVICE

main28226-37120i2ZRFE..ZRE172201308-201408

main28226-47170i2ZRFE..ZRE172201408-201608

28255GEAR, PLANET

main28255-28040×3i2ZRFE..ZRE172201308-201408

9008018070

main90080-18070

9009902228

main90099-02228

9009904561

main90099-04561

9009904572

main90099-04572

9009905178

main90099-05178

9009907068

main90099-07068

90119A0104

main90119-A0104

18 parts on this diagram · 3 diagrams in section
