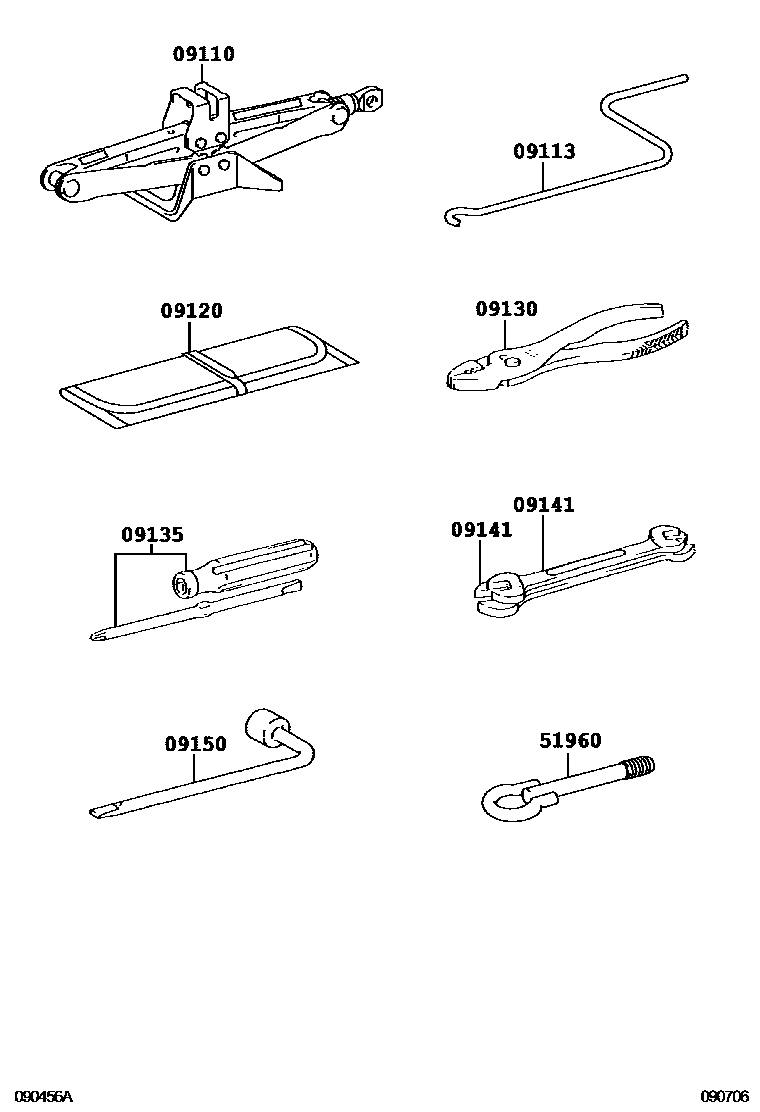

Toyota COROLLA — STANDARD TOOL

09110JACK ASSY

main09111-05050iNDE180,NRE180,ZRE18#..SAP201306-201701

main09111-05052iZRE182202201

09113HANDLE, JACK

main09113-02020iNDE180,NRE180,ZRE18#..SAP201401-201701

main09113-02051iNDE180..TUP201306-201605

09120BAG, TOOL

main09120-02130iNRE180..TUP201606-201808

main09120-02120supersedes 09120-02110iNDE180,NRE180,ZRE18#..SAP201701-201912

TOOL(PLANT INSTALL)-*HJDSP & CASE

09130PLIERS

main90080-99009iNDE180..TUP201306-201605

TOOL(PLANT INSTALL)-*HJDSP & CASE

main90089-99010iNDE180,NRE180,ZRE18#..SAP201401-201701

TOOL(PLANT INSTALL)-*HJDSP & CASE

09135DRIVER, SCREW

main90080-99008iNRE180..TUP201606-201808

TOOL(PLANT INSTALL)-*HJDSP & CASE

main90089-99009iNDE180,NRE180,ZRE18#..SAP201701-201912

TOOL(PLANT INSTALL)-*HJDSP & CASE

09141SPANNER

main09141-0K030iNDE180,NRE180,ZRE18#..SAP201701-201912

8 X 10,TOOL(PLANT INSTALL)-*HJDSP & CASE

main09141-0K040iZRE182201912

12 X 14,TOOL(PLANT INSTALL)-*HJDSP & CASE

main90080-99010iNDE180..TUP201306-201605

8 X 10,TOOL(PLANT INSTALL)-*HJDSP & CASE

main90080-99011iNRE180..TUP201606-201808

12 X 14,TOOL(PLANT INSTALL)-*HJDSP & CASE

09150WRENCH, HUB NUT BOX

main09150-02060iNDE180..TUP201306-201505

main09150-02100iZRE182201912

main09150-05011iNRE180..TUP201606-201808

main09150-40010iNDE180,NRE180,ZRE18#..SAP201401-201701

51960HOOK ASSY, FRONT

main51960-05010iNDE180..TUP201306-201605

8 parts on this diagram · 1 diagram in section
