Toyota COROLLA — STANDARD TOOL

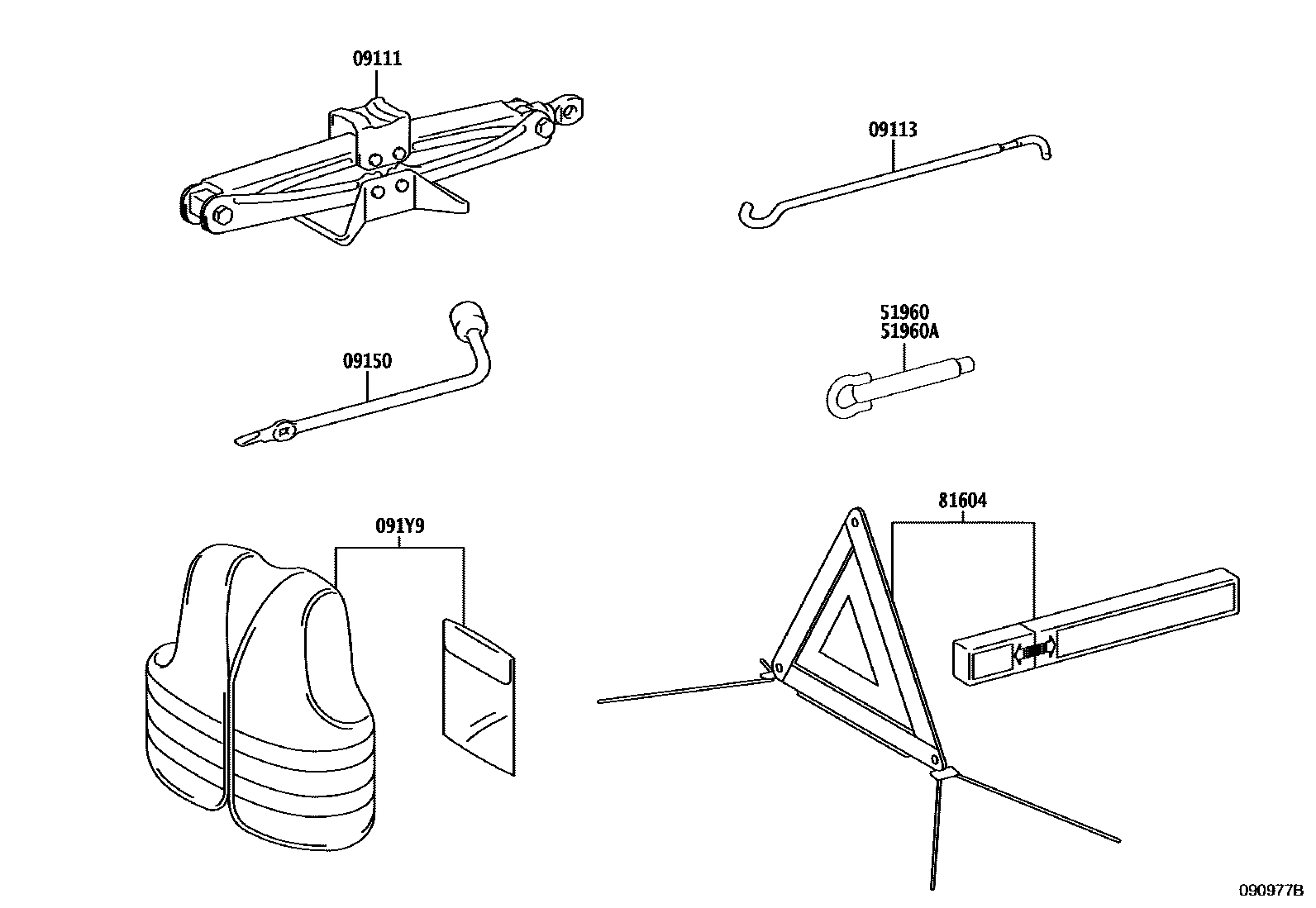

Parts diagram

09111JACK SUB-ASSY

main09111-F4031i201908-202006

09113HANDLE, JACK

main09113-0R030i201908-202006

09150WRENCH, HUB NUT BOX

main09150-0R020i201908-202006

091Y9JACKET, W/REFLECTOR

main091Y9-02020i201908-202006

51960HOOK ASSY, FRONT

main51960-02220i201908-202006

51960AHOOK ASSY, REAR

main51960-02220i202305

81604REFLECTOR SET, TRIANGLE

main81604-02030i201908-202006

7 parts on this diagram · 1 diagram in section
