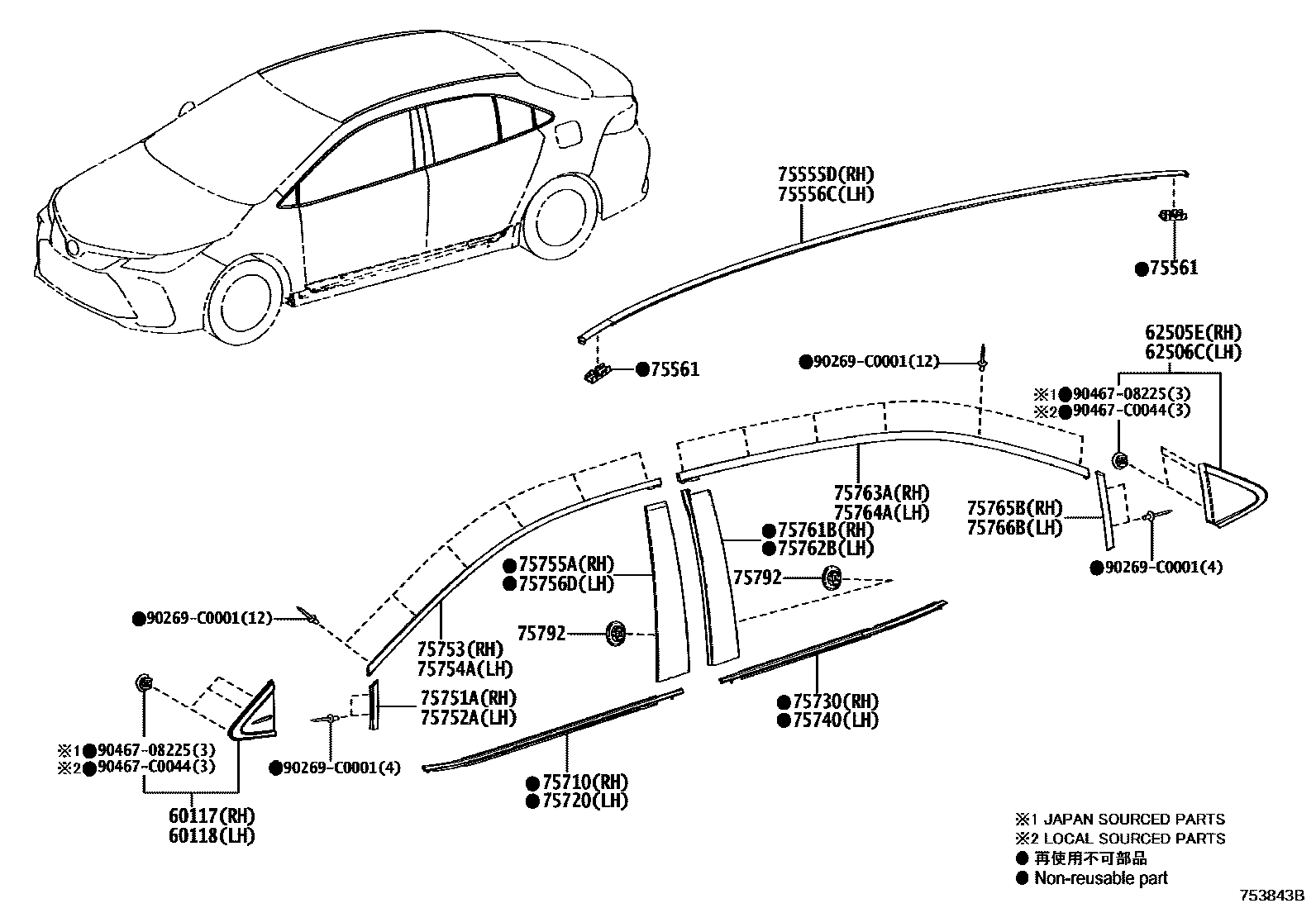

Toyota COROLLA — SIDE MOULDING
60117COVER SUB-ASSY, FRONT PILLAR, UPR RH
60118COVER SUB-ASSY, FRONT PILLAR, UPR LH
62505ECOVER SUB-ASSY, QUARTER PILLAR, RH
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
62506CCOVER SUB-ASSY, QUARTER PILLAR, LH
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
75555DMOULDING, ROOF DRIP SIDE FINISH, CENTER RH
75556CMOULDING, ROOF DRIP SIDE FINISH, CENTER LH
75561CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.1
75710MOULDING ASSY, FRONT DOOR BELT, RH
75720MOULDING ASSY, FRONT DOOR BELT, LH
75730MOULDING ASSY, REAR DOOR BELT, RH
75740MOULDING ASSY, REAR DOOR BELT, LH
75751AMOULDING, FRONT DOOR WINDOW FRAME, RH(FRONT PILLAR SIDE)
75752AMOULDING, FRONT DOOR WINDOW FRAME, LH(FRONT PILLAR SIDE)
75753MOULDING, FRONT DOOR WINDOW FRAME, UPPER RH
75754AMOULDING, FRONT DOOR WINDOW FRAME, UPPER LH
75755AMOULDING, FRONT DOOR WINDOW FRAME, RH(CENTER PILLAR SIDE)
75756DMOULDING, FRONT DOOR WINDOW FRAME, LH(CENTER PILLAR SIDE)
75761BMOULDING, REAR DOOR WINDOW FRAME, RH(CENTER PILLAR SIDE)
75762BMOULDING, REAR DOOR WINDOW FRAME, LH(CENTER PILLAR SIDE)
75763AMOULDING, REAR DOOR WINDOW FRAME, UPPER RH
75764AMOULDING, REAR DOOR WINDOW FRAME, UPPER LH
75765BMOULDING, REAR DOOR WINDOW FRAME, RH(REAR PILLAR SIDE)
75766BMOULDING, REAR DOOR WINDOW FRAME, LH(REAR PILLAR SIDE)
75792CLIP, DOOR WINDOW FRAME MOULDING
(L)
(J)
90269C0001
main90269-C0001
9046708225
main90467-08225
90467C0044
main90467-C0044
27 parts on this diagram · 2 diagrams in section
SIDE MOULDING for Toyota COROLLA
This section contains 41 genuine Toyota parts for the SIDE MOULDING system of the Toyota COROLLA. Key components include: HOOD & FRONT FENDER, COVER SUB-ASSY, FRONT PILLAR, UPR RH, COVER SUB-ASSY, FRONT PILLAR, UPR LH, COVER SUB-ASSY, QUARTER PILLAR, RH, COVER SUB-ASSY, QUARTER PILLAR, LH.
