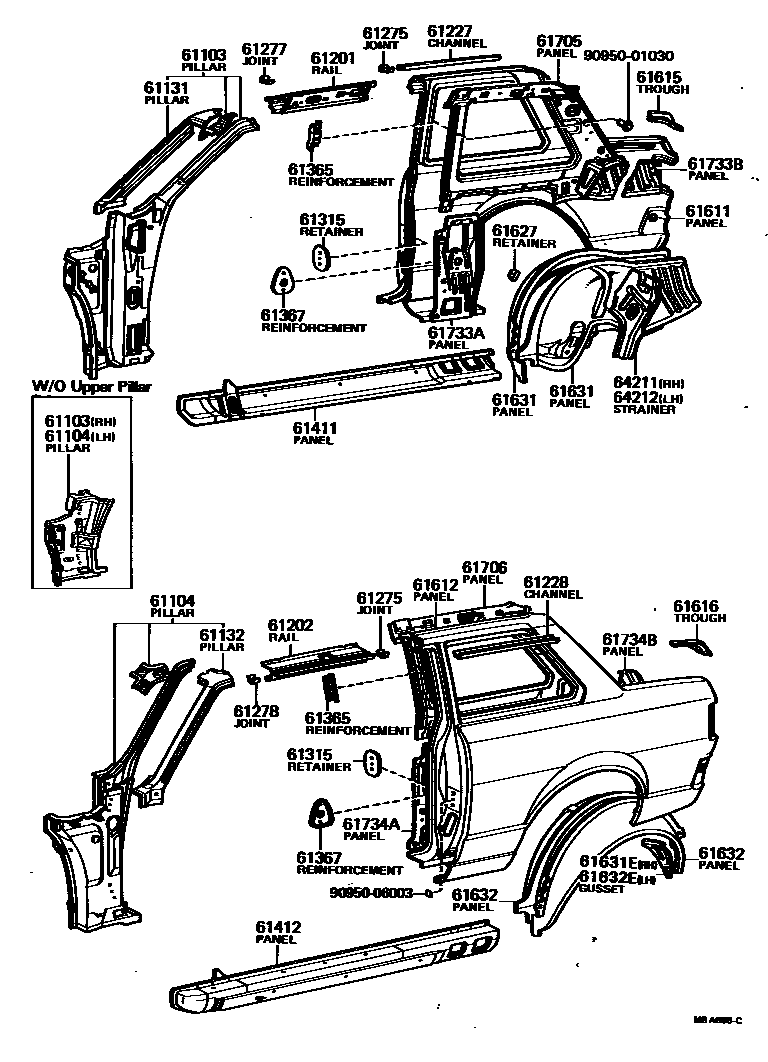

Toyota COROLLA — SIDE MEMBER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

61103PILLAR SUB-ASSY, FRONT BODY, RH

main61021-12140iKE70,TE71..RHD..STD197908-198204

sub61021-12141

sub84230-12100

main61021-12141iKE70,TE71..RHD..STD..(GEN,SA)198108-198707

main61021-12170iKE70,TE7#..(CP,LB)..RHD197908-198401

sub61021-12171

sub84230-12100

main61021-12171iKE70,TE71..RHD..2D..DX198108-198406

main61021-12180iKE70,TE7#..SED..SA197908-198204

W/ROOF DRIP MOULDING

sub61021-12181

sub84230-12100

main61021-12181iCE70,KE70..RHD..DX198108-198707

W/ROOF DRIP MOULDING

main61021-12190iKE70..WG..LHD..2D..DX;KE70,TE71..WG..LHD..4D197908-198108

W/ROOF DRIP MOULDING

sub61021-12191

sub84230-12100

main61021-12191iKE70..(DV,SED,WG)..LHD..GEN;AE71,CE70,TE71..(SED,WG)..LHD;KE70..(SED,WG)..LHD..(DX,GL)..(EUR,SAA)198108-198707

W/ROOF DRIP MOULDING

main61021-12220iKE70,TE71..LHD..STD197908-198108

sub61021-12221

sub84230-12100

main61021-12221iCE70,KE70,TE71..LHD..STD198108-198707

main61021-12260iKE70,TE7#..(CP,LB)..LHD197908-198108

sub61021-12270

main61021-12270iTE7#..LHD..(GT,SR,XE)198108-198305

sub61021-12271

sub84230-12100

main61021-12271iKE70,TE7#..(CP,LB)..LHD..DX198108-198308

main61021-12901iTE7#..RHD..(SE,SR,XE)197908-198406

W/O UPR PILLAR

sub61021-12908

sub84230-12100

main61021-12902iKE70,TE7#..(DV,SED,WG)..RHD197908-198410

W/O UPR PILLAR

sub61021-12905

sub84230-12100

main61021-12903iKE70,TE71..(DV,SED,WG)..LHD197908-198108

W/O UPR PILLAR

sub61021-12906

sub84230-12100

main61021-12904iKE70,TE7#..(CP,LB)..LHD197908-198305

W/O UPR PILLAR

sub61021-12907

sub84230-12100

main61021-12905iAE71,CE70,KE70,TE7#..(DV,SED,WG)..RHD..(EUR,GEN,SA)198108-198707

W/O UPR PILLAR

main61021-12906iAE71,CE70,KE70,TE71..(DV,SED,WG)..LHD198108-198707

W/O UPR PILLAR

main61021-12907iKE70,TE7#..(CP,LB)..LHD..DX198108-198308

W/O UPR PILLAR

main61021-12908iKE70,TE71..RHD..2D..DX198108-198406

W/O UPR PILLAR

61104PILLAR SUB-ASSY, FRONT BODY, LH

main61022-12170iKE70,TE71..RHD..STD197908-198204

sub61022-12171

sub84230-12100

main61022-12171iAE71,KE70..2D..ARL198108-198707

main61022-12190iTE7#..RHD..(SE,SR,XE)197908-198401

main61022-12200iKE70,TE71..(CP,LB)..RHD..DX197908-198108

sub61022-12201

sub84230-12100

main61022-12201iKE70,TE71..RHD..2D..DX198108-198406

main61022-12210iKE70,TE7#..(DV,SED,WG)..RHD197908-198108

W/ROOF DRIP MOULDING

sub61022-12211

sub84230-12100

main61022-12210iAE71,KE70..4D..ARL198108-198410

sub61022-12211

sub84230-12100

main61022-12211iCE70,KE70..RHD..DX198108-198707

W/ROOF DRIP MOULDING

main61022-12280iKE70..(SED,WG)..LHD..DX..EUR;KE70,TE71..(DV,SED,WG)..LHD..GEN197908-198108

W/ROOF DRIP MOULDING

sub61022-12281

sub84230-12100

main61022-12281iKE70..(DV,SED,WG)..LHD..GEN;AE71,CE70,TE71..(SED,WG)..LHD;KE70..(SED,WG)..LHD..(DX,GL)..(EUR,SAA)198108-198707

W/ROOF DRIP MOULDING

main61022-12310iKE70,TE71..LHD..STD197908-198108

sub61022-12311

sub84230-12100

main61022-12311iCE70,KE70,TE71..LHD..STD198108-198707

main61022-12360iKE70,TE7#..(CP,LB)..LHD197908-198305

sub61022-12361

sub84230-12100

main61022-12361iKE70,TE7#..(CP,LB)..LHD..DX198108-198308

main61022-12901iKE70,TE7#..(CP,LB)..RHD197908-198406

W/O UPR PILLAR

sub61022-12907

sub84230-12100

main61022-12902iKE70,TE7#..(SED,WG)..(ARL,SA)197908-198410

W/O UPR PILLAR

sub61022-12905

sub84230-12100

main61022-12903iKE70,TE71..(DV,SED,WG)..LHD197908-198108

W/O UPR PILLAR

sub61022-12906

sub84230-12100

main61022-12904iKE70,TE7#..(CP,LB)..LHD197908-198305

W/O UPR PILLAR

sub61022-12908

sub84230-12100

main61022-12905iAE71,CE70,KE70,TE7#..(DV,SED,WG)..RHD..(EUR,GEN,SA)198108-198707

W/O UPR PILLAR

main61022-12906iAE71,CE70,KE70,TE71..(DV,SED,WG)..LHD198108-198707

W/O UPR PILLAR

main61022-12907iKE70,TE71..RHD..2D..DX198108-198406

W/O UPR PILLAR

main61022-12908iKE70,TE7#..(CP,LB)..LHD..DX198108-198308

W/O UPR PILLAR

61131PILLAR, FRONT BODY, UPPER OUTER RH

main61131-12140iAE71,CE70,KE70,TE7#..DV,SED,WG197908-198707

main61131-12150iKE70,TE7#..CP,LB197908-198406

61132PILLAR, FRONT BODY, UPPER OUTER LH

main61132-12140iAE71,CE70,KE70,TE7#..DV,SED,WG197908-198707

main61132-12160iKE70,TE7#..CP,LB197908-198406

61201RAIL SUB-ASSY, ROOF SIDE, RH

main61201-12030iAE71,CE70,KE70,TE71..(DV,SED,WG)..2D197908-198707

main61201-12050iKE70,TE71..CP..RHD197908-197911

main61201-12060iKE70,TE7#..LB197908-198406

main61201-12070iKE70,TE71..CP197908-198008

sub61201-12071

sub90119-06137

main61201-12071iKE70,TE71..CP198008-198305

61202RAIL SUB-ASSY, ROOF SIDE, LH

main61202-12040iAE71,CE70,KE70,TE71..(DV,SED,WG)..2D197908-198707

main61202-12060iKE70,TE71..CP197908-198008

sub61202-12061

sub90119-06137

main61202-12061iKE70,TE71..CP198008-198305

main61202-12070iKE70,TE7#..LB197908-198406

61227CHANNEL, ROOF DRIP SIDE, REAR RH

main61267-12010iCE70,KE70,TE71..SED..2D197908-198305

main61267-12020iCE70,KE70,TE71..SED..4D..(DX,STD)..(EUR,GEN,SA,SAA)197908-198502

main61267-12060iKE70,TE7#..LB197908-198406

main61267-13010iAE71,CE70,KE70,TE71..(DV,WG)..2D197908-198707

main61267-13020iAE71,CE70,KE70,TE71..WG..4D197908-198707

61228CHANNEL, ROOF DRIP SIDE, REAR LH

main61268-12010iCE70,KE70,TE71..SED..2D197908-198305

main61268-12020iCE70,KE70,TE71..SED..4D..(DX,STD)..(EUR,GEN,SA,SAA)197908-198502

main61268-12060iKE70,TE7#..LB197908-198406

main61268-13010iAE71,CE70,KE70,TE71..(DV,WG)..2D197908-198707

main61268-13020iAE71,CE70,KE70,TE71..WG..4D197908-198707

61275JOINT, ROOF DRIP CHANNEL, REAR

main61277-12010iAE71,KE70..2D..ARL197908-198707

61277JOINT, ROOF DRIP CHANNEL, FRONT RH

main61277-12010iAE71,KE70..2D..ARL197908-198707

61278JOINT, ROOF DRIP CHANNEL, FRONT LH

main61277-12010iAE71,KE70..2D..ARL197908-198707

61315RETAINER, DOOR LOCK STRIKER PLATE

main61309-12040iKE70,TE71..CP197908-198305

main61309-20010iAE71,CE70,KE70,TE71..(DV,SED,WG)..2D197908-198707

61365REINFORCEMENT, BELT ANCHOR TO CENTER PILLAR

main61045-13010iAE71,KE70..2D..ARL198108-198406

RH

main61046-13010iAE71,KE70..2D..ARL198108-198406

LH

main61365-12020iCE70,KE70,TE71..(DV,SED,WG)..2D..(EUR,GEN,SA)197908-198707

RH

main61366-12010iCE70,KE70,TE71..(DV,SED,WG)..2D..(EUR,GEN,SA)197908-198707

LH

61367REINFORCEMENT, BELT ANCHOR TO CENTER PILLAR, LOWER

main61367-12020iAE71,CE70,KE70,TE7#..4D197908-198707

RH

main61367-14010iAE71,CE70,KE70,TE71..(DV,SED,WG)..2D197908-198707

main61368-12020iAE71,CE70,KE70,TE7#..4D197908-198707

LH

61411PANEL, ROCKER, OUTER RH

main61401-12010iAE71,CE70,KE70,TE71..(DV,SED,WG)..2D197908-198707

main61401-12030iAE71,CE70,KE70,TE7#..4D197908-198707

main61401-12110iKE70,TE71..CP197908-198406

main61401-12900iKE70,TE7#..LB197908-197911

sub61401-12110

61412PANEL, ROCKER, OUTER LH

main61402-12010iAE71,CE70,KE70,TE71..(DV,SED,WG)..2D197908-198707

main61402-12030iAE71,CE70,KE70,TE7#..4D197908-198707

main61402-12110iKE70,TE71..CP197908-198406

main61402-12900iKE70,TE7#..LB197908-197911

sub61402-12110

61611PANEL, QUARTER, RH

main61611-12903iKE70,TE71..CP..DX;TE71..CP..5F..EUG197908-198305

main61611-12904iTE71..CP..5F..GEN197908-198108

main61611-12904iKE70,TE71..CP..GEN198108-198305

W/FUEL OPENER

main61611-12905iKE70,TE71..LB..DX..GEN197908-198406

main61611-12906iTE7#..LB..(ARL,GEN)198108-198406

W/FUEL OPENER

main61611-12906iTE7#..(SE,XE)..(ARL,GEN)197908-198108

main61611-12907iCE70,KE70,TE71..SED..2D..(EUR,GEN)197908-198305

main61611-12908iKE70..SED..2D..DX..GEN198108-198305

W/FUEL OPENER

main61611-12909iKE70..SED..SAA197908-198308

main61611-12910iKE70..SED..4D..(DX,GL)..(GEN,SAA)198108-198308

W/FUEL OPENER

main61611-12921iKE70,TE7#..SED..(GEN,SA)198108-198502

*GIS

main61611-12921iKE70,TE7#..SED..SA198108-198305

main61611-12922iTE72..GL198108-198404

main61611-12922iKE70,TE71..SED..4D..(DX,GL)..GEN198108-198406

*GIS,W/FUEL OPENER

main61611-12923iKE70..SED..2D..GEN198108-198305

*GIS

sub61611-12924

main61611-12924iKE70..2D..SA198108-198204

main61611-13900iKE70..(DV,WG)..2D197908-198108

sub61611-13903

main61611-13901iKE70,TE71..WG..4D197908-198108

sub61611-13904

main61611-13909iAE71,CE70,KE70,TE71..(DV,WG)..2D198108-198707

main61611-13910iAE71,CE70,KE70,TE71..WG..4D..(EUR,GEN,SA,SAA)198108-198707

61612PANEL, QUARTER, LH

main61612-12410iKE70..SED..2D197908-198305

sub61612-1A060

main61612-12460iKE70,TE7#..SED..4D197908-198305

sub61612-12890

main61612-12590iKE70,TE71..CP197908-198305

main61612-12620iKE70,TE7#..LB197908-198406

main61612-12890iKE70,TE7#..SED..4D..(GEN,SA)198108-198502

*GIS

main61612-12890iKE70..SED..STD..ARL198108-198410

main61612-13130iKE70..(DV,WG)..2D197908-198108

sub61612-13131

main61612-13150iKE70,TE71..WG..4D197908-198108

sub61612-13151

main61612-13190iAE71,CE70,KE70,TE71..WG..4D198108-198707

main61612-13210iAE71,CE70,KE70,TE71..(DV,WG)..2D198108-198707

main61612-1A060iKE70..SED..2D..(GEN,SA)198108-198305

*GIS

61615TROUGH, LUGGAGE COMPARTMENT OPENING, RH

main61621-12150iAE71,CE70,KE70,TE7#..SED197908-198502

61616TROUGH, LUGGAGE COMPARTMENT OPENING, LH

main61622-12150iAE71,CE70,KE70,TE7#..SED197908-198502

61627RETAINER, QUARTER TRIM, LOWER

main61647-14010iAE71,CE70,KE70,TE71..(DV,SED,WG)..2D197908-198707

61631PANEL, QUARTER WHEEL HOUSE, RH

main61603-12903iKE70,TE7#..CP,LB197908-198406

INNER

main61603-12904iAE71,CE70,KE70,TE7#..SED197908-198502

INNER

main61603-13901iAE71,CE70,KE70,TE71..DV,WG197908-198707

INNER

main61631-12903iAE71,CE70,KE70,TE7#..SED197911-198502

OUTER

main61631-12904iKE70,TE7#..CP,LB197911-198406

OUTER

main61631-12905iKE70,TE71..SED197908-197911

OUTER

sub61631-12903

main61631-12906iKE70,TE7#..CP,LB197908-197911

OUTER

sub61631-12904

main61631-13030iAE71,CE70,KE70,TE71..DV,WG197908-198707

OUTER

61631EGUSSET, QUARTER WHEEL HOUSE, REAR RH

main61645-12040iKE70,TE7#..CP,LB197908-198406

main61645-12050iAE71,CE70,KE70,TE7#..SED197908-198502

sub61645-12080

main61645-13050iAE71,CE70,KE70,TE71..DV,WG197908-198707

61632PANEL, QUARTER WHEEL HOUSE, LH

main61604-12903iKE70,TE7#..CP,LB197908-198406

INNER

main61604-12904iAE71,CE70,KE70,TE7#..SED197908-198502

INNER

main61604-13901iAE71,CE70,KE70,TE71..DV,WG197908-198707

INNER

main61632-12080iKE70,TE71..DV,SED,WG197908-197911

OUTER

main61632-12090iKE70,TE7#..CP,LB197908-197911

OUTER

main61632-12120iKE70..DV..GEN197908-197911

OUTER,W/O RR SEAT

main61632-12120iAE71,CE70,KE70,TE7#..DV,SED,WG197911-198707

OUTER

main61632-12130iKE70,TE7#..CP,LB197911-198406

OUTER

61632EGUSSET, QUARTER WHEEL HOUSE, REAR LH

main61646-12040iKE70,TE7#..CP,LB197908-198406

main61646-12050iAE71,CE70,KE70,TE7#..SED197908-198502

main61646-13050iAE71,CE70,KE70,TE71..DV,WG197908-198707

61705PANEL SUB-ASSY, ROOF SIDE, INNER RH

main61705-12310iKE70,TE7#..SED..4D..(GEN,SA,SAA)197908-198406

main61705-12430iTE71..GL..GEN;KE70..RHD..(2FC,3FC,4F)..4D..DX..GEN197908-198305

NEW ZEALAND SPEC

main61705-12430iCE70,KE70,TE7#..SED..4D..(EUR,SA)197908-198502

main61705-12930iKE70,TE71..CP197908-198305

main61705-12931iKE70,TE7#..LB197908-198001

sub61705-12937

main61705-12932iKE70..2D..SA198007-198204

main61705-12933iKE70..SED..2D..(GEN,SA)197908-198204

*ELR

main61705-12933iKE70..SED..2D..GEN198108-198305

main61705-12935iCE70,KE70,TE71..SED..LHD..2D..EUR197908-198305

main61705-12936iKE70..SED..LHD..(2FC,4F)..2D..EUG197908-198305

WEST GERMANY SPEC

main61705-12936iKE70..RHD..2D..EUG197908-198305

main61705-12937iKE70,TE7#..LB198001-198406

main61705-12937iKE70,TE7#..LB197908-198001

W/REMOVABLE ROOF

main61705-13904iKE70..RHD..4F..STD..GEN198305-198707

GLASS, SHORT FLOOR

main61705-13904iKE70..WG..2D197908-198707

main61705-13905iAE71,CE70,KE70,TE71..DV197908-198707

main61705-13907iAE71,CE70,KE70,TE71..WG..4D197908-198707

main61705-13909iKE70..RHD..4F..XL198508-198707

KENYA SPEC

main61705-13910iAE71..SA198508-198707

W/TONNEAU COVER

61706PANEL SUB-ASSY, ROOF SIDE, INNER LH

main61706-12320iKE70..SED..4D..(GEN,SAA)197908-198406

main61706-12440iTE71..GL..GEN;KE70..RHD..(2FC,3FC,4F)..4D..DX..GEN197908-198305

NEW ZEALAND SPEC

main61706-12440iKE70..SED..4D..EUR197908-198502

main61706-12930iKE70,TE71..CP197908-198105

sub61706-12939

sub58709-12030

sub61736-12111

main61706-12931iKE70,TE71..LB..GEN197908-198001

sub61706-12937

main61706-12932iKE70..2D..SA198007-198204

main61706-12933iKE70..SED..2D..(GEN,SA)197908-198204

*ELR

main61706-12933iKE70..SED..2D..GEN198108-198305

main61706-12935iCE70,KE70,TE71..SED..LHD..2D..EUR197908-198305

main61706-12936iKE70..SED..2D..STD..EUG;KE70..SED..LHD..(2FC,5F)..2D197908-198305

WEST GERMANY SPEC

main61706-12936iKE70..RHD..2D..EUG197908-198305

main61706-12937iKE70,TE7#..LB..(ARL,EUR)197908-198001

W/REMOVABLE ROOF

sub61706-12940

sub58709-12040

sub61736-12121

main61706-12937iKE70,TE7#..LB198001-198106

sub61706-12940

sub58709-12040

sub61736-12121

main61706-12939iKE70,TE71..CP198105-198305

main61706-12940iKE70,TE7#..LB198106-198406

main61706-13904iKE70..WG..2D197908-198707

main61706-13904iKE70..RHD..4F..STD..GEN198305-198707

GLASS,SHORT FLOOR

main61706-13905iAE71,CE70,KE70,TE71..DV197908-198707

main61706-13907iKE70,TE71..WG..4D..(EUR,GEN,SA,SAA)197908-198707

main61706-13909iKE70..RHD..4F..XL198508-198707

KENYA SPEC

main61706-13910iAE71..SA198508-198707

W/TONNEAU COVER

61733APANEL, ROOF SIDE, INNER FRONT RH

main61733-12070iAE71,CE70,KE70,TE71..(DV,SED,WG)..2D197908-198707

main61733-12080iKE70,TE7#..LB197908-198406

main61733-12090iKE70,TE71..CP197908-198305

61733BPANEL, ROOF SIDE, INNER REAR RH

main61735-12070iKE70,TE71..CP197908-197911

sub61735-12110

main61735-12080iKE70,TE7#..LB197908-198104

sub61735-12120

main61735-12090iAE71,CE70,KE70,TE7#..SED197908-198502

main61735-12110iKE70,TE71..CP197911-198305

main61735-12120iKE70,TE7#..LB198104-198406

main61735-13020iAE71,CE70,KE70,TE71..DV,WG197908-198707

61734APANEL, ROOF SIDE, INNER FRONT LH

main61734-12070iAE71,CE70,KE70,TE71..(DV,SED,WG)..2D197908-198707

main61734-12080iKE70,TE7#..LB197908-198406

main61734-12090iKE70,TE71..CP197908-198305

61734BPANEL, ROOF SIDE, INNER REAR LH

main61736-12070iKE70,TE71..CP197908-197911

main61736-12080iKE70,TE7#..LB197908-198104

sub61736-12120

main61736-12090iAE71,CE70,KE70,TE7#..SED197908-198502

main61736-12110iKE70,TE71..CP197911-198105

main61736-12111iKE70,TE71..CP198105-198305

main61736-12120iKE70,TE7#..LB198104-198106

main61736-12121iKE70,TE7#..LB198106-198406

main61736-13020iAE71,CE70,KE70,TE71..DV,WG197908-198707

64211STRAINER, PACKAGE TRAY TO FLOOR, RH

main64211-12020iAE71,CE70,KE70,TE7#..SED197908-198502

64212STRAINER, PACKAGE TRAY TO FLOOR, LH

main64212-12020iAE71,CE70,KE70,TE7#..SED197908-198502

9095001030

main90950-01030

9095006003

main90950-06003

35 parts on this diagram · 6 diagrams in section
