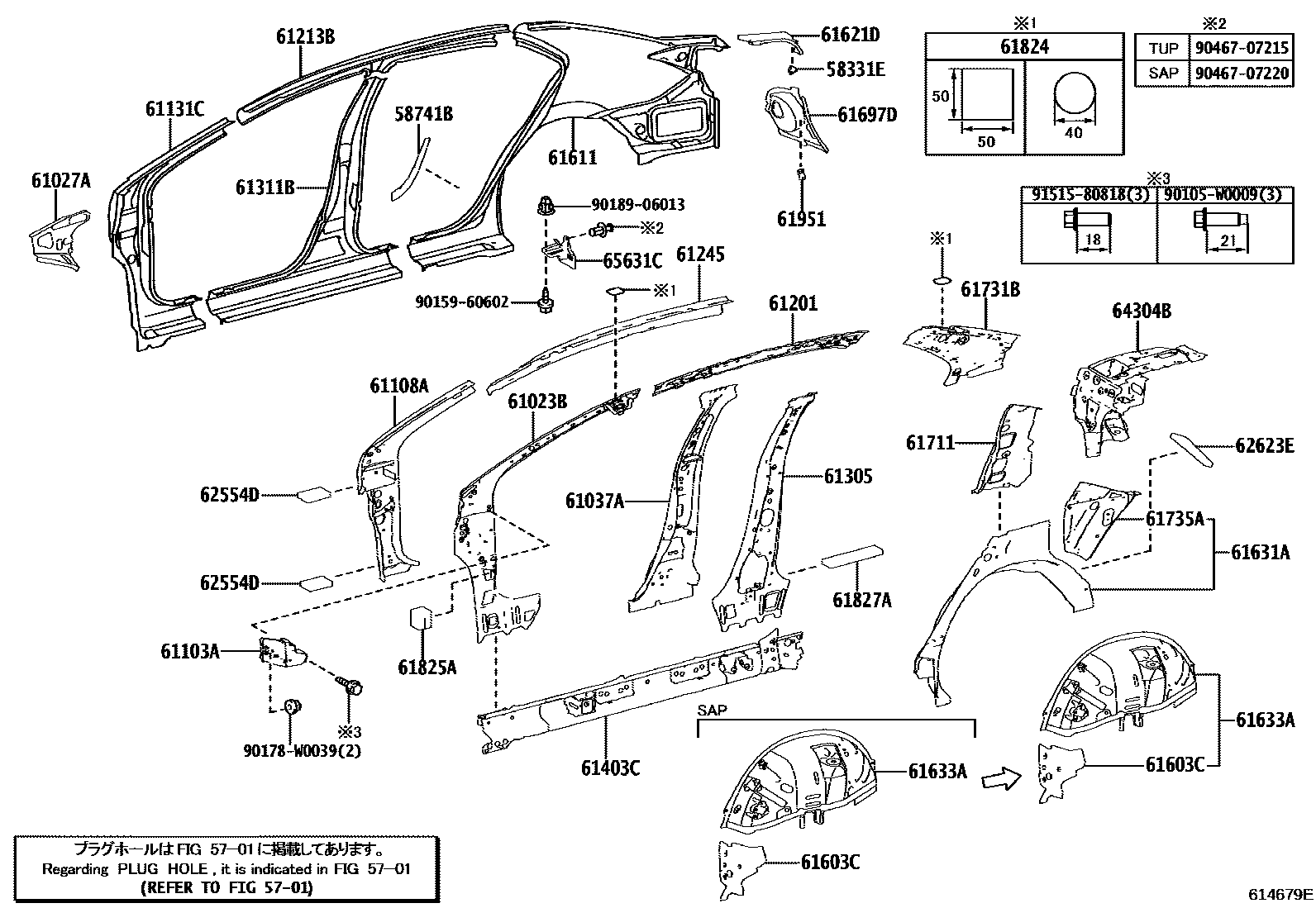

Toyota COROLLA — SIDE MEMBER
5701
58331EBRACKET, LUGGAGE COMPARTMENT TRIM, NO.1
58741BPROTECTOR, QUARTER PANEL, RH
ANTI-CHIPPING TAPE-WITH(REAR DOOR & QUARTER)
ANTI-CHIPPING TAPE-WITH(REAR DOOR & QUARTER)
61023BPILLAR SUB-ASSY, FRONT BODY, INNER RH
61027APILLAR SUB-ASSY, FRONT BODY, OUTER RH
61037AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH
61103AREINFORCEMENT SUB-ASSY, COWL SIDE, RH
61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH
61131CPILLAR, FRONT BODY, OUTER RH
61201RAIL SUB-ASSY, ROOF SIDE, RH
61213BRAIL, ROOF SIDE, OUTER NO.2 RH
61245REINFORCEMENT, ROOF SIDE RAIL, OUTER RH
61305REINFORCE SUB-ASSY, CENTER BODY PILLAR, LOWER RH
61311BPILLAR, CENTER BODY, OUTER RH
61403CREINFORCE SUB-ASSY, ROCKER, OUTER RH
61603CPANEL SUB-ASSY, QUARTER WHEEL HOUSE, RH
61611PANEL, QUARTER, RH
61621DTROUGH, BACK DOOR OPENING, RH
61631APANEL, QUARTER WHEEL HOUSE, OUTER RH
61633APANEL, QUARTER WHEEL HOUSE, INNER RH
SEAT COVER MATERIAL-FABRIC
61697DHOUSING, QUARTER PANEL END, RH
61711PANEL, ROOF SIDE, OUTER RH
61731BPANEL, ROOF SIDE, INNER RH
61735APANEL, ROOF SIDE, INNER REAR RH
61824PLATE, NOISE CONTROL, NO.1
(L),50 X 50
(J),50 X 50
OD=40
61825APLATE, NOISE CONTROL, NO.2
61827APLATE, NOISE CONTROL, NO.4
61951BRACKET, SIDE TRIM, RH
62554DPAD, FRONT PILLER
62623EPAD, QUARTER WHEEL HOUSE, INNER REAR RH
64304BREINFORCE SUB-ASSY, PACKAGE TRAY BRACKET, RH
SEAT COVER MATERIAL-FABRIC
65631CPLATE, REAR WHEEL HOUSE, FRONT RH
90105W0009
main90105-W0009
9015960602
main90159-60602
90178W0039
main90178-W0039
9018906013
main90189-06013
9046707215
main90467-07215
9046707220
main90467-07220
9151580818
main91515-80818
39 parts on this diagram · 2 diagrams in section
