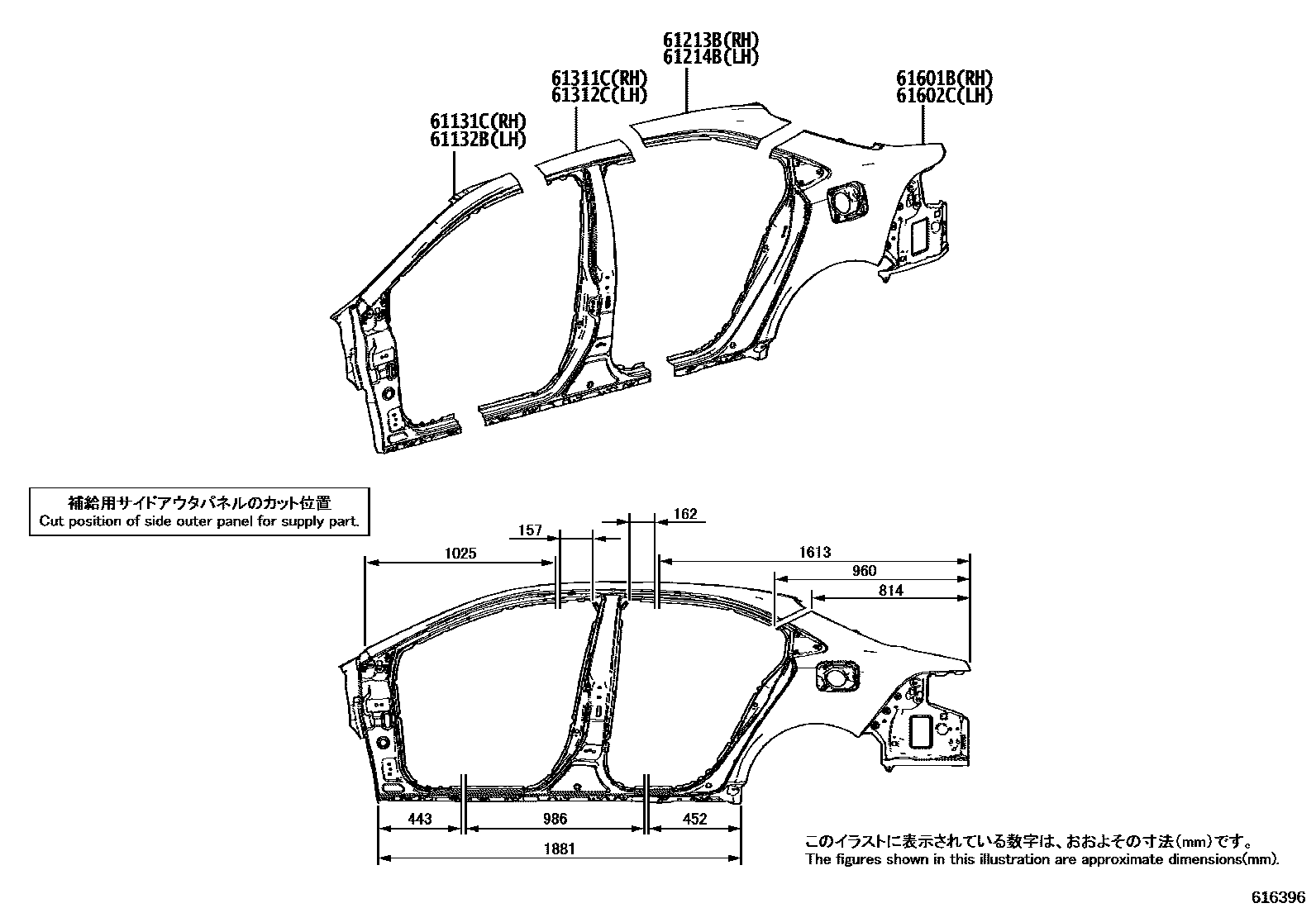

Toyota COROLLA — SIDE MEMBER

0001 1OUTER PANEL 0002 1INNER PANEL, LH 0003 1INNER PANEL, RH

61131CPILLAR, FRONT BODY, OUTER RH

main61131-02450iNRE210,ZWE211201908-202002

main61131-02451iNRE210..HI202003-202006

61132BPILLAR, FRONT BODY, OUTER LH

main61132-02470iNRE210,ZWE211201908-202002

main61132-02471iMZEA11,ZWE211202003-202304

61213BRAIL, ROOF SIDE, OUTER NO.2 RH

main61213-02280iNRE210,ZWE211201908-202002

main61213-02281iNRE210..HI202003-202006

61214BRAIL, ROOF SIDE, OUTER NO.2 LH

main61214-02290iNRE210,ZWE211201908-202002

main61214-02291iMZEA17,ZWE219202305

61311CPANEL, REAR BODY FRONT OUTSIDE, RH

main61311-02390iMZEA11,ZWE211201908-202304

61312CPANEL, REAR BODY FRONT OUTSIDE, LH

main61312-02390iNRE210..HI201908-202006

61601BPANEL SUB-ASSY, QUARTER, RH

main61601-02590iNRE210..HI201908-202006

61602CPANEL SUB-ASSY, QUARTER, LH

main61602-02620iNRE210..HI201908-202006

8 parts on this diagram · 3 diagrams in section
