Toyota COROLLA — SIDE MEMBER

53707GEXTENSION SUB-ASSY, FRONT FENDER APRON, FRONT RH

main53707-02020i201308-201608

53821BBRACKET, FRONT FENDER, REAR RH

main53821-02030i201308-201608

55713CPANEL, COWL TOP SIDE, RH

main55713-02130i201308-201608

5701HOLE PLUG

→ Go to FIG 57-01

58745PROTECTOR, QUARTER PANEL, FRONT RH

main58741-02170i201308-201608

61023BPILLAR SUB-ASSY, FRONT BODY, INNER RH

main61023-02280i201308-201608

main61023-02340i201608

61037AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH

main61037-02210i201308-201608

61061REINFORCEMENT SUB-ASSY, WHEEL HOUSE, RH

main61061-02070i201308-201608

61103AREINFORCEMENT SUB-ASSY, COWL SIDE, RH

main61103-02250i201308-201608

61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH

main61108-02192i201308-201608

61131PILLAR, FRONT BODY, UPPER OUTER RH

main61131-02310i201308-201608

61201RAIL SUB-ASSY, ROOF SIDE, RH

main61201-02200i201308-201608

main61201-02270i201608

61203DRAIL SUB-ASSY, ROOF SIDE, OUTER NO.2 RH

main61203-02140i201308-201608

main61203-02903i201608

61213BRAIL, ROOF SIDE, OUTER NO.2 RH

main61213-02100i201308-201608

61305REINFORCE SUB-ASSY, CENTER BODY PILLAR, LOWER RH

main61305-02110i201308-201608

61403CREINFORCE SUB-ASSY, ROCKER, OUTER RH

main61403-02901i201308-201608

61411PANEL, ROCKER, OUTER RH

main61311-02300i201308-201608

61503BREINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, RH

main61503-02140i201308-201608

61603CPANEL SUB-ASSY, QUARTER WHEEL HOUSE, RH

main61603-02220i201308-201608

61605EPANEL, QUARTER, RH

main61605-02110i201308-201608

61607HPANEL SUB-ASSY, QUARTER WHEEL HOUSE, INNER RH

main61607-02640i201308-201608

61611PANEL, QUARTER, RH

main61601-02410i201308-201608

61615GREINFORCEMENT, REAR BODY REAR SIDE PANEL, RH

main61615-02090i201308-201608

61619DREINFORCEMENT, QUARTER PANEL, RH

main61619-02010i201308-201608

61631APANEL, QUARTER WHEEL HOUSE, OUTER RH

main61631-02170i201308-201608

61667CSEAL, QAURTER PANEL, NO.1

main61667-02090i201308-201608

61697DHOUSING, QUARTER PANEL END, RH

main61697-02912i201308-201608

61731BPANEL, ROOF SIDE, INNER RH

main61731-02260i201308-201608

main61731-02261i201608

61735APANEL, ROOF SIDE, INNER REAR RH

main61735-02160i201308-201608

61815DCOVER, ROOF SIDE

main61815-02060i201308-201608

61822BPLATE, NOISE CONTROL

main61824-02190i201308-201608

61824DPLATE, NOISE CONTROL, NO.1

main61824-02190i201308-201608

61825APLATE, NOISE CONTROL, NO.2

main61825-02070i201308-201608

61826APLATE, NOISE CONTROL, NO.3

main61824-02270i201308-201608

61827APLATE, NOISE CONTROL, NO.4

main61827-02060i201308-201608

61951BRACKET, SIDE TRIM, RH

main61951-02050i201308-201608

64304BREINFORCE SUB-ASSY, PACKAGE TRAY BRACKET, RH

main64304-02150i201308-201608

90105A0233

main90105-A0233

90182A0021

main90182-A0021

9054111010

main90541-11010

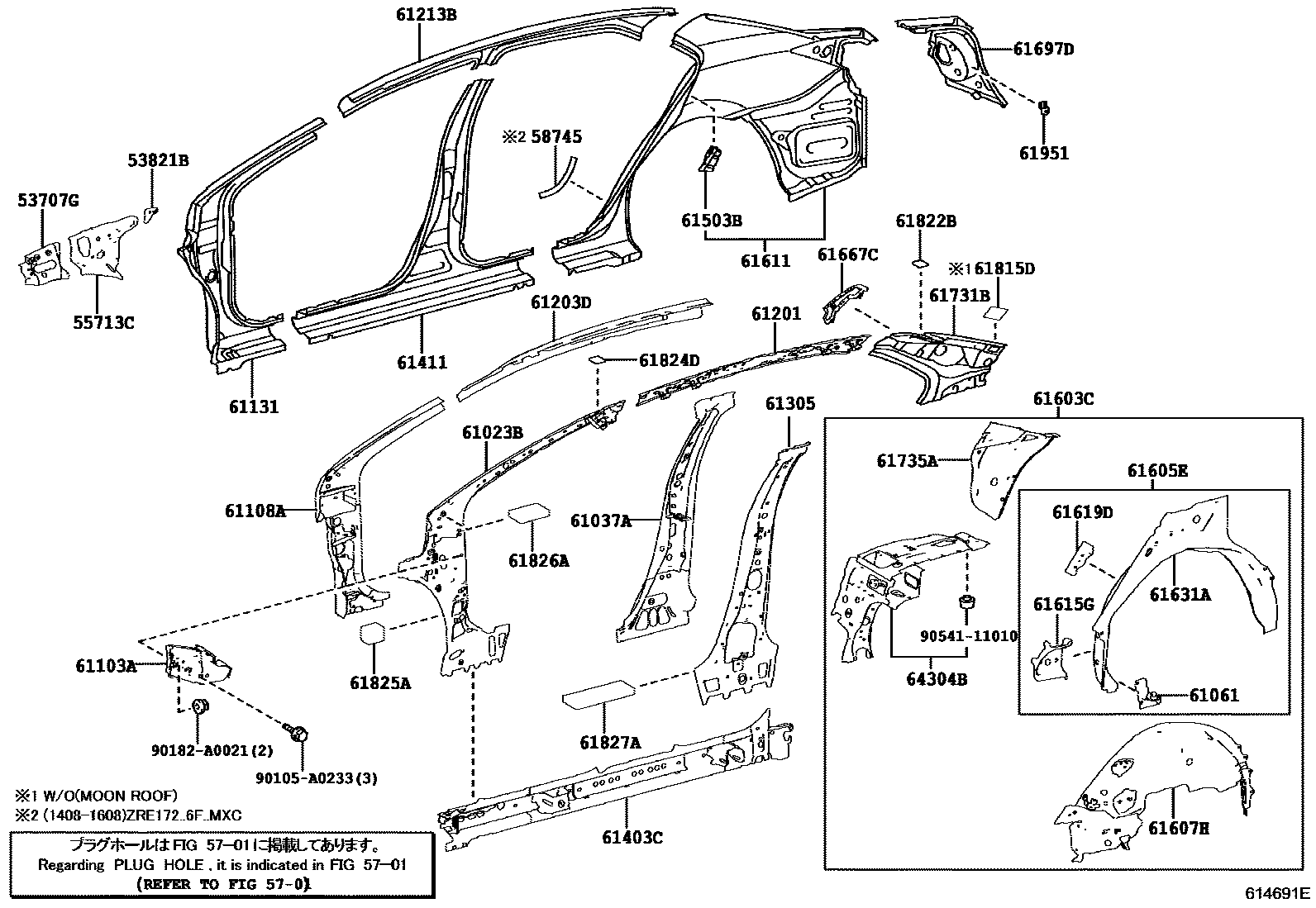

40 parts on this diagram · 2 diagrams in section

SIDE MEMBER for Toyota COROLLA

This section contains 74 genuine Toyota parts for the SIDE MEMBER system of the Toyota COROLLA. Key components include: EXTENSION SUB-ASSY, FRONT FENDER APRON, FRONT RH, EXTENSION SUB-ASSY, FRONT FENDER APRON, FRONT LH, BRACKET, FRONT FENDER, REAR RH, BRACKET, FRONT FENDER, REAR LH, PANEL, COWL TOP SIDE, RH.
