Toyota COROLLA — SHIFT LEVER & RETAINER

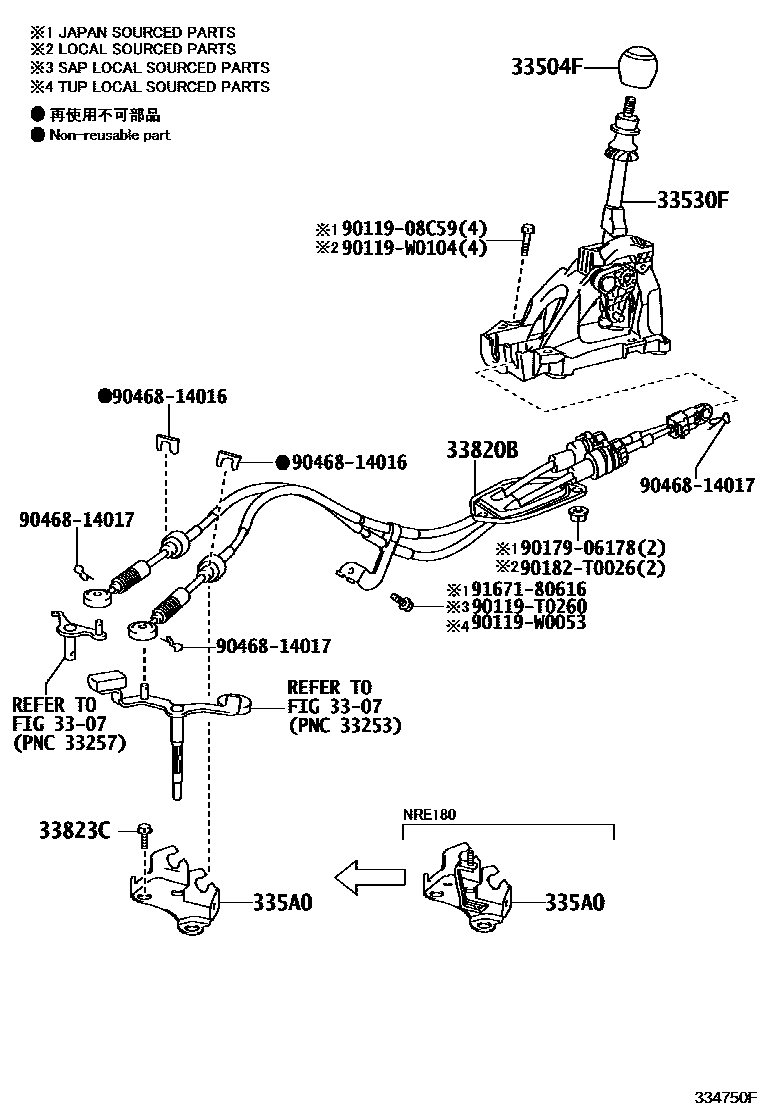

Parts diagram
3307
33504FKNOB SUB-ASSY, SHIFT LEVER
main33504-02501-C3i201606-201808
BLACK,TRIM0#,2#
main33504-02650-C1i201306-201504
STEERING WHEEL-3-SPOKE,LEATHER,BLACK & BLACK ME.,TRIM0#,2#
main33504-02651-C3supersedes 33504-05081-C2i201505-201605
EU BLACK & BLACK ME.,TRIM0#,2#
main33504-02651-C4i201912
BLACK,TRIM2#,3#
main33504-02660-C0i201401-201504
BLACK & MD.SILVER,TRIM2#
main33504-02661-C1i201505-201701
EU BLACK & MD.SILVER,TRIM0#,2#
main33504-02670-C2i201606-201808
BLACK,TRIM0#,2#
main33504-05081-C2i201401-201701
BLACK & 21GY18,TRIM2#
main33504-05081-C5i201912
BLACK,TRIM2#
main33504-12510-C1i201401-201701
BLACK,TRIM2#
main33542-12360-C0i201912
BLACK,TRIM2#,3#
main33542-12500-C0i201912
BLACK,TRIM2#
33530FLEVER ASSY, SHIFT (FOR FLOOR SHIFT)
main33530-05110i201606-201808
335A0BRACKET ASSY, CONTROL CABLE
main335A0-0D010i201912
main335A0-0D020i201401-201701
33820BCABLE ASSY, TRANSMISSION CONTROL
main33820-02810i201606-201802
main33820-02811i201803-201808
main33820-05320i201505-201605
main33820-05321i201803-201912
main33820-05360i201306-201504
sub33820-05361
main33820-20A50i201606-201912
33823BRACKET, TRANSMISSION CONTROL CABLE, NO.1
main33823-12190i201401-201701
33823CBOLT (FOR TRANSMISSION CONTROL CABLE BRACKET)
main90119-08079×2i201401-201701
(J)
main90119-08C60×3i201606-201901
(J)
main90119-W0016×2i201606-201912
(L)
sub90119-08026
main90119-W0255×3i201508-201605
(L)
9011908C59
main90119-08C59
90119T0260
main90119-T0260
90119W0053
main90119-W0053
90119W0104
main90119-W0104
9017906178
main90179-06178
90182T0026
main90182-T0026
9046814016
main90468-14016
9046814017
main90468-14017
9167180616
main91671-80616

16 parts on this diagram · 5 diagrams in section
