Toyota COROLLA — SHIFT LEVER & RETAINER

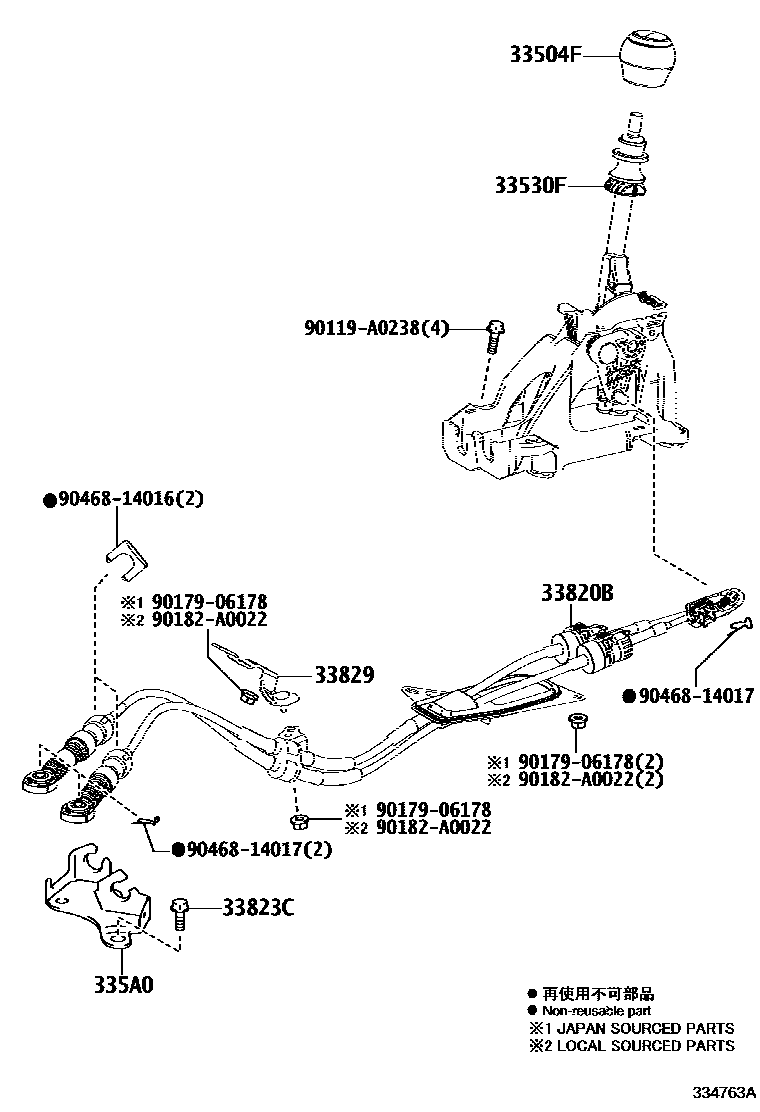

Parts diagram

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-02400-C0i201308-201408

BLACK,TRIM1#

main33504-06080-C0i201308-201408

BLACK,TRIM0#,1#,2#,4#; BLACK,TRIM2#,4#,8#

main33504-12590-C1i201308-201608

BLACK & BLACK ME.,TRIM1#; BLACK & BLACK ME.,TRIM2#,4#,8#

main33504-12590-C2i201608

BLACK,TRIM0#,1#,2#; BLACK,TRIM1#; BLACK,TRIM2#,4#,8#

main33542-02190-C0i201404-201608

BLACK,TRIM0#,1#,4#; BLACK,TRIM1#; BLACK,TRIM2#,4#,8#

main33542-02370-C0i201608

BLACK,TRIM0#,1#,2#; BLACK,TRIM1#; BLACK,TRIM2#,4#,8#

33530FLEVER ASSY, SHIFT (FOR FLOOR SHIFT)

main33530-12C40i201308-201608

335A0BRACKET ASSY, CONTROL CABLE

main335A0-12020i201308-201511

main335A0-12021i201511-201608

33820BCABLE ASSY, TRANSMISSION CONTROL

main33820-02850i201608

main33820-02860i201608

main33820-02A40i201308-201408

33823BRACKET, TRANSMISSION CONTROL CABLE, NO.1

main33823-02100i201308-201408

main33823-02200i201404-201608

33823CBOLT (FOR TRANSMISSION CONTROL CABLE BRACKET)

main90119-08C60×3i201308-201608

main90119-A0234×2i201404-201608

33829SUPPORT, TRANSMISSION CONTROL CABLE

main33829-02070i201608

main33829-02080i201308-201408

NO.1

main33829-02260i201308-201608

90119A0238

main90119-A0238

9017906178

main90179-06178

90182A0022

main90182-A0022

9046814016

main90468-14016

9046814017

main90468-14017

12 parts on this diagram · 3 diagrams in section

SHIFT LEVER & RETAINER for Toyota COROLLA

This section contains 24 genuine Toyota parts for the SHIFT LEVER & RETAINER system of the Toyota COROLLA. Key components include: KNOB SUB-ASSY, SHIFT LEVER, LEVER ASSY, SHIFT (FOR FLOOR SHIFT), COVER, SHIFT LOCK RELEASE BUTTON, BOOT, SHIFT LEVER, UNIT ASSY, SHIFT LOCK CONTROL.
