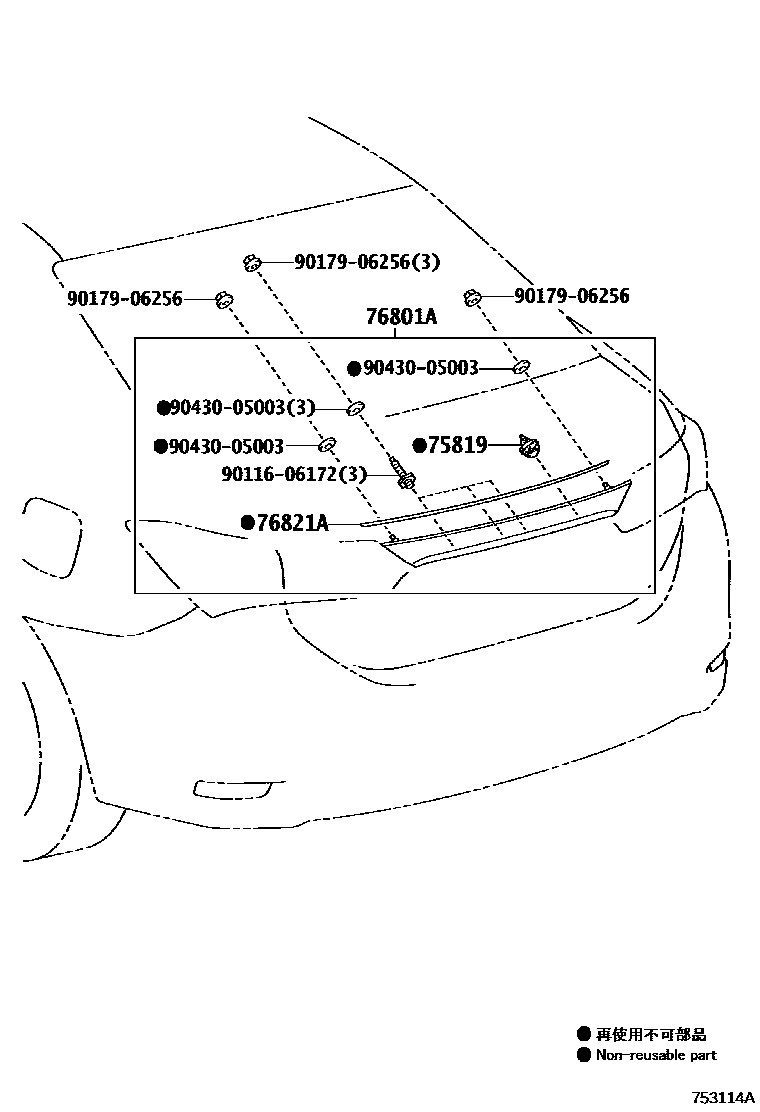

Toyota COROLLA — REAR MOULDING

75819CLIP, LUGGAGE COMPARTMENT DOOR MOULDING

main75819-33010i201912

76801AGARNISH SUB-ASSY, LUGGAGE COMPARTMENT DOOR, OUTSIDE

main76801-02905i201701-201912

PAINT REQ.

main76801-02935supersedes 76801-02937i201912

PAINT REQ.

main76801-02A80i201306-201410

PLATED

main76801-02A82i201410-201605

PLATED

main76801-02A83i201608-201808

PLATED

main76801-02B40i201401-201701

PLATED

main76811-02954i201606-201808

PAINT REQ.

main76801-02906i201701-201912

PAINT REQ.,WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM)&AIR CONDITIONER-AUTO AIR CONDITIONER&SRS AIR BAG-WITH(*DRS & *PAS & SIDE & *CUSA)&AUDIO(OVERSEAS MARKET)-*DA& DVD & *BT & USB & 6SPEAKER; PAINT REQ.,WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM)&INTERMITTENT WIPER-WITH(AUTO)&AIR CONDITIONER-AUTO AIR CONDITIONER&SRS AIR BAG-WITH(*DRS & *PAS & SIDE & *CUSA & KNEE)&AUDIO(OVERSEAS MARKET)-*DA & DVD & *BT & USB & 6SPEAKER

main76801-02936i202101

PAINT REQ.,STARTING SYSTEM-PUSH START SWITCH

main76801-02938i202101-202207

PAINT REQ.,STARTING SYSTEM-PUSH START SWITCH&AUDIO-CD & *BT & USB & 6SPEAKER

main76801-02A90i201306-201406

PLATED,AUDIO-*DA & *BT & USB & 6SPEAKER

main76801-02A92i201410-201701

PLATED,WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM)&AIR CONDITIONER-AUTO AIR CONDITIONER&SRS AIR BAG-WITH(*DRS & *PAS & SIDE & *CUSA & KNEE)&AUDIO-*DA & DVD & *BT &USB & 6SPEAKER; PLATED,WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM)&AUDIO-*DA & DVD & *BT & USB & 6SPEAKER

main76801-02A93i201701-201912

PLATED,WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM)&AIR CONDITIONER-AUTO AIR CONDITIONER&SRS AIR BAG-WITH(*DRS & *PAS & SIDE & *CUSA)&AUDIO(OVERSEAS MARKET)-*DA & DVD & *BT & USB & 6SPEAKER; PLATED,WIRELESS DOOR LOCK-WITH(SMART ENTRY SYSTEM)&INTERMITTENT WIPER-WITH(AUTO)&AIR CONDITIONER-AUTO AIR CONDITIONER&SRS AIR BAG-WITH(*DRS & *PAS & SIDE & *CUSA &KNEE)&AUDIO(OVERSEAS MARKET)-*DA & DVD & *BT & USB & 6SPEAKER

main76801-02B50i201401-201701

PLATED,AUDIO-*DA & DVD & *BT & USB & 6SPEAKER

76821APROTECTOR, LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH

main76825-02160i201606-201912

main76825-02200i201912

main76825-02290i201606-201808

9011606172

main90116-06172

9017906256

main90179-06256

9043005003

main90430-05003

6 parts on this diagram · 7 diagrams in section

REAR MOULDING for Toyota COROLLA

This section contains 16 genuine Toyota parts for the REAR MOULDING system of the Toyota COROLLA. Key components include: CLIP, LUGGAGE COMPARTMENT DOOR MOULDING, GARNISH SUB-ASSY, LUGGAGE COMPARTMENT DOOR, OUTSIDE, GARNISH, LUGGAGE COMPARTMENT DOOR, OUTSIDE NO.2, PROTECTOR, LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH, RETAINER, BACK DOOR GARNISH, NO.2.
