Toyota COROLLA — REAR DOOR LOCK & HANDLE
69037COVER SUB-ASSY, REAR DOOR LOCK, RH
69038ACOVER SUB-ASSY, REAR DOOR LOCK, LH
69050ALOCK ASSY, REAR DOOR W/MOTOR, RH
69060ALOCK ASSY, REAR DOOR W/MOTOR, LH
69203AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH
69204AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH
69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH
IVORY,TRIM0#
FLAXEN,TRIM0#,(L)
GRAY,TRIM1#
BLACK,TRIM1#; BLACK,TRIM2#; BLACK,TRIM2#,4#,8#
BLACK,TRIM1#
69205CCUSHION(FOR REAR DOOR INSIDE HANDLE)
69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH
IVORY,TRIM0#
FLAXEN,TRIM0#,(L)
GRAY,TRIM1#,(L)
BLACK,TRIM1#; BLACK,TRIM2#; BLACK,TRIM2#,4#,8#
BLACK,TRIM1#
69227JCOVER, REAR DOOR OUTSIDE HANDLE, RH
SUPER WHITE 2,040
SILVER ME.,1F7
GRAY ME.,1F9
GRAY ME.,1G2
BLACK MC.,209
BLACKISH AGEHA GF.,221
RED M.M.,3R3
AVANT-GARDE BRONZE ME.,4V8
GREEN M.M.,6W3
DK.BLUE M.M.,8W7
69227LCOVER, REAR DOOR OUTSIDE HANDLE, LH
SUPER WHITE 2,040
SILVER ME.,1F7
GRAY ME.,1F9
GRAY ME.,1G2
BLACK MC.,209
BLACKISH AGEHA GF.,221
RED M.M.,3R3
AVANT-GARDE BRONZE ME.,4V8
GREEN M.M.,6W3
DK.BLUE M.M.,8W7
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
SUPER WHITE 2,040
SILVER ME.,1F7
GRAY ME.,1F9
GRAY ME.,1G2
BLACK MC.,209
BLACKISH AGEHA GF.,221
RED M.M.,3R3
AVANT-GARDE BRONZE ME.,4V8
GREEN M.M.,6W3
DK.BLUE M.M.,8W7
69230CBUSH(FOR REAR DOOR OUTSIDE HANDLE)
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
SUPER WHITE 2,040
SILVER ME.,1F7
GRAY ME.,1F9
GRAY ME.,1G2
BLACK MC.,209
BLACKISH AGEHA GF.,221
RED M.M.,3R3
AVANT-GARDE BRONZE ME.,4V8
GREEN M.M.,6W3
DK.BLUE M.M.,8W7
69241GPAD, REAR DOOR OUTSIDE HANDLE, FRONT
RH
LH
69242GPAD, REAR DOOR OUTSIDE HANDLE, REAR
RH
LH
69283GPLUG, REAR DOOR INSIDE HANDLE BEZEL
IVORY,TRIM0#
FLAXEN,TRIM0#
GRAY,TRIM1#
BLACK,TRIM1#; BLACK,TRIM2#; BLACK,TRIM2#,4#,8#
69318DSEAL, DOOR LOCK WIRING HARNESS
69410BPLATE ASSY, REAR DOOR LOCK STRIKER
69730DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH
69740DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH
69770BCABLE ASSY, REAR DOOR INSIDE LOCKING, RH
69780BCABLE ASSY, REAR DOOR INSIDE LOCKING, LH
692370T010RETAINER, DOOR OUTSIDE HANDLE
main69237-0T010
6929602020SCREW, DOOR INSIDE HANDLE
main69296-02020
6929606070SCREW, DOOR INSIDE HANDLE
main69296-06070
9008016097
main90080-16097
90148A0017
main90148-A0017
90148A0022
main90148-A0022
9015940202
main90159-40202
9018905003
main90189-05003
31 parts on this diagram · 1 diagram in section

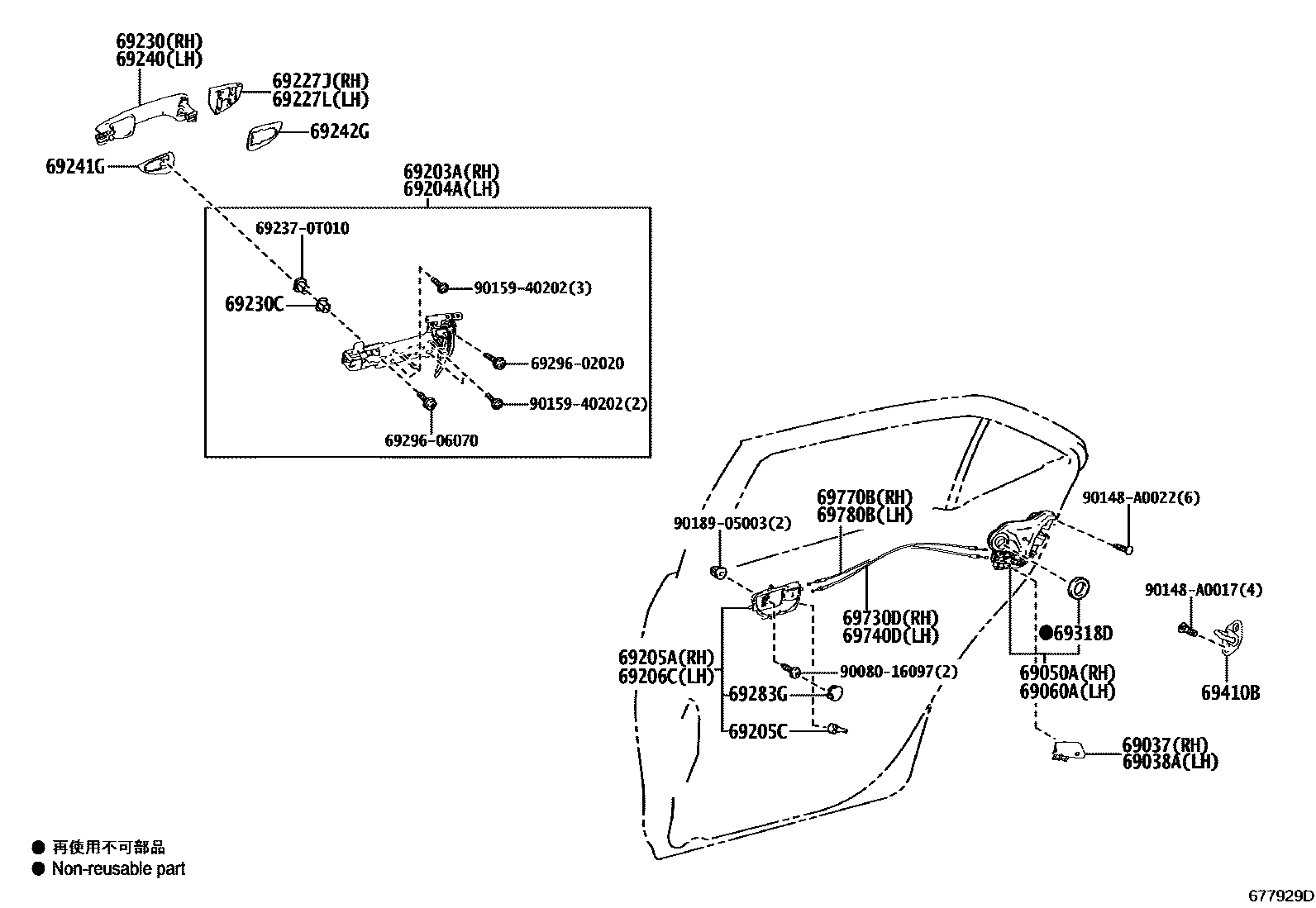

REAR DOOR LOCK & HANDLE for Toyota COROLLA
This section contains 31 genuine Toyota parts for the REAR DOOR LOCK & HANDLE system of the Toyota COROLLA. Key components include: COVER SUB-ASSY, REAR DOOR LOCK, RH, COVER SUB-ASSY, REAR DOOR LOCK, LH, LOCK ASSY, REAR DOOR W/MOTOR, RH, LOCK ASSY, REAR DOOR W/MOTOR, LH, FRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH.
