Toyota COROLLA — PARTIAL ENGINE ASSEMBLY

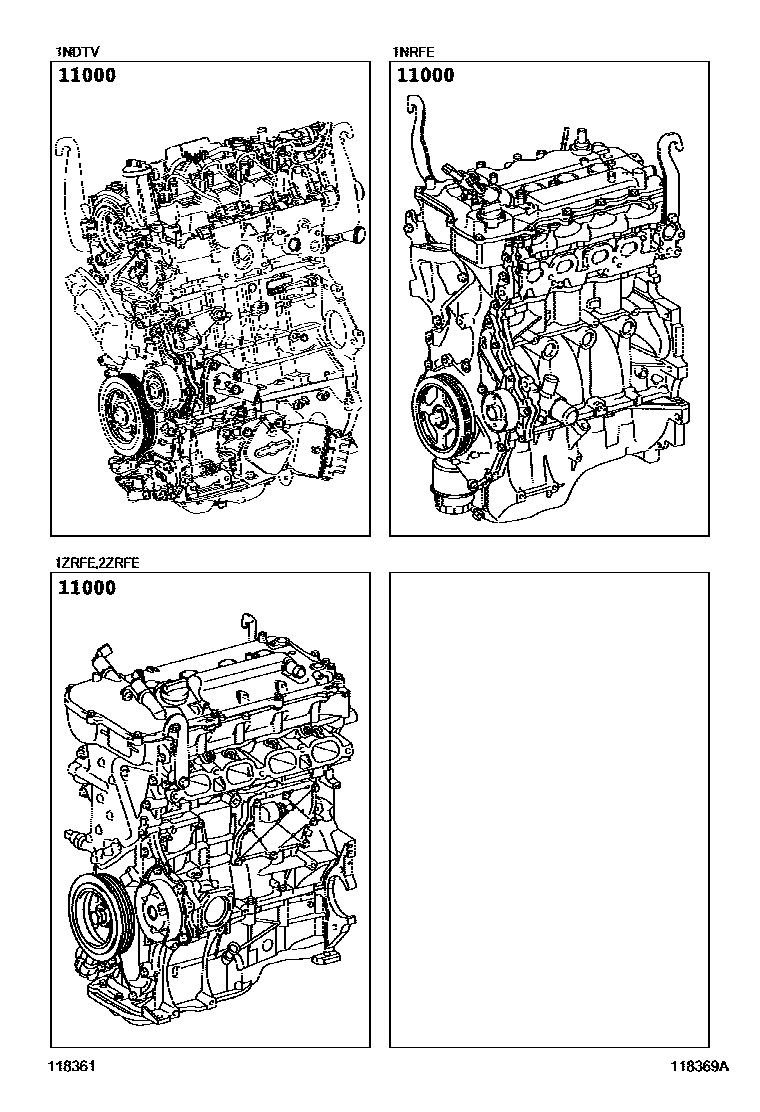

Parts diagram

11000ENGINE ASSY, PARTIAL

main19000-0N061i201606-201901

main19000-0T080i201401-201505

main19000-0T082i201606-201901

main19000-0T100i201401-201505

main19000-0T102i201912

main19000-47340i201606-201808

1 parts on this diagram · 1 diagram in section
