Toyota COROLLA — PARTIAL ENGINE ASSEMBLY

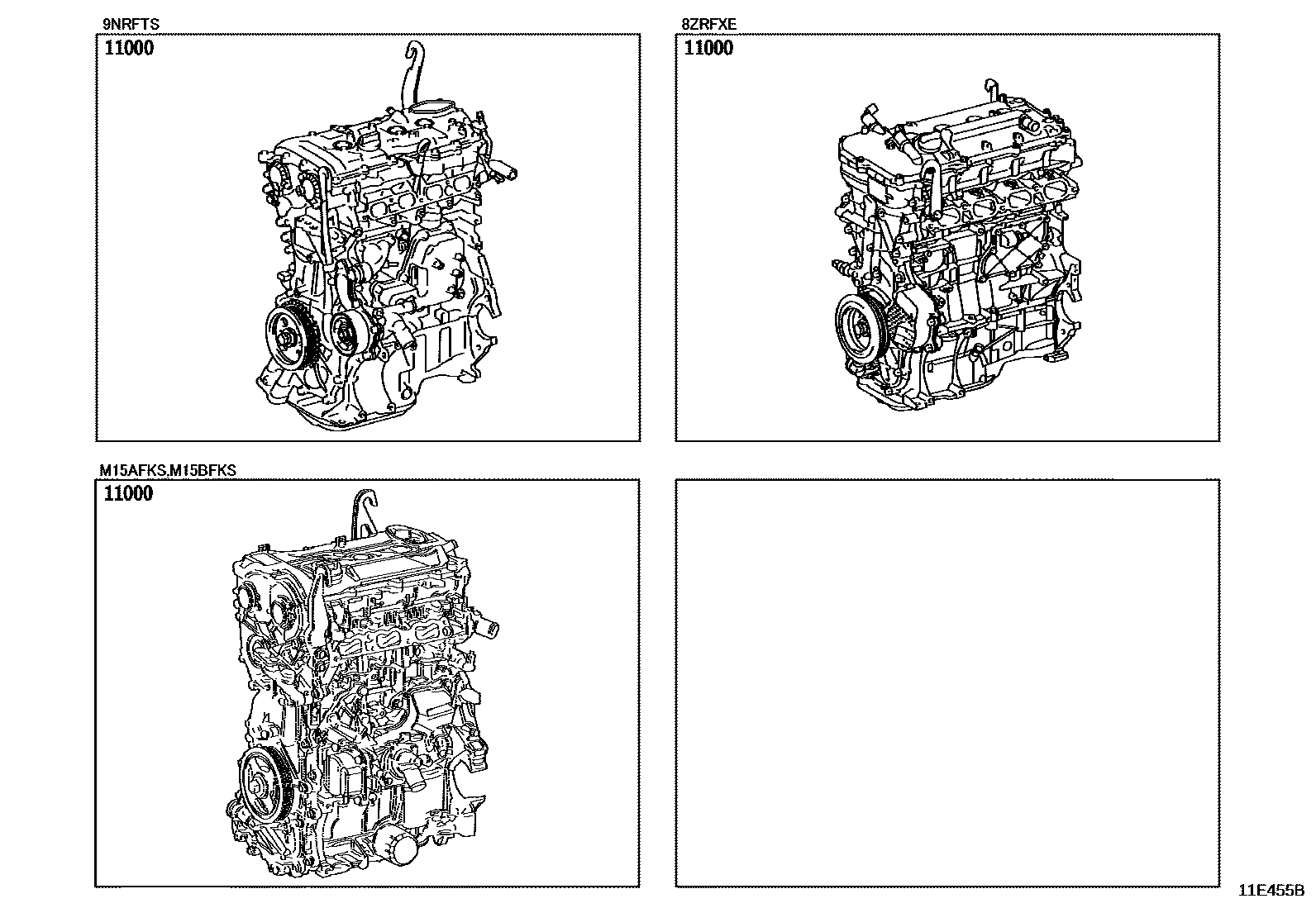

Parts diagram

11000ENGINE ASSY, PARTIAL

main19000-0T740i201908-202304

main19000-0T870i202305

main19000-0Y320i202007

*662

main19000-15390i202101-202304

*616

main19000-47520supersedes 19000-0Y320i202007-202304

*602

main19000-F3030i202101-202304

*665

1 parts on this diagram · 1 diagram in section
